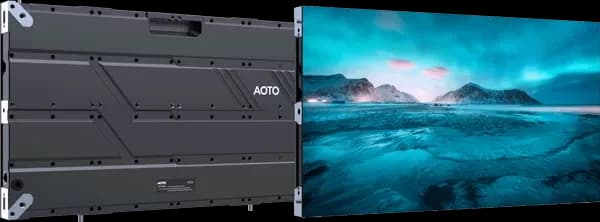

AOTO CVMS1.8 specs
CV MIP Series is equipped with AOTO self-developed MIP technology, utilizing LED light-emitting chips ranging from 50um to 100um to achieve superior fine pixel pitch display. In combination with flip chip and common-cathode technologies, the product ensures higher reliability and lower power consumption. Multiple coatings on the screen surface enhance color and black consistency while offering low glare, low reflection, and minimal moiré effects, delivering a more comfortable visual experience for users.
Physical
- Pixel pitch
- 1.875 mm
- Cabinet size (W×H×D)
- 600 × 338 × 38 mm
- Weight
- 5.2 kg
- Weight per m²
- 25.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 320 × 180 px (16:9)
- Pixel density
- 284,444 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 35,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- MIP
Power & thermal
- Max power
- 70 W
- Average power
- 30 W
- Max power per m²
- 346 W/m²
- Average power per m²
- 148 W/m²
- Thermal load
- 239 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Power supply
- AC100-240V 50/60Hz
- Site category
- Fixed Installation
- Pitch published
- 1.875mm
- Cabinet material
- die-cast aluminium, black
- Operating humidity
- 10-90% RH
- Pixel configuration
- MIP 1R1G1B
All variations in the CV MIP series
All AOTO cabinets →Every AOTO CV MIP series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO CVMS0.90.9375 mm600×338 mm1,000 nits
- AOTO CVMS1.21.25 mm600×338 mm1,000 nits
- AOTO CVMS1.51.5625 mm600×338 mm1,000 nits
- CVMS1.8this model1.875 mm600×338 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 57,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
4,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
4,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,447cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO CVMS1.8 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO CVMS1.8 draw?
- Each AOTO CVMS1.8 cabinet draws up to 70 W at full white and about 30 W with typical content — 346 W/m² max. A 10-cabinet wall therefore needs up to 700 W plus headroom.
- What is the resolution of the AOTO CVMS1.8?
- One cabinet is 320 × 180 pixels at a 1.875 mm pixel pitch (284,444 px/m²). About 12 cabinets side by side reach 4K width (≈ 7.20 m).
- How heavy is a AOTO CVMS1.8 wall?
- A single cabinet weighs 5.2 kg (25.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 78 kg before mounting structure.
- Is the AOTO CVMS1.8 suitable for outdoor use?
- No — the AOTO CVMS1.8 is an indoor cabinet (IP30 front). Its 1,000 nits suit controlled lighting, not direct sun.
