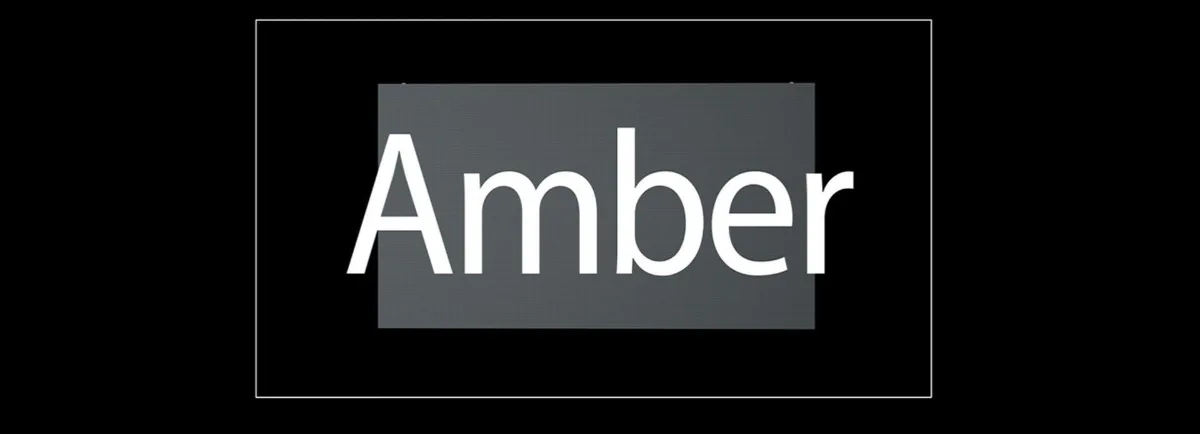

ROE Visual AB1.8 specs
AV integration with fine pitch video displays for demanding applications like corporate boardrooms, broadcast suites or control rooms just got easier. The Amber LED platform offers sophisticated NPP LED screens for environments where excellent visuals count.
Physical
- Pixel pitch
- 1.875 mm
- Cabinet size (W×H×D)
- 600 × 338 × 55 mm
- Weight
- 8.5 kg
- Weight per m²
- 42 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 320 × 180 px (16:9)
- Pixel density
- 284,444 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
- Processing depth
- 15 bit
Power & thermal
- Max power
- 170 W
- Average power
- 85 W
- Max power per m²
- 840 W/m²
- Average power per m²
- 420 W/m²
- Thermal load
- 580 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, FCC
Manufacturer details
- Scan rate
- 1/18
- Brochure url
- https://www.roevisual.com/uploads/assets/uploads/amber-brochure-june-26-2023.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 580 / 270
- Power published
- 170W / 85W
- Weight published
- 8.5kg / 18.7lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 1010
- Brightness published
- 800nits
- Dimensions published
- 600mm x 337.5mm x 55mm 23.6” x 13.2” x 2.1”
- Service access published
- Front
All variations in the Amber series
All ROE Visual cabinets →Every ROE Visual Amber series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual AB1.51.5625 mm600×338 mm800 nits
- AB1.8this model1.875 mm600×338 mm800 nits
Controllers that drive this panel
All controllers →Each cabinet carries 57,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
4,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
4,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,447cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual AB1.8 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual AB1.8 draw?
- Each ROE Visual AB1.8 cabinet draws up to 170 W at full white and about 85 W with typical content — 840 W/m² max. A 10-cabinet wall therefore needs up to 1,700 W plus headroom.
- What is the resolution of the ROE Visual AB1.8?
- One cabinet is 320 × 180 pixels at a 1.875 mm pixel pitch (284,444 px/m²). About 12 cabinets side by side reach 4K width (≈ 7.20 m).
- How heavy is a ROE Visual AB1.8 wall?
- A single cabinet weighs 8.5 kg (42 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 128 kg before mounting structure.
- Is the ROE Visual AB1.8 suitable for outdoor use?
- No — the ROE Visual AB1.8 is an indoor cabinet (IP40 front). Its 800 nits suit controlled lighting, not direct sun.
