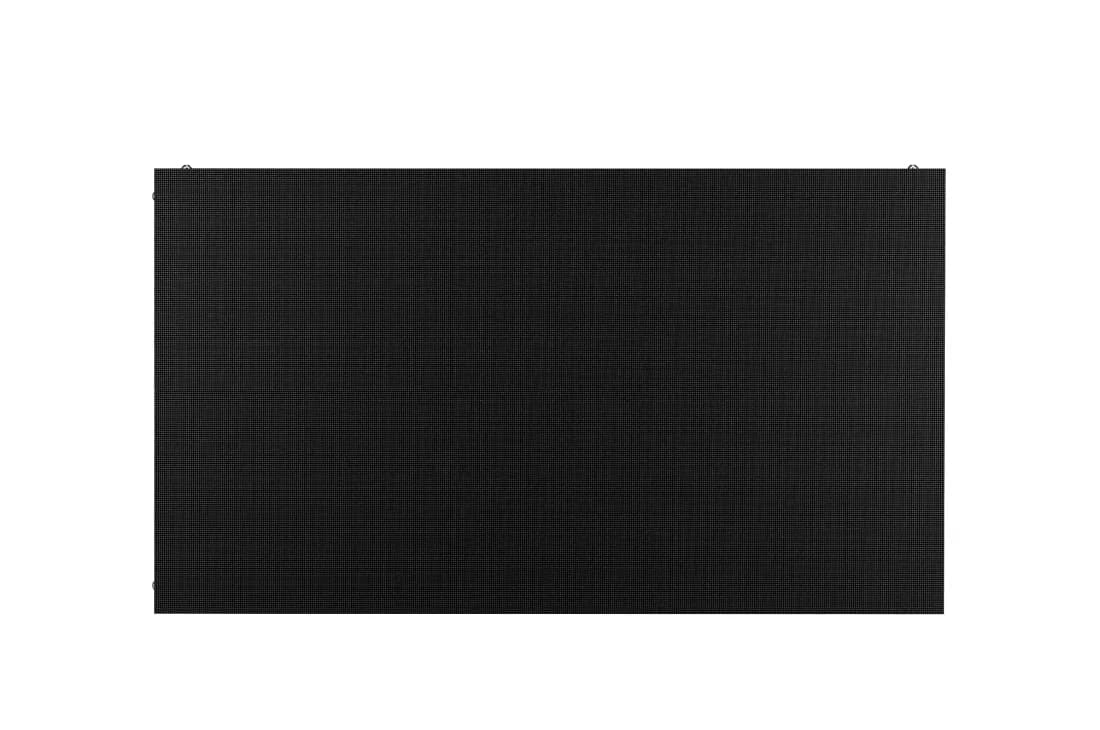

LG LSCB018 specs
Its ultra-slim design with 37.5 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed and utilized in any type of venues without restriction.
Physical
- Pixel pitch
- 1.88 mm
- Cabinet size (W×H×D)
- 600 × 338 × 34 mm
- Weight
- 5.3 kg
- Weight per m²
- 26.2 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 320 × 180 px (16:9)
- Pixel density
- 284,444 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 150 W
- Average power
- 50 W
- Max power per m²
- 741 W/m²
- Average power per m²
- 247 W/m²
- Thermal load
- 512 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -10 to 45 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- Ultra Slim Series
- Operating humidity
- 0 ~ 80%
- Pixel configuration
- Single SMD
All variations in the LSCB series
All LG cabinets →Every LG LSCB series cabinet and the exact pitch, size and brightness pairing it ships with.
- LG LSCB0121.25 mm600×338 mm800 nits
- LSCB018this model1.88 mm600×338 mm800 nits
- LG LSCB0252.5 mm600×338 mm800 nits
Controllers that drive this panel
All controllers →Each cabinet carries 57,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
4,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
4,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,447cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSCB018 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG LSCB018 draw?
- Each LG LSCB018 cabinet draws up to 150 W at full white and about 50 W with typical content — 741 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
- What is the resolution of the LG LSCB018?
- One cabinet is 320 × 180 pixels at a 1.88 mm pixel pitch (284,444 px/m²). About 12 cabinets side by side reach 4K width (≈ 7.20 m).
- How heavy is a LG LSCB018 wall?
- A single cabinet weighs 5.3 kg (26.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 80 kg before mounting structure.
- Is the LG LSCB018 suitable for outdoor use?
- No — the LG LSCB018 is an indoor cabinet (IP30 front). Its 800 nits suit controlled lighting, not direct sun.
