INFiLED ORAM8.3mk2 Pro mini specs

The high-transparency outdoor mesh rental display for creative stages and façades. At 70% transparency and just 15.5 kg per cabinet, it cuts wind resistance and rigging load — while calibrated 4000 nit brightness and 15.000:1 contrast keep content vivid in full daylight.

Pitch
8.33 mm
Size
1200×1200 mm1200×600 mm
Nits
3,500 nits4,000 nits
Open in calculatorCompareControllersRunning costDatasheet

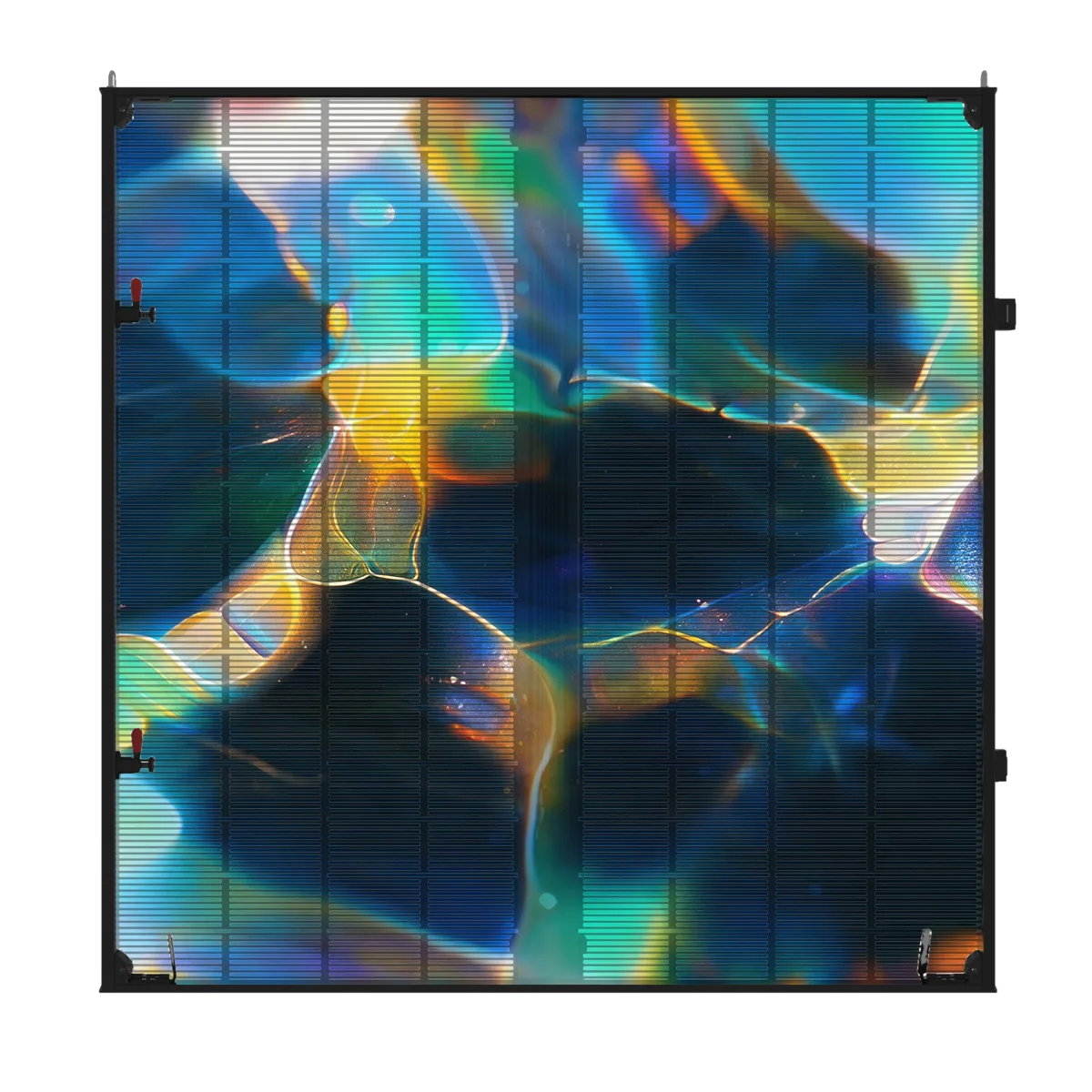

INFiLED ORAM8.3mk2 Pro mini LED cabinet

Physical

Pixel pitch
8.33 mm
Cabinet size (W×H×D)
1,200 × 600 × 55 mm
Weight
8.5 kg
Weight per m²
11.8 kg/m²
Cabinet type
Rental & staging
Service access
Front


Cabinet resolution
144 × 72 px (2:1)
Pixel density
14,400 px/m²
Brightness (calibrated)
4,000 nits
Refresh rate
3,840 Hz
Contrast
15,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
330 W
Average power
110 W
Max power per m²
458 W/m²
Average power per m²
153 W/m²
Thermal load
1,126 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS

Manufacturer details

Driver ic
ICND2055S
Scan rate
1/28
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/ammk2-series_digital.pdf
Control mode
Synchronous Control
Power supply
100-240V AC 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
70%
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60Hz
Led wavelength
R:618.2-623.2 G:527.5-530.5 B:470.9-473.9
Receiving card
Novastar
Pitch published
8,33mm
Power published
330 / 110 W/panel (max / avg)
Cabinet material
Aluminum Profile
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
14.400 pixels/㎡
Weight published
8,5kg (18,74lb)
Color temperature
6500K
Module dimensions
600x75mm
Module resolution
72x9pixels
Contrast published
15000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16bit
Pixel configuration
3-in-1 SMD
Brightness published
4000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front

All variations in the AMmk2 series

All INFiLED cabinets →

Every INFiLED AMmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 10,368 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORAM8.3mk2 Pro mini in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORAM8.3mk2 Pro mini draw?
Each INFiLED ORAM8.3mk2 Pro mini cabinet draws up to 330 W at full white and about 110 W with typical content — 458 W/m² max. A 10-cabinet wall therefore needs up to 3,300 W plus headroom.
What is the resolution of the INFiLED ORAM8.3mk2 Pro mini?
One cabinet is 144 × 72 pixels at a 8.33 mm pixel pitch (14,400 px/m²). About 27 cabinets side by side reach 4K width (≈ 32.40 m).
How heavy is a INFiLED ORAM8.3mk2 Pro mini wall?
A single cabinet weighs 8.5 kg (11.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 128 kg before mounting structure.
Is the INFiLED ORAM8.3mk2 Pro mini suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
