Absen PL2.5 Pro V2 i specs

Absen's Polaris V2 Series revolutionizes display solutions with its harmoniously designed 500mm panel increments, making screen size calculations effortless. These panels are crafted to be both slender and featherlight, ensuring smooth and easy handling. Catering to a diverse array of indoor and outdoor environments, the series presents a versatile range of pixel pitches from 1.9mm to 4.8mm.

Pitch
1.95 mm2.5 mm2.97 mm2.98 mm3.9 mm4.8 mm
Size
500×500 mm500×1000 mm
Nits
1,000 nits1,200 nits1,500 nits4,000 nits4,500 nits
Open in calculatorCompareControllersRunning cost

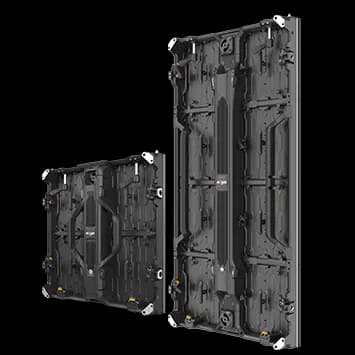

Absen PL2.5 Pro V2 i LED cabinet

Physical

Pixel pitch
2.5 mm
Cabinet size (W×H×D)
500 × 500 × 78 mm
Weight
7.8 kg
Weight per m²
31.2 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
200 × 200 px (1:1)
Pixel density
160,000 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
3,840 Hz
Contrast
8,800:1
Viewing angle (H/V)
160° / 140°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
180 W
Average power
60 W
Max power per m²
720 W/m²
Average power per m²
240 W/m²
Thermal load
614 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP21
Operating temperature
10 to 40 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC, RoHS

Manufacturer details

Power supply
100 to 240
Cabinet material
Die-casting aluminum
Short description
• Pixel pitches of outdoor products: 2.9mm, 3.9mm, 4.8mm • Panel dimensions: 500(W)500(H)mm, 500(W)1000(H)mm
Operating humidity
10 ~ 90%
Pixel configuration
Black SMD 3in1 1515

All variations in the Polaris V2 series

All Absen cabinets →

Every Absen Polaris V2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 40,000 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen PL2.5 Pro V2 i in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Absen PL2.5 Pro V2 i draw?
Each Absen PL2.5 Pro V2 i cabinet draws up to 180 W at full white and about 60 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 1,800 W plus headroom.
What is the resolution of the Absen PL2.5 Pro V2 i?
One cabinet is 200 × 200 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 19 cabinets side by side reach 4K width (≈ 9.50 m).
How heavy is a Absen PL2.5 Pro V2 i wall?
A single cabinet weighs 7.8 kg (31.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 117 kg before mounting structure.
Is the Absen PL2.5 Pro V2 i suitable for outdoor use?
No — the Absen PL2.5 Pro V2 i is an indoor cabinet (IP40 front). Its 1,500 nits suit controlled lighting, not direct sun.
