Absen PL2.9W Plus V2 L specs

Absen's Polaris V2 Series revolutionizes display solutions with its harmoniously designed 500mm panel increments, making screen size calculations effortless. These panels are crafted to be both slender and featherlight, ensuring smooth and easy handling. Catering to a diverse array of indoor and outdoor environments, the series presents a versatile range of pixel pitches from 1.9mm to 4.8mm.

Pitch
1.95 mm2.5 mm2.97 mm2.98 mm3.9 mm4.8 mm
Size
500×500 mm500×1000 mm
Nits
1,000 nits1,200 nits1,500 nits4,000 nits4,500 nits
Open in calculatorCompareControllersRunning cost

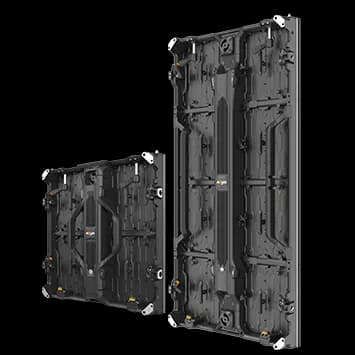

Absen PL2.9W Plus V2 L LED cabinet

Physical

Pixel pitch
2.98 mm
Cabinet size (W×H×D)
500 × 1,000 × 78 mm
Weight
13 kg
Weight per m²
26 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
168 × 336 px (1:2)
Pixel density
112,896 px/m²
Brightness (calibrated)
4,000 nits
Refresh rate
3,840 Hz
Contrast
4,000:1
Viewing angle (H/V)
140° / 140°
LED type
SMD
Processing depth
15 bit

Power & thermal

Max power
360 W
Average power
120 W
Max power per m²
720 W/m²
Average power per m²
240 W/m²
Thermal load
1,228 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP64
Operating temperature
10 to 40 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC, RoHS

Manufacturer details

Power supply
100 to 240
Cabinet material
Die-casting aluminum
Short description
• Pixel pitches of outdoor products: 2.9mm, 3.9mm, 4.8mm • Panel dimensions: 500(W)500(H)mm, 500(W)1000(H)mm
Operating humidity
10 ~ 90%
Pixel configuration
SMD 3in1 1515

All variations in the Polaris V2 series

All Absen cabinets →

Every Absen Polaris V2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 56,448 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen PL2.9W Plus V2 L in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Absen PL2.9W Plus V2 L draw?
Each Absen PL2.9W Plus V2 L cabinet draws up to 360 W at full white and about 120 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 3,600 W plus headroom.
What is the resolution of the Absen PL2.9W Plus V2 L?
One cabinet is 168 × 336 pixels at a 2.98 mm pixel pitch (112,896 px/m²). About 23 cabinets side by side reach 4K width (≈ 11.50 m).
How heavy is a Absen PL2.9W Plus V2 L wall?
A single cabinet weighs 13 kg (26 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 195 kg before mounting structure.
Is the Absen PL2.9W Plus V2 L suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 4,000 nits of calibrated brightness.
