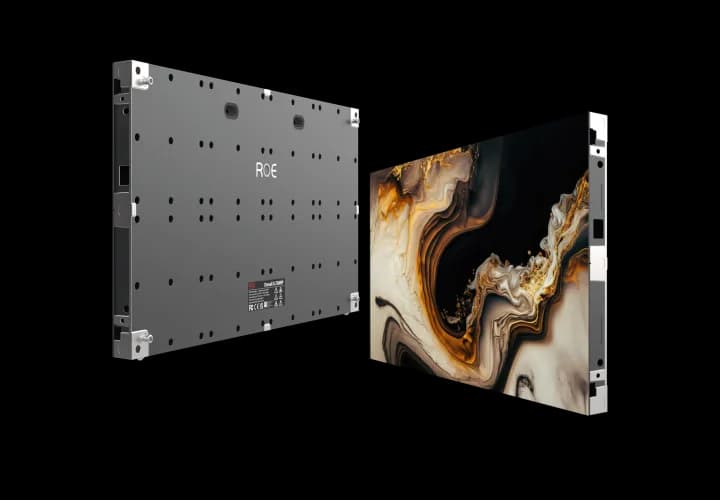

ROE Visual DL1.2 specs
Denali is ROE Visuals latest groundbreaking LED solution, setting new standards in visual excellence.
Physical
- Pixel pitch
- 1.2 mm
- Cabinet size (W×H×D)
- 600 × 338 × 29 mm
- Weight
- 5.5 kg
- Weight per m²
- 27.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 640,000 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 170° / 170°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 100 W
- Average power
- 50 W
- Max power per m²
- 494 W/m²
- Average power per m²
- 247 W/m²
- Thermal load
- 341 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, FCC, UKCA, RoHS, WEEE
Manufacturer details
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Denali/denali-brochure-mar-16_-2026.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 345 / 160
- Power published
- 100W / 50W
- Weight published
- 5.5kg / 12.13lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- Micro LED
- Brightness published
- 1000nits
- Dimensions published
- 600mm x 337.5mm x 29.2mm 23.62” x 13.29” x 1.15”
- Service access published
- Front
All variations in the Denali series
All ROE Visual cabinets →Every ROE Visual Denali series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual DL0.70.78125 mm600×338 mm800 nits
- ROE Visual DL0.90.9375 mm600×338 mm1,000 nits
- DL1.2this model1.2 mm600×338 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual DL1.2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual DL1.2 draw?
- Each ROE Visual DL1.2 cabinet draws up to 100 W at full white and about 50 W with typical content — 494 W/m² max. A 10-cabinet wall therefore needs up to 1,000 W plus headroom.
- What is the resolution of the ROE Visual DL1.2?
- One cabinet is 480 × 270 pixels at a 1.2 mm pixel pitch (640,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
- How heavy is a ROE Visual DL1.2 wall?
- A single cabinet weighs 5.5 kg (27.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 83 kg before mounting structure.
- Is the ROE Visual DL1.2 suitable for outdoor use?
- No — the ROE Visual DL1.2 is an indoor cabinet (IP40 front). Its 1,000 nits suit controlled lighting, not direct sun.
