INFiLED ORGX6.9 mk2 mini specs

The GXII Series is a lightweight LED display that features a waterproof and dustproof design, offers creative mounting possibilities, and many more advantages for indoor and outdoor rental applications.

Pitch
1.95 mm2.5 mm2.97 mm3.91 mm4.63 mm4.81 mm5.95 mm6.94 mm
Size
500×1000 mm500×500 mm
Nits
800 nits1,000 nits5,000 nits
Open in calculatorCompareControllersRunning costDatasheet

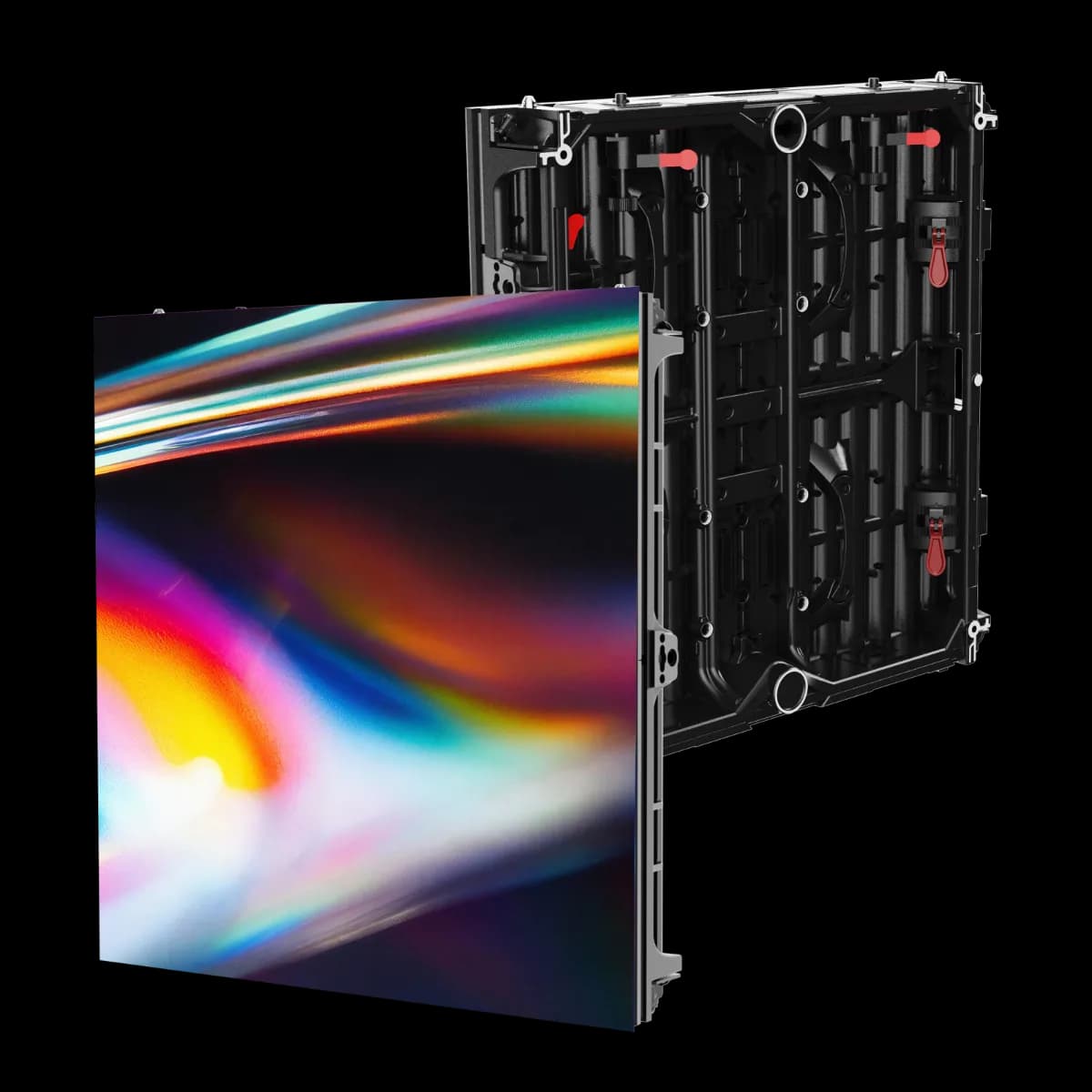

INFiLED ORGX6.9 mk2 mini LED cabinet

Physical

Pixel pitch
6.94 mm
Cabinet size (W×H×D)
500 × 500 × 76 mm
Weight
7.7 kg
Weight per m²
30.8 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
72 × 72 px (1:1)
Pixel density
20,736 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
7,680 Hz
Contrast
16,000:1
Viewing angle (H/V)
160° / 130°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
170 W
Average power
57 W
Max power per m²
680 W/m²
Average power per m²
228 W/m²
Thermal load
580 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, CB, FCC, CCC, RoHS

Manufacturer details

Driver ic
ICND2153S
Scan rate
1/6
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/gxii-series_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:520-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
6,94mm
Power published
170 / 57 W/panel (max / avg)
Cabinet material
Die-casting Aluminum
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
20.736pixels/㎡
Weight published
7,7kg (16,98lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
500x250mm
Module resolution
72x36pixels
Contrast published
16000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16bit
Pixel configuration
3-in-1 SMD
Brightness published
5000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front / Rear

All variations in the GXmk2 series

All INFiLED cabinets →

Every INFiLED GXmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 5,184 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORGX6.9 mk2 mini in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORGX6.9 mk2 mini draw?
Each INFiLED ORGX6.9 mk2 mini cabinet draws up to 170 W at full white and about 57 W with typical content — 680 W/m² max. A 10-cabinet wall therefore needs up to 1,700 W plus headroom.
What is the resolution of the INFiLED ORGX6.9 mk2 mini?
One cabinet is 72 × 72 pixels at a 6.94 mm pixel pitch (20,736 px/m²). About 53 cabinets side by side reach 4K width (≈ 26.50 m).
How heavy is a INFiLED ORGX6.9 mk2 mini wall?
A single cabinet weighs 7.7 kg (30.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 116 kg before mounting structure.
Is the INFiLED ORGX6.9 mk2 mini suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
