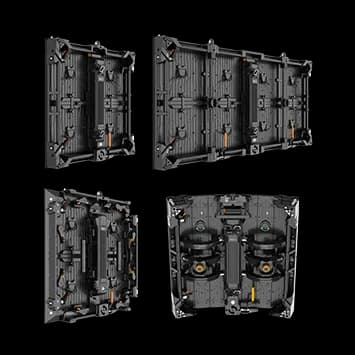

Absen SA3.9 L specs
The Saturn (SA) series delivers unmatched versatility through six core strengths: an ultra-lightweight but durable design, superior image quality, flexible applications, identical components for easy management, creative SA/SA-B/SA-C combinations, and rapid setup with fast locking system.
Physical
- Pixel pitch
- 3.9 mm
- Cabinet size (W×H×D)
- 1,000 × 500 × 70 mm
- Weight
- 9.5 kg
- Weight per m²
- 19 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 256 × 128 px (2:1)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 1,200 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 7,000:1
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 330 W
- Average power
- 110 W
- Max power per m²
- 660 W/m²
- Average power per m²
- 220 W/m²
- Thermal load
- 1,126 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP21
- Operating temperature
- 10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS, UKCA
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Carbon fiber + Die casting magnesium
- Short description
- • Only 5.5kg per 500(W)x500(H)x70(D)mm panel • Equipped with fast locking system with instant feedback mechanism • Designed with innovative top and bottom magnets, these panels seamlessly snap together when aligned vertically, offering a hands-free setup • The modules and power boxes of panels of different sizes in the SA series are interchangeable
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- Black SMD 3in1 1515
All variations in the Saturn series
All Absen cabinets →Every Absen Saturn series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen SA1.91.9 mm500×500 mm1,500 nits
- Absen SA2.62.6 mm500×500 mm1,500 nits
- Absen SA2.6 L2.6 mm1000×500 mm1,500 nits
- Absen SA3.93.9 mm500×500 mm1,200 nits
- SA3.9 Lthis model3.9 mm1000×500 mm1,200 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
7,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
7,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,302cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen SA3.9 L in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen SA3.9 L draw?
- Each Absen SA3.9 L cabinet draws up to 330 W at full white and about 110 W with typical content — 660 W/m² max. A 10-cabinet wall therefore needs up to 3,300 W plus headroom.
- What is the resolution of the Absen SA3.9 L?
- One cabinet is 256 × 128 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 15 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a Absen SA3.9 L wall?
- A single cabinet weighs 9.5 kg (19 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 143 kg before mounting structure.
- Is the Absen SA3.9 L suitable for outdoor use?
- No — the Absen SA3.9 L is an indoor cabinet (IP40 front). Its 1,200 nits suit controlled lighting, not direct sun.
