INFiLED IRX3.9mk3-Lite specs

The ultra-flexible curved display that builds XR-ready waves and cylinders from single cabinets.

Pitch
1.56 mm1.95 mm2.6 mm3.9 mm
Size
500×500 mm
Nits
1,200 nits1,000 nits4,000 nits
Open in calculatorCompareControllersRunning costDatasheet

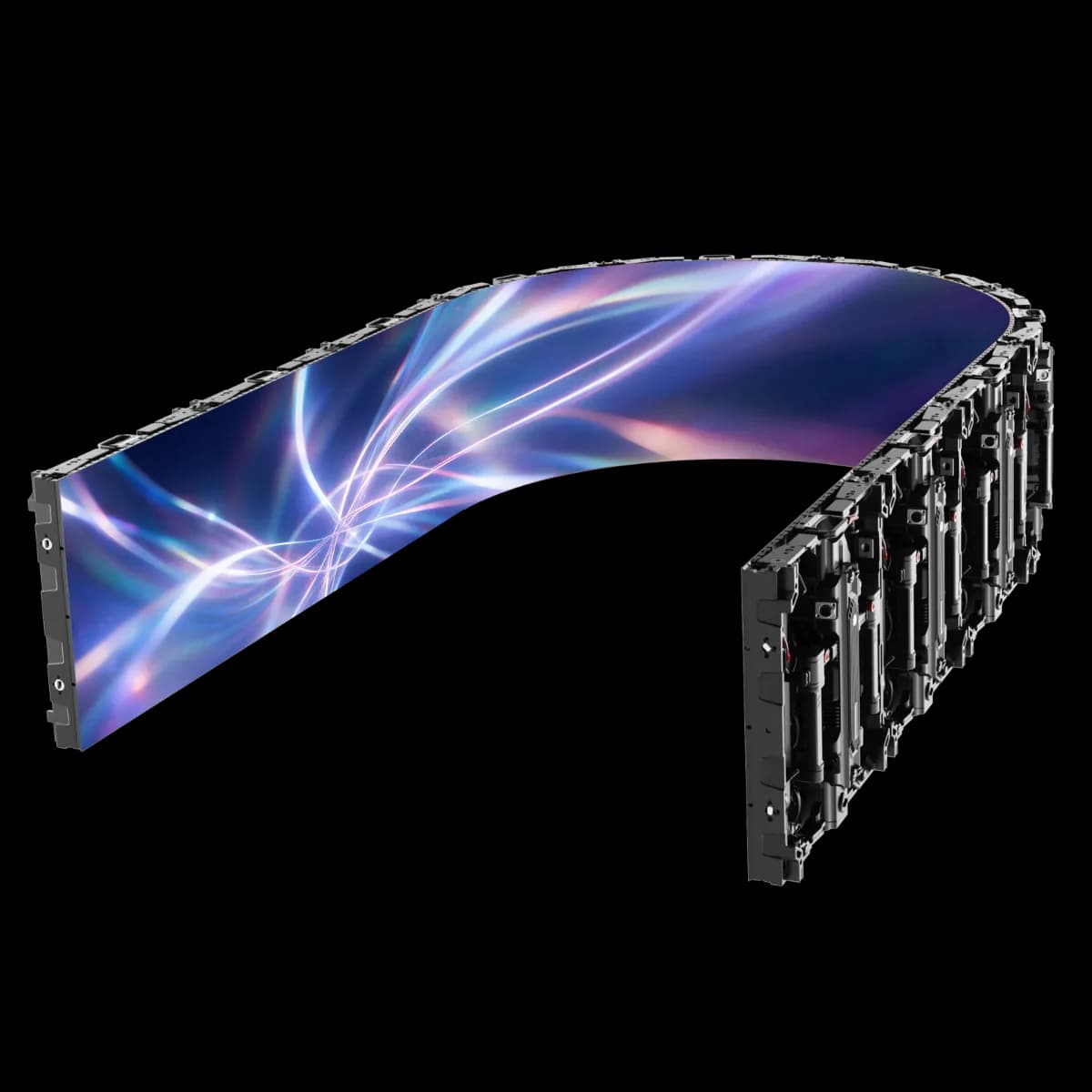

INFiLED IRX3.9mk3-Lite LED cabinet

Physical

Pixel pitch
3.9 mm
Cabinet size (W×H×D)
500 × 500 × 97 mm
Weight
7.6 kg
Weight per m²
30.4 kg/m²
Cabinet type
Rental & staging
Service access
Rear


Cabinet resolution
128 × 128 px (1:1)
Pixel density
65,536 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
150 W
Average power
50 W
Max power per m²
600 W/m²
Average power per m²
200 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH

Manufacturer details

Driver ic
PWM driver
Scan rate
1/16
Brochure url
https://www.infiled.com/wp-content/uploads/2025/06/infiled_product_-brochure_xmk3_2025.pdf
Control mode
Synchronous display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60 Hz
Led wavelength
R: 620-625nm / G:510-535nm / B: 455-480nm
Pitch published
3.9mmmm
Power published
150 / 50 W/panel (max / avg)
Cabinet material
Magnesium Alloy
Control distance
Ethernet cable≤100m or Fiber Optic≤15km
Physical density
65,536 pixel/m²
Weight published
7.6kg (16.76lb)
Color temperature
6500K(3000K~9000K adjustable)
Module dimensions
500x125mm
Module resolution
128x32pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90%RH Non-condensing
Grayscale published
16 bit
Pixel configuration
3 IN 1 SMD
Brightness published
1000nitsnits
Brightness adjustment
0~100%, 256 levels
Service access published
Rear

All variations in the Xmk3 series

All INFiLED cabinets →

Every INFiLED Xmk3 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRX3.9mk3-Lite in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRX3.9mk3-Lite draw?
Each INFiLED IRX3.9mk3-Lite cabinet draws up to 150 W at full white and about 50 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the INFiLED IRX3.9mk3-Lite?
One cabinet is 128 × 128 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
How heavy is a INFiLED IRX3.9mk3-Lite wall?
A single cabinet weighs 7.6 kg (30.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 114 kg before mounting structure.
Is the INFiLED IRX3.9mk3-Lite suitable for outdoor use?
No — the INFiLED IRX3.9mk3-Lite is an indoor cabinet (IP30 front). Its 1,000 nits suit controlled lighting, not direct sun.
