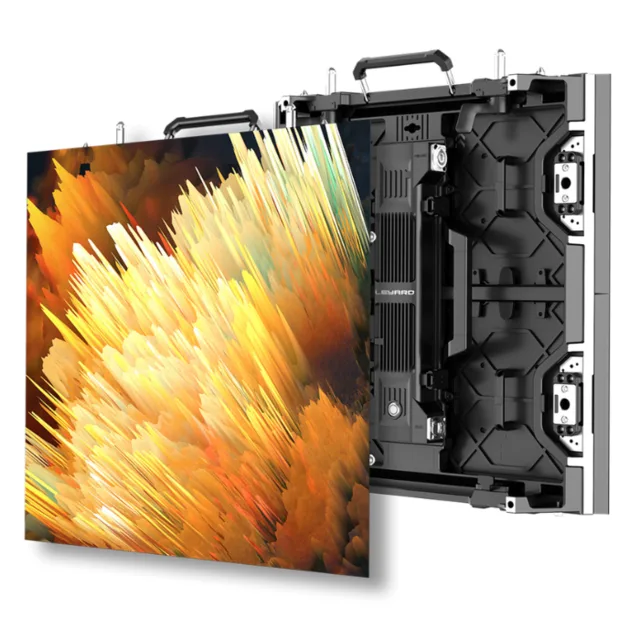

Leyard LN3.9 500x1000 specs
The Leyard LN Series LED displays are the perfect solution for temporary events and occasions. The display's features are specifically designed to meet the demanding needs for robust yet flexible content visualization at exhibitions, concerts, conferences, sporting events and other commercial activities to provide high quality visual effects and information.
Physical
- Pixel pitch
- 3.906 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 79 mm
- Weight
- 13.5 kg
- Weight per m²
- 27 kg/m²
- Cabinet type
- Rental & staging
- Cabinet resolution
- 128 × 256 px (1:2)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 160° / 140°
Power & thermal
- Max power
- 300 W
- Average power
- 100 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 200 W/m²
- Thermal load
- 1,024 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP50
- IP rating (rear)
- IP50
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Power supply
- AC100-240V (50/60Hz)
- Frame rates hz
- 50&60
- Cabinet variant
- 500x1000
- Pitch published
- 3.906 mm
- Color temperature
- 3000-10000K adjustable
- Module dimensions
- 250x250 mm
- Brightness variant
- standard 1000 nits
- Module composition
- 2x4
All variations in the LN series
All Leyard cabinets →Every Leyard LN series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard LN1.9 500x5001.953 mm500×500 mm1,000 nits
- Leyard LN2.6 500x5002.604 mm500×500 mm1,000 nits
- Leyard LN2.9 500x10002.976 mm500×1000 mm1,000 nits
- Leyard LN2.9 500x5002.976 mm500×500 mm1,000 nits
- Leyard LN2.9S 500x10002.976 mm500×1000 mm4,000 nits
- Leyard LN2.9S 500x5002.976 mm500×500 mm4,000 nits
- LN3.9 500x1000this model3.906 mm500×1000 mm1,000 nits
- Leyard LN3.9 500x5003.906 mm500×500 mm1,000 nits
- Leyard LN3.9S 500x10003.906 mm500×1000 mm4,000 nits
- Leyard LN3.9S 500x5003.906 mm500×500 mm4,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
7,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
7,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,302cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard LN3.9 500x1000 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard LN3.9 500x1000 draw?
- Each Leyard LN3.9 500x1000 cabinet draws up to 300 W at full white and about 100 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.
- What is the resolution of the Leyard LN3.9 500x1000?
- One cabinet is 128 × 256 pixels at a 3.906 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a Leyard LN3.9 500x1000 wall?
- A single cabinet weighs 13.5 kg (27 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 203 kg before mounting structure.
- Is the Leyard LN3.9 500x1000 suitable for outdoor use?
- No — the Leyard LN3.9 500x1000 is an indoor cabinet (IP50 front). Its 1,000 nits suit controlled lighting, not direct sun.
