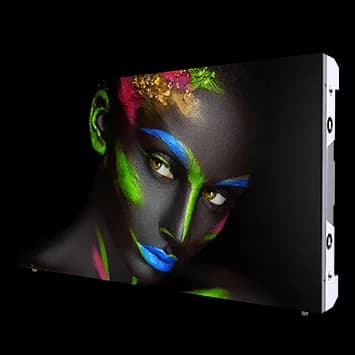

Absen AX1.5 Pro Novastar specs
The AX Pro Series is a 16:1 MiniLED rental solution from AbsenLive. It utilizes Flip Chip IMD 4-in-1 technology for high protection and low power consumption. The product has excellent black consistency and contrast ratio up to 11000:1, the display effect is stunning.
Physical
- Pixel pitch
- 1.59 mm
- Cabinet size (W×H×D)
- 610 × 343 × 80 mm
- Weight
- 9.2 kg
- Weight per m²
- 44 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 384 × 216 px (16:9)
- Pixel density
- 396,425 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 5,500:1
- Viewing angle (H/V)
- 160° / 140°
- LED type
- IMD
- Processing depth
- 15 bit
Power & thermal
- Max power
- 170 W
- Average power
- 44 W
- Max power per m²
- 813 W/m²
- Average power per m²
- 210 W/m²
- Thermal load
- 580 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP21
- Operating temperature
- 10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • Pixel to Pixel 4K & HD Resolutions • Flexible Installation • Auto-Lock and Auto-Eject Systems • Pixel to Pixel 4K & HD Resolutions Standard 16:9 size • Modules and power packs support full front or rear maintenance and 1 man quick installation • Supports hanging, stacking and fixed installations
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- IMD 4in1
All variations in the Aries Pro series
All Absen cabinets →Every Absen Aries Pro series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen AX1.2 Pro1.27 mm610×343 mm1,500 nits
- Absen AX1.5 Pro Brompton1.59 mm610×343 mm1,000 nits
- AX1.5 Pro Novastarthis model1.59 mm610×343 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,699cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen AX1.5 Pro Novastar in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen AX1.5 Pro Novastar draw?
- Each Absen AX1.5 Pro Novastar cabinet draws up to 170 W at full white and about 44 W with typical content — 813 W/m² max. A 10-cabinet wall therefore needs up to 1,700 W plus headroom.
- What is the resolution of the Absen AX1.5 Pro Novastar?
- One cabinet is 384 × 216 pixels at a 1.59 mm pixel pitch (396,425 px/m²). About 10 cabinets side by side reach 4K width (≈ 6.10 m).
- How heavy is a Absen AX1.5 Pro Novastar wall?
- A single cabinet weighs 9.2 kg (44 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 138 kg before mounting structure.
- Is the Absen AX1.5 Pro Novastar suitable for outdoor use?
- No — the Absen AX1.5 Pro Novastar is an indoor cabinet (IP40 front). Its 1,000 nits suit controlled lighting, not direct sun.
