Samsung XHB160-S Flat-13 specs

Exceptionally clear and stunning picture quality, even in the sun. Improved energy efficiency enables sustainable operations for your business. Reliable performance even in the toughest environments. Easy and flexible installation in any configuration.

Pitch
6.16 mm8.21 mm10.78 mm16.43 mm
Size
345×690 mm345×1035 mm690×690 mm690×1035 mm
Nits
8,000 nits
Open in calculatorCompareControllersRunning cost

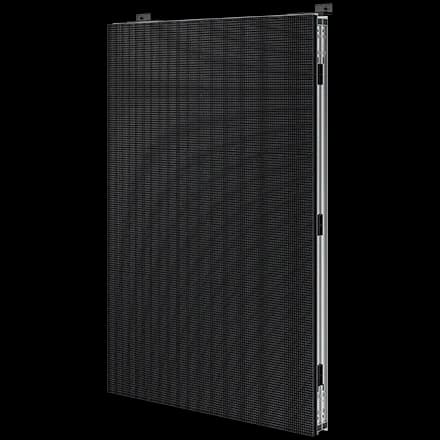

Samsung XHB160-S Flat-13 LED cabinet

Physical

Pixel pitch
16.43 mm
Cabinet size (W×H×D)
345 × 1,035 × 101 mm
Weight
18 kg
Weight per m²
50.4 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
21 × 63 px (1:3)
Pixel density
3,708 px/m²
Brightness (calibrated)
8,000 nits
Refresh rate
7,680 Hz
Contrast
8,000:1
Viewing angle (H/V)
160° / 115°
LED type
DIP

Power & thermal

Max power
150 W
Average power
55 W
Max power per m²
420 W/m²
Average power per m²
154 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP66
IP rating (rear)
IP66
Operating temperature
-40 to 55 °C
LED lifetime
100,000 h
Certifications
UL48, EMC Class A

Manufacturer details

Power supply
100 to 240
Frame rates hz
50 / 60
Cabinet variant
Flat-13
Weight published
18 Kg
Color temperature
6,500K
Contrast published
8,000:1
Operating humidity
5 ~ 95%
Samsung model code
LH160XHBTIS
Modules per cabinet
1x3
Pixel configuration
DIP R/G/B (XDC)
Brightness published
8,000 nit

All variations in the XHB-S series

All Samsung cabinets →

Every Samsung XHB-S series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 1,323 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XHB160-S Flat-13 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Samsung XHB160-S Flat-13 draw?
Each Samsung XHB160-S Flat-13 cabinet draws up to 150 W at full white and about 55 W with typical content — 420 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the Samsung XHB160-S Flat-13?
One cabinet is 21 × 63 pixels at a 16.43 mm pixel pitch (3,708 px/m²). About 183 cabinets side by side reach 4K width (≈ 63.06 m).
How heavy is a Samsung XHB160-S Flat-13 wall?
A single cabinet weighs 18 kg (50.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 270 kg before mounting structure.
Is the Samsung XHB160-S Flat-13 suitable for outdoor use?
Yes — it is rated for outdoor use with IP66 front ingress protection and 8,000 nits of calibrated brightness.
