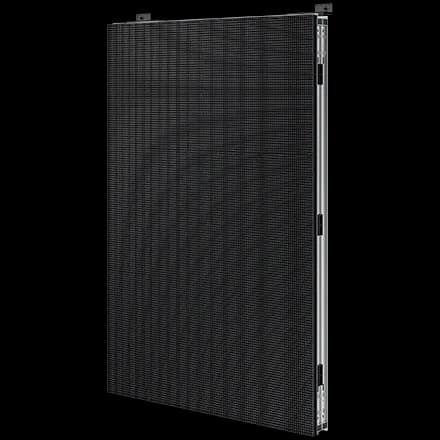

Samsung XHB100-S LTYPE-42 specs
Exceptionally clear and stunning picture quality, even in the sun. Improved energy efficiency enables sustainable operations for your business. Reliable performance even in the toughest environments. Easy and flexible installation in any configuration.
Physical
- Pixel pitch
- 10.78 mm
- Cabinet size (W×H×D)
- 690 × 690 × 690 mm
- Weight
- 30.4 kg
- Weight per m²
- 63.9 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 64 × 64 px (1:1)
- Pixel density
- 8,603 px/m²
- Brightness (calibrated)
- 8,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 8,000:1
- Viewing angle (H/V)
- 160° / 128°
- LED type
- SMD
Power & thermal
- Max power
- 660 W
- Average power
- 220 W
- Max power per m²
- 1,386 W/m²
- Average power per m²
- 462 W/m²
- Thermal load
- 2,252 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP66
- IP rating (rear)
- IP66
- Operating temperature
- -40 to 55 °C
- LED lifetime
- 100,000 h
- Certifications
- UL48, EMC Class A
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Cabinet variant
- LTYPE-42
- Weight published
- 30.4 kg
- Color temperature
- 6,500K
- Contrast published
- 8,000:1
- Operating humidity
- 5 ~ 95%
- Samsung model code
- LH100XHBTRS
- Modules per cabinet
- 2x2 + 2x2
- Pixel configuration
- SMD 3-in-1 2727 (XDC)
- Brightness published
- 8,000 nit
