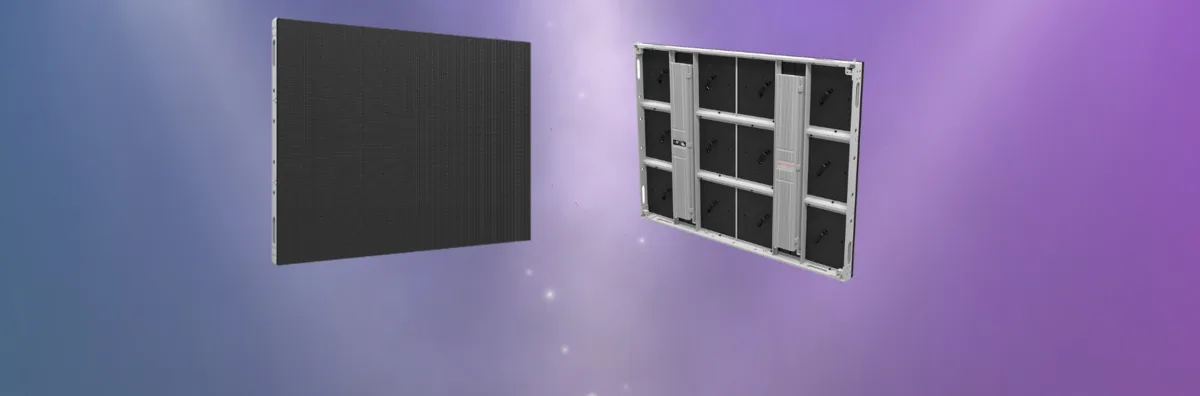

Leyard LA10S specs
The Leyard LA Series is the latest generation of Leyard's fixed outdoor LED cabinets. The video wall displays in this series utilize a new aluminum profile that allows for an ultra-lightweight and ultra-slim cabinet structure. The Leyard LA series are a perfect fit for large scale outdoor displays used in sports venues and DOOH.
Physical
- Pixel pitch
- 10 mm
- Cabinet size (W×H×D)
- 1,280 × 960 × 71 mm
- Weight
- 35 kg
- Weight per m²
- 28.5 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 128 × 96 px (4:3)
- Pixel density
- 10,000 px/m²
- Brightness (calibrated)
- 7,500 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 6,000:1
- Viewing angle (H/V)
- 150° / 110°
- LED type
- SMD
Power & thermal
- Max power
- 971 W
- Average power
- 326 W
- Max power per m²
- 790 W/m²
- Average power per m²
- 265 W/m²
- Thermal load
- 3,312 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -30 to 60 °C
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Storage temp
- -40 to 60 C
- Frame rates hz
- 50/60
- Pitch published
- 10
- Color temperature
- 3000-10000
- Module dimensions
- 320x320
- Module resolution
- 32x32
- Module composition
- 4x3
- Operating humidity
- 10-90%
- Pixel configuration
- SMD
All variations in the LA Series
All Leyard cabinets →Every Leyard LA Series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard LA04S4.44444 mm1280×960 mm6,000 nits
- Leyard LA06S6.66667 mm1280×960 mm7,500 nits
- LA10Sthis model10 mm1280×960 mm7,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 12,288 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
20,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
20,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
11,474cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
10,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
5,200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
5,200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard LA10S in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard LA10S draw?
- Each Leyard LA10S cabinet draws up to 971 W at full white and about 326 W with typical content — 790 W/m² max. A 10-cabinet wall therefore needs up to 9,708 W plus headroom.
- What is the resolution of the Leyard LA10S?
- One cabinet is 128 × 96 pixels at a 10 mm pixel pitch (10,000 px/m²). About 30 cabinets side by side reach 4K width (≈ 38.40 m).
- How heavy is a Leyard LA10S wall?
- A single cabinet weighs 35 kg (28.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 525 kg before mounting structure.
- Is the Leyard LA10S suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 7,500 nits of calibrated brightness.
