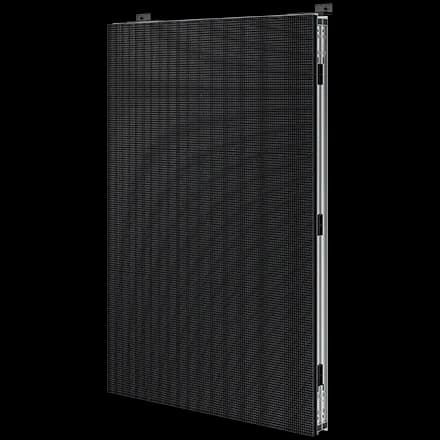

Samsung XHB160-S Flat-12 LED cabinet

Physical

Pixel pitch
16.43 mm
Cabinet size (W×H×D)
345 × 690 × 111 mm
Weight
12.2 kg
Weight per m²
51.3 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
21 × 42 px (1:2)
Pixel density
3,707 px/m²
Brightness (calibrated)
8,000 nits
Refresh rate
7,680 Hz
Contrast
8,000:1
Viewing angle (H/V)
160° / 115°
LED type
DIP

Power & thermal

Max power
100 W
Average power
33 W
Max power per m²
420 W/m²
Average power per m²
139 W/m²
Thermal load
341 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP66
IP rating (rear)
IP66
Operating temperature
-40 to 55 °C
LED lifetime
100,000 h
Certifications
UL48, EMC Class A

Manufacturer details

Power supply
100 to 240
Frame rates hz
50 / 60
Cabinet variant
Flat-12
Weight published
12.2 Kg
Color temperature
6,500K
Contrast published
8,000:1
Operating humidity
5 ~ 95%
Samsung model code
LH160XHBTSS
Modules per cabinet
1x2
Pixel configuration
DIP R/G/B (XDC)
Brightness published
8,000 nit

All variations in the XHB-S series

All Samsung cabinets →

Every Samsung XHB-S series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 882 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XHB160-S Flat-12 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Samsung XHB160-S Flat-12 draw?
Each Samsung XHB160-S Flat-12 cabinet draws up to 100 W at full white and about 33 W with typical content — 420 W/m² max. A 10-cabinet wall therefore needs up to 1,000 W plus headroom.
What is the resolution of the Samsung XHB160-S Flat-12?
One cabinet is 21 × 42 pixels at a 16.43 mm pixel pitch (3,707 px/m²). About 183 cabinets side by side reach 4K width (≈ 63.06 m).
How heavy is a Samsung XHB160-S Flat-12 wall?
A single cabinet weighs 12.2 kg (51.3 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 183 kg before mounting structure.
Is the Samsung XHB160-S Flat-12 suitable for outdoor use?
Yes — it is rated for outdoor use with IP66 front ingress protection and 8,000 nits of calibrated brightness.
