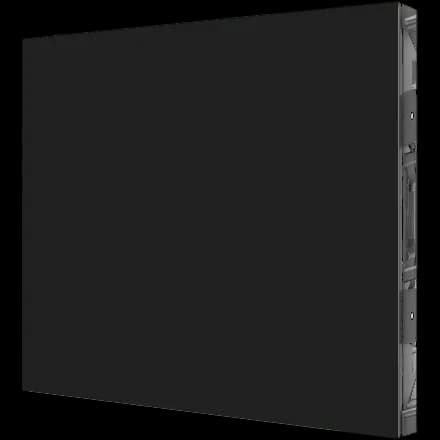

Samsung IH059C-Y specs
Samsung's IHC series indoor LED display creates a brilliant centerpiece in any environment. Crisp, clear visuals capture audience attention regardless of surrounding light such as direct sunlight. The display also allows for easy installation and maintenance to improve business operation efficiency.
Physical
- Pixel pitch
- 5.9 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 64 mm
- Weight
- 12.2 kg
- Weight per m²
- 24.4 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 84 × 168 px (1:2)
- Pixel density
- 28,224 px/m²
- Brightness (calibrated)
- 4,000 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 150° / 150°
- LED type
- SMD
Power & thermal
- Max power
- 430 W
- Average power
- 129 W
- Max power per m²
- 860 W/m²
- Average power per m²
- 258 W/m²
- Thermal load
- 1,467 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP50
- IP rating (rear)
- IP50
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 60950-1, IEC 62368, EMC Class A
Manufacturer details
- Usage
- indoor
- Features
- hdr10,hdr10+,vxt
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Cabinet variant
- IH059C-Y
- Weight published
- 12.2±5%
- Color temperature
- 6500K±500K
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH059IHCCYC
- Modules per cabinet
- 2 × 2
- Pixel configuration
- SMD 3-in-1 (SMD1921)
- Brightness published
- 4,000 nit
- Installation options
- flat,convex,concave,inner-l,hanging,stacking
All variations in the IHC series
All Samsung cabinets →Every Samsung IHC series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IH039C-L3.9 mm500×500 mm4,000 nits
- Samsung IH039C-X3.9 mm500×500 mm4,000 nits
- Samsung IH039C-Y3.9 mm500×1000 mm4,000 nits
- Samsung IH059C-L5.9 mm500×500 mm4,000 nits
- Samsung IH059C-X5.9 mm500×500 mm4,000 nits
- IH059C-Ythis model5.9 mm500×1000 mm4,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 14,112 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
18,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
18,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
9,991cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
9,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
4,600cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
4,600cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IH059C-Y in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IH059C-Y draw?
- Each Samsung IH059C-Y cabinet draws up to 430 W at full white and about 129 W with typical content — 860 W/m² max. A 10-cabinet wall therefore needs up to 4,300 W plus headroom.
- What is the resolution of the Samsung IH059C-Y?
- One cabinet is 84 × 168 pixels at a 5.9 mm pixel pitch (28,224 px/m²). About 46 cabinets side by side reach 4K width (≈ 23.00 m).
- How heavy is a Samsung IH059C-Y wall?
- A single cabinet weighs 12.2 kg (24.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 183 kg before mounting structure.
- Is the Samsung IH059C-Y suitable for outdoor use?
- No — the Samsung IH059C-Y is an indoor cabinet (IP50 front). Its 4,000 nits suit controlled lighting, not direct sun.
