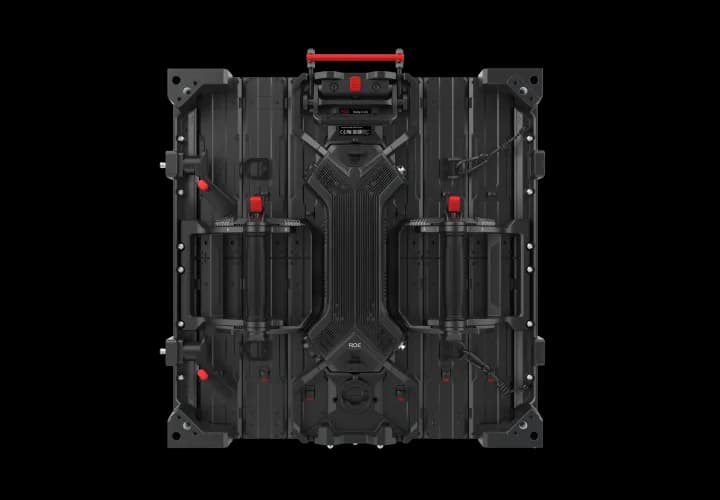

ROE Visual RB-C2.6F specs
The highly-acclaimed Ruby Series LED panels are complemented with a completely compatible series of curving LED panels. The Ruby-C series is a line of smoothly curving LED panels, that look great in either flat or curved configurations. The Ruby-C LED panel can be curved in both convex and concave curves.
Physical
- Pixel pitch
- 2.60417 mm
- Cabinet size (W×H×D)
- 500 × 500 × 108 mm
- Weight
- 8.3 kg
- Weight per m²
- 33.2 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 192 × 192 px (1:1)
- Pixel density
- 147,456 px/m²
- Brightness (calibrated)
- 2,500 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 210 W
- Average power
- 105 W
- Max power per m²
- 840 W/m²
- Average power per m²
- 420 W/m²
- Thermal load
- 717 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, CB, ETL, FCC, UKCA, WEEE
Manufacturer details
- Scan rate
- 1/8
- Curve range
- Concave 30° ~ Convex 30°
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Ruby/ruby-1.5fand1.9fand2.2fand2.6f-(vp)-brochure.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 715 / 330
- Cabinet variant
- RB-C curved frame
- Pitch published
- 2.604mm
- Power published
- 210W / 105W
- Weight published
- 8.3kg / 18.3lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 1313 Flip chip
- Brightness published
- 2500nits
- Dimensions published
- 500mm x 500mm x 108mm 19.7” x 19.7” x 4.25”
- Service access published
- Rear
All variations in the Ruby-C series
All ROE Visual cabinets →Every ROE Visual Ruby-C series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual RB-C1.9BV21.95312 mm500×500 mm1,500 nits
- ROE Visual RB-C1.9F1.95312 mm500×500 mm1,500 nits
- ROE Visual RB-C2.62.60417 mm500×500 mm1,500 nits
- RB-C2.6Fthis model2.60417 mm500×500 mm2,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
6,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
6,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,824cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual RB-C2.6F in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual RB-C2.6F draw?
- Each ROE Visual RB-C2.6F cabinet draws up to 210 W at full white and about 105 W with typical content — 840 W/m² max. A 10-cabinet wall therefore needs up to 2,100 W plus headroom.
- What is the resolution of the ROE Visual RB-C2.6F?
- One cabinet is 192 × 192 pixels at a 2.60417 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
- How heavy is a ROE Visual RB-C2.6F wall?
- A single cabinet weighs 8.3 kg (33.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 125 kg before mounting structure.
- Is the ROE Visual RB-C2.6F suitable for outdoor use?
- No — the ROE Visual RB-C2.6F is an indoor cabinet (IP40 front). Its 2,500 nits suit controlled lighting, not direct sun.
Size a wall with the RB-C2.6F
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
