ROE Visual BM2V2-PC Matte (Black LED) specs

Brilliant LED at your feet. ROE Visual's Red Dot award-winning Black Marble LED floor panel brings creativity to your feet. Available with a high-contrast glass or matte or mirror finish, these floor panels are suited for a wide range of creative uses, such as events, broadcast, hospitality and xR stages.

Pitch
2.82222 mm4.7625 mm
Size
610×610 mm
Nits
800 nits1,700 nits2,000 nits1,200 nits
Open in calculatorCompareControllersRunning cost

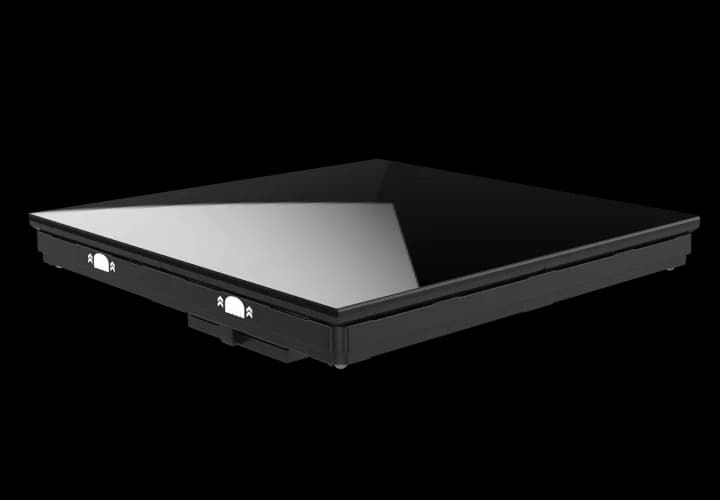

ROE Visual BM2V2-PC Matte (Black LED) LED cabinet

Physical

Pixel pitch
2.82222 mm
Cabinet size (W×H×D)
610 × 610 × 133 mm
Weight
18.6 kg
Weight per m²
50.1 kg/m²
Cabinet type
Rental & staging
Service access
Front


Cabinet resolution
216 × 216 px (1:1)
Pixel density
125,550 px/m²
Brightness (calibrated)
800 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
140° / —°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
310 W
Average power
155 W
Max power per m²
834 W/m²
Average power per m²
417 W/m²
Thermal load
1,058 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 45 °C
Certifications
CE, ETL, FCC, WEEE

Manufacturer details

Usage
LED floor
Scan rate
1/6
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Black%20Marble%202%20%26%204/bm2-brochure-en-july.-22-2024.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
1060 / 490
Pitch published
2.82mm
Power published
310W / 155W
Weight published
18.6kg / 41lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1515 Black
Brightness published
800nits
Dimensions published
609.6mm x 609.6mm x 133mm 24” x 24” x 5”
Service access published
Front

All variations in the Black Marble series

All ROE Visual cabinets →

Every ROE Visual Black Marble series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 46,656 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual BM2V2-PC Matte (Black LED) in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual BM2V2-PC Matte (Black LED) draw?
Each ROE Visual BM2V2-PC Matte (Black LED) cabinet draws up to 310 W at full white and about 155 W with typical content — 834 W/m² max. A 10-cabinet wall therefore needs up to 3,100 W plus headroom.
What is the resolution of the ROE Visual BM2V2-PC Matte (Black LED)?
One cabinet is 216 × 216 pixels at a 2.82222 mm pixel pitch (125,550 px/m²). About 18 cabinets side by side reach 4K width (≈ 10.97 m).
How heavy is a ROE Visual BM2V2-PC Matte (Black LED) wall?
A single cabinet weighs 18.6 kg (50.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 279 kg before mounting structure.
Is the ROE Visual BM2V2-PC Matte (Black LED) suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 800 nits of calibrated brightness.
