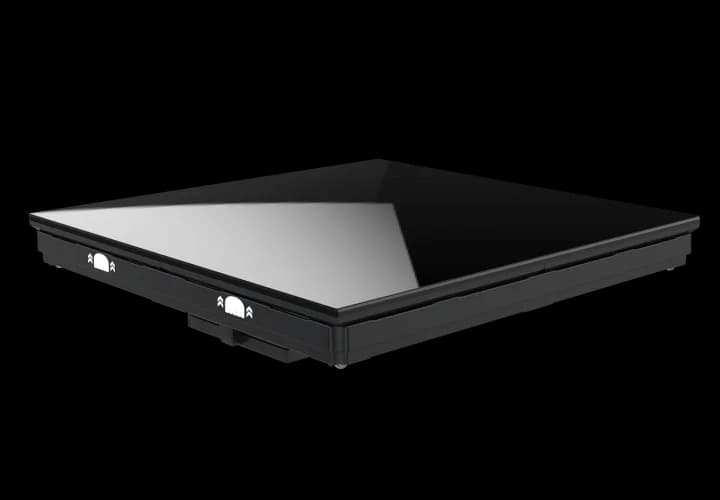

ROE Visual BM4-Mirror specs
Brilliant LED at your feet. ROE Visual's Red Dot award-winning Black Marble LED floor panel brings creativity to your feet. Available with a high-contrast glass or matte or mirror finish, these floor panels are suited for a wide range of creative uses, such as events, broadcast, hospitality and xR stages.
Physical
- Pixel pitch
- 4.7625 mm
- Cabinet size (W×H×D)
- 610 × 610 × 142 mm
- Weight
- 23.4 kg
- Weight per m²
- 63 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front
- Cabinet resolution
- 128 × 128 px (1:1)
- Pixel density
- 44,089 px/m²
- Brightness (calibrated)
- 1,200 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 140° / —°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 290 W
- Average power
- 145 W
- Max power per m²
- 780 W/m²
- Average power per m²
- 390 W/m²
- Thermal load
- 989 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- 0 to 45 °C
- Certifications
- CE, ETL, FCC, WEEE
Manufacturer details
- Usage
- LED floor
- Scan rate
- 1/8
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Black%20Marble%202%20%26%204/bm2-brochure-en-july.-22-2024.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 990 / 460
- Pitch published
- 4.76mm
- Power published
- 290W / 145W
- Weight published
- 23.4kg / 51.59lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 1921 White
- Brightness published
- 1200nits
- Dimensions published
- 609.6mm x 609.6mm x 142mm 24” x 24” x 5.6”
- Service access published
- Front
All variations in the Black Marble series
All ROE Visual cabinets →Every ROE Visual Black Marble series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual BM2-Matte2.82222 mm610×610 mm800 nits
- ROE Visual BM2V2-PC Matte (Black LED)2.82222 mm610×610 mm800 nits
- ROE Visual BM2V2-PC Matte (White LED)2.82222 mm610×610 mm1,700 nits
- ROE Visual BM4-Glass4.7625 mm610×610 mm800 nits
- ROE Visual BM4-Matte4.7625 mm610×610 mm2,000 nits
- BM4-Mirrorthis model4.7625 mm610×610 mm1,200 nits
Controllers that drive this panel
All controllers →Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
15,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
15,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
8,605cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
7,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
3,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
3,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual BM4-Mirror in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual BM4-Mirror draw?
- Each ROE Visual BM4-Mirror cabinet draws up to 290 W at full white and about 145 W with typical content — 780 W/m² max. A 10-cabinet wall therefore needs up to 2,900 W plus headroom.
- What is the resolution of the ROE Visual BM4-Mirror?
- One cabinet is 128 × 128 pixels at a 4.7625 mm pixel pitch (44,089 px/m²). About 30 cabinets side by side reach 4K width (≈ 18.29 m).
- How heavy is a ROE Visual BM4-Mirror wall?
- A single cabinet weighs 23.4 kg (63 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 351 kg before mounting structure.
- Is the ROE Visual BM4-Mirror suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 1,200 nits of calibrated brightness.
