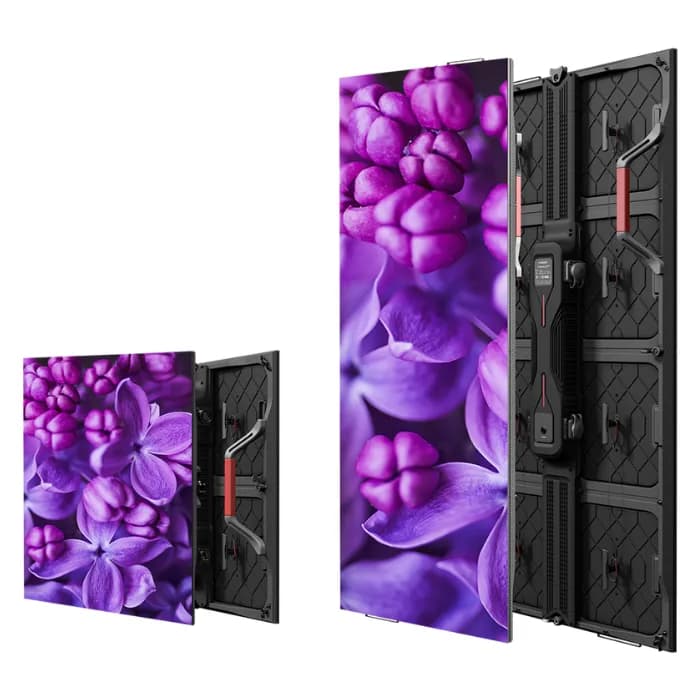

Planar CLI1.9S specs
The next-generation Planar® CarbonLight™ CLI Series indoor LED video wall displays are sleek, lightweight, and built for durability with advanced carbon fiber frames. Designed for versatility, these displays support hanging, free-standing and wall-mounted installations. Available in flexible cabinet sizes of 500x500mm and 500x1000mm, their quick setup makes them perfect for a wide range of permanent and temporary applications.
Physical
- Pixel pitch
- 1.9531 mm
- Cabinet size (W×H×D)
- 500 × 500 × 67 mm
- Weight
- 4.3 kg
- Weight per m²
- 17.2 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 256 × 256 px (1:1)
- Pixel density
- 262,144 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 4,000:1
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 200 W
- Average power
- 68 W
- Max power per m²
- 800 W/m²
- Average power per m²
- 270 W/m²
- Thermal load
- 682 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- FCC, cTUVus, CE, CB, RoHS
Manufacturer details
- Usage
- rated indoor+outdoor
- Marketed by
- Leyard Europe (EMEA)
- Power supply
- Single
- Storage temp
- -35 to 60 C
- Frame rates hz
- 50-60
- Pitch published
- 1.95mm
- Cabinet material
- Carbon Fiber
- Color temperature
- 6500K
- Module dimensions
- 250x250mm
- Module composition
- 2x2
- Operating humidity
- 10-90%
- Pixel configuration
- SMD1212
All variations in the CarbonLight CLI series
All Planar cabinets →Every Planar CarbonLight CLI series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar CLI1.9L1.9531 mm500×1000 mm1,000 nits
- CLI1.9Sthis model1.9531 mm500×500 mm1,000 nits
- Planar CLI2.6L2.6042 mm500×1000 mm1,000 nits
- Planar CLI2.6S2.6042 mm500×500 mm1,000 nits
- Planar CLI3.9L3.9062 mm500×1000 mm1,000 nits
- Planar CLI3.9S3.9062 mm500×500 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 65,536 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
3,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
3,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,151cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar CLI1.9S in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar CLI1.9S draw?
- Each Planar CLI1.9S cabinet draws up to 200 W at full white and about 68 W with typical content — 800 W/m² max. A 10-cabinet wall therefore needs up to 2,000 W plus headroom.
- What is the resolution of the Planar CLI1.9S?
- One cabinet is 256 × 256 pixels at a 1.9531 mm pixel pitch (262,144 px/m²). About 15 cabinets side by side reach 4K width (≈ 7.50 m).
- How heavy is a Planar CLI1.9S wall?
- A single cabinet weighs 4.3 kg (17.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 65 kg before mounting structure.
- Is the Planar CLI1.9S suitable for outdoor use?
- No — the Planar CLI1.9S is an indoor cabinet (IP40 front). Its 1,000 nits suit controlled lighting, not direct sun.
