INFiLED IRDB1.9mk2 Ultra M2 specs

The one-for-all indoor rental platform – flat, faceted, curved, right-angled, or cubed, all from one inventory, with guaranteed color matching across batches.

Pitch
1.56 mm1.95 mm2.6 mm
Size
500×500 mm250×500 mm
Nits
1,200 nits1,000 nits2,000 nits
Open in calculatorCompareControllersRunning costDatasheet

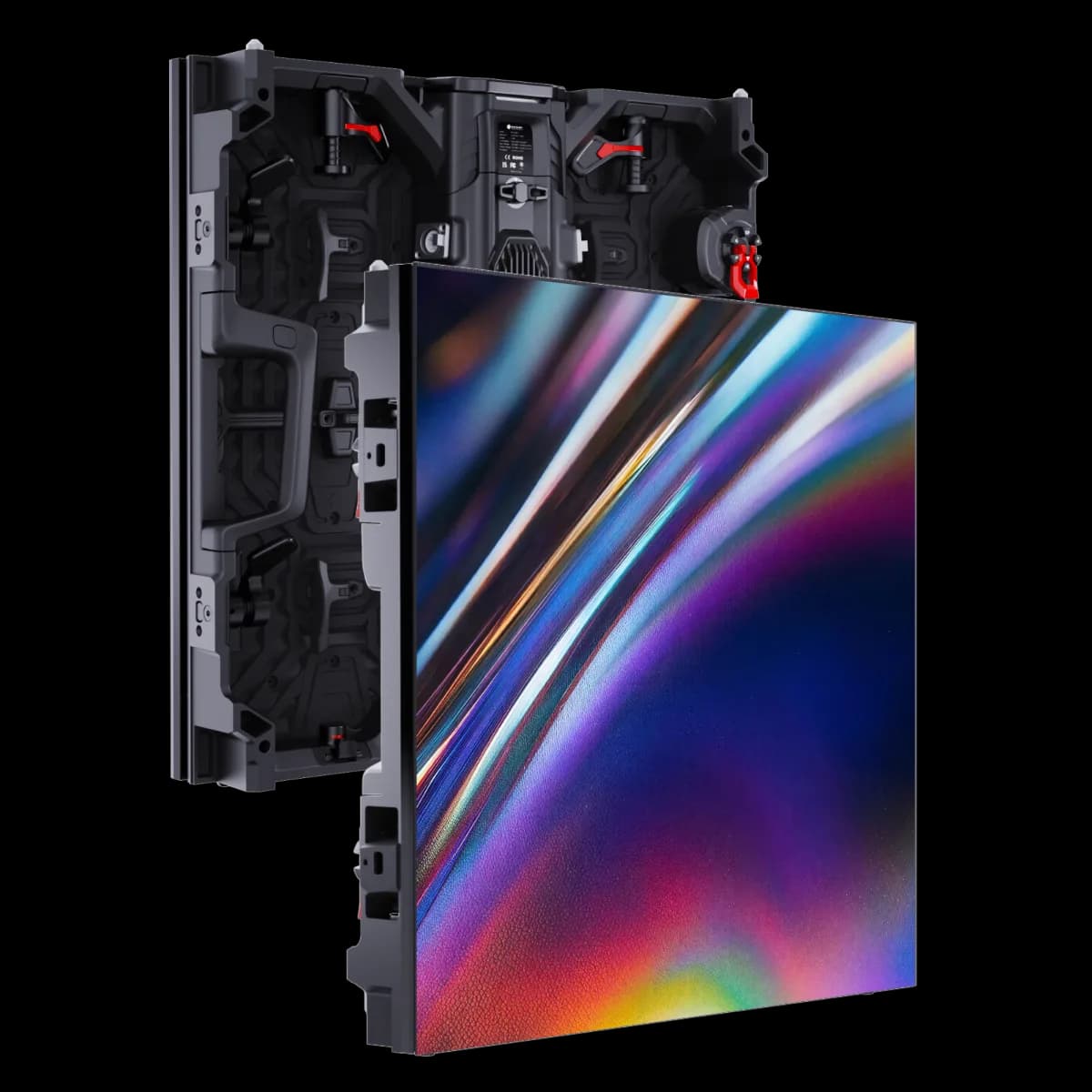

INFiLED IRDB1.9mk2 Ultra M2 LED cabinet

Physical

Pixel pitch
1.95 mm
Cabinet size (W×H×D)
500 × 500 × 76 mm
Weight
7.8 kg
Weight per m²
31.2 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
256 × 256 px (1:1)
Pixel density
262,144 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 160°
LED type
IMD
Processing depth
16 bit

Power & thermal

Max power
130 W
Average power
45 W
Max power per m²
520 W/m²
Average power per m²
180 W/m²
Thermal load
444 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, RoHS, REACH, WEEE

Manufacturer details

Driver ic
MY9758A
Scan rate
1/32
Brochure url
https://www.infiled.com/wp-content/uploads/2024/04/aaff_brochure_infiled_dbmk2_2025.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60 Hz
Led wavelength
R:622-629nm/G:520-531nm/B:471-480nm
Receiving card
Novastar
Pitch published
1,95mm
Power published
130 / 45 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
262.144 pixels/㎡
Weight published
7,8kg (17,20lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x250mm
Module resolution
128x128pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16 bit
Pixel configuration
IMD M2
Brightness published
1000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front / Rear

All variations in the DBmk2 series

All INFiLED cabinets →

Every INFiLED DBmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 65,536 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRDB1.9mk2 Ultra M2 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRDB1.9mk2 Ultra M2 draw?
Each INFiLED IRDB1.9mk2 Ultra M2 cabinet draws up to 130 W at full white and about 45 W with typical content — 520 W/m² max. A 10-cabinet wall therefore needs up to 1,300 W plus headroom.
What is the resolution of the INFiLED IRDB1.9mk2 Ultra M2?
One cabinet is 256 × 256 pixels at a 1.95 mm pixel pitch (262,144 px/m²). About 15 cabinets side by side reach 4K width (≈ 7.50 m).
How heavy is a INFiLED IRDB1.9mk2 Ultra M2 wall?
A single cabinet weighs 7.8 kg (31.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 117 kg before mounting structure.
Is the INFiLED IRDB1.9mk2 Ultra M2 suitable for outdoor use?
No — the INFiLED IRDB1.9mk2 Ultra M2 is an indoor cabinet (IP30 front). Its 1,000 nits suit controlled lighting, not direct sun.
