INFiLED IRDBmk2 2.6 Lite mini specs

The one-for-all indoor rental platform – flat, faceted, curved, right-angled, or cubed, all from one inventory, with guaranteed color matching across batches.

Pitch
1.56 mm1.95 mm2.6 mm
Size
500×500 mm250×500 mm
Nits
1,200 nits1,000 nits2,000 nits
Open in calculatorCompareControllersRunning costDatasheet

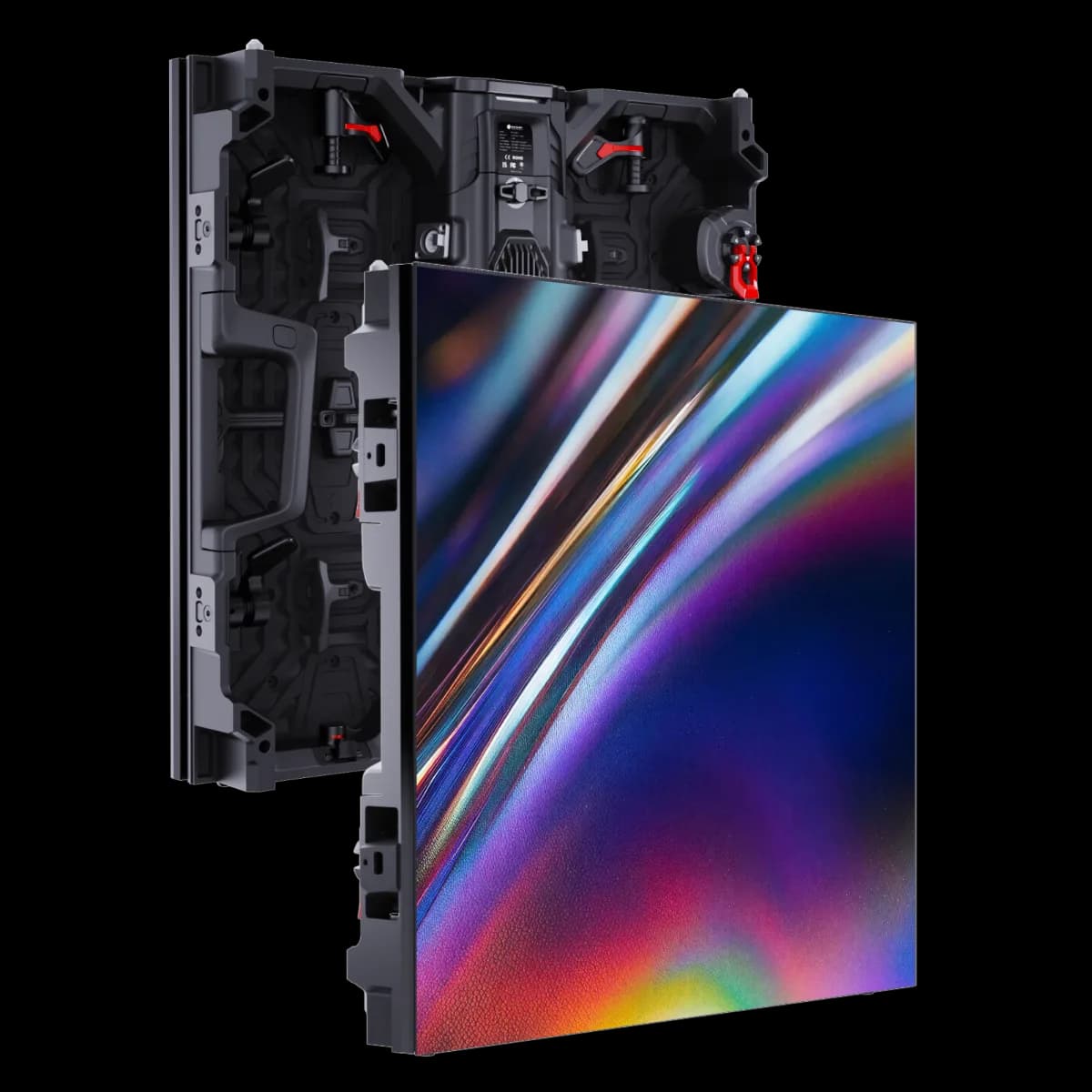

INFiLED IRDBmk2 2.6 Lite mini LED cabinet

Physical

Pixel pitch
2.6 mm
Cabinet size (W×H×D)
250 × 500 × 76 mm
Weight
8 kg
Weight per m²
64 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
96 × 192 px (1:2)
Pixel density
147,456 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
3,840 Hz
Contrast
5,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
150 W
Average power
50 W
Max power per m²
1,200 W/m²
Average power per m²
400 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, RoHS, ETL, Fireproof

Manufacturer details

Driver ic
PWM Driver Chip
Scan rate
1/24
Brochure url
https://www.infiled.com/wp-content/uploads/2024/04/aaff_brochure_infiled_dbmk2_2025.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
Rental Staging
Display colors
4.41T
Frame rates hz
50/60Hz
Led wavelength
R:622-629nm/G:520-531nm/B:471-480nm
Receiving card
Novastar
Pitch published
2,6mm
Power published
150 / 50 W/panel (max / avg)
Cabinet material
Die-cast Aluminum
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
147.456 pixels/㎡
Weight published
8kg (19,00lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x125mm
Module resolution
96x96pixels
Contrast published
5000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
1000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear

All variations in the DBmk2 series

All INFiLED cabinets →

Every INFiLED DBmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 18,432 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRDBmk2 2.6 Lite mini in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRDBmk2 2.6 Lite mini draw?
Each INFiLED IRDBmk2 2.6 Lite mini cabinet draws up to 150 W at full white and about 50 W with typical content — 1,200 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the INFiLED IRDBmk2 2.6 Lite mini?
One cabinet is 96 × 192 pixels at a 2.6 mm pixel pitch (147,456 px/m²). About 40 cabinets side by side reach 4K width (≈ 10.00 m).
How heavy is a INFiLED IRDBmk2 2.6 Lite mini wall?
A single cabinet weighs 8 kg (64 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 120 kg before mounting structure.
Is the INFiLED IRDBmk2 2.6 Lite mini suitable for outdoor use?
No — the INFiLED IRDBmk2 2.6 Lite mini is an indoor cabinet (IP30 front). Its 1,000 nits suit controlled lighting, not direct sun.
