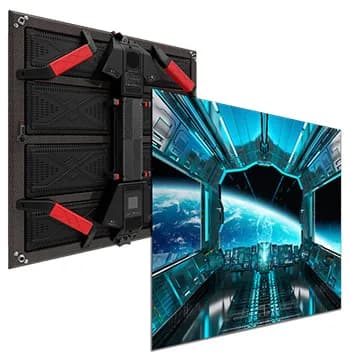

Planar CLI VX 1.9 B specs
Planar CarbonLight™ VX Series is comprised of carbon fiber-framed indoor LED video wall displays with exceptional on-camera visual properties and deployment versatility for a wide variety of installations, including virtual production and extended reality. Planar CarbonLight™ CLI VX Series video walls feature a narrow 1.9mm or 2.6mm pixel pitch.
Physical
- Pixel pitch
- 1.9531 mm
- Cabinet size (W×H×D)
- 500 × 500 × 63 mm
- Weight
- 4.1 kg
- Weight per m²
- 16.4 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 256 × 256 px (1:1)
- Pixel density
- 262,144 px/m²
- Brightness (calibrated)
- 1,500 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 4,000:1
- Viewing angle (H/V)
- 140° / 140°
- Processing depth
- 16 bit
Power & thermal
- Max power
- 225 W
- Average power
- 150 W
- Max power per m²
- 900 W/m²
- Average power per m²
- 600 W/m²
- Thermal load
- 768 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Usage
- rated indoor+outdoor
- Scan rate
- 1:8
- Marketed by
- Leyard Europe (EMEA)
- Power supply
- Single
- Storage temp
- -35 to 60 C
- Frame rates hz
- 24-144
- Cabinet variant
- B
- Pitch published
- 1.95mm
- Power published
- 225 W/cabinet (900 W/m2)
- Cabinet material
- Carbon Fiber
- Color temperature
- 3000-9000
- Refresh published
- 7680Hz
- Operating humidity
- 10-80% RH
All variations in the CarbonLight CLI VX series
All Planar cabinets →Every Planar CarbonLight CLI VX series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar CLI VX 1.91.9531 mm500×500 mm1,500 nits
- CLI VX 1.9 Bthis model1.9531 mm500×500 mm1,500 nits
- Planar CLI VX 2.62.6042 mm500×500 mm1,500 nits
- Planar CLI VX 2.6 B2.6042 mm500×500 mm1,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 65,536 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
3,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
3,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,151cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar CLI VX 1.9 B in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar CLI VX 1.9 B draw?
- Each Planar CLI VX 1.9 B cabinet draws up to 225 W at full white and about 150 W with typical content — 900 W/m² max. A 10-cabinet wall therefore needs up to 2,250 W plus headroom.
- What is the resolution of the Planar CLI VX 1.9 B?
- One cabinet is 256 × 256 pixels at a 1.9531 mm pixel pitch (262,144 px/m²). About 15 cabinets side by side reach 4K width (≈ 7.50 m).
- How heavy is a Planar CLI VX 1.9 B wall?
- A single cabinet weighs 4.1 kg (16.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 61 kg before mounting structure.
- Is the Planar CLI VX 1.9 B suitable for outdoor use?
- No — the Planar CLI VX 1.9 B is an indoor cabinet. Its 1,500 nits suit controlled lighting, not direct sun.
