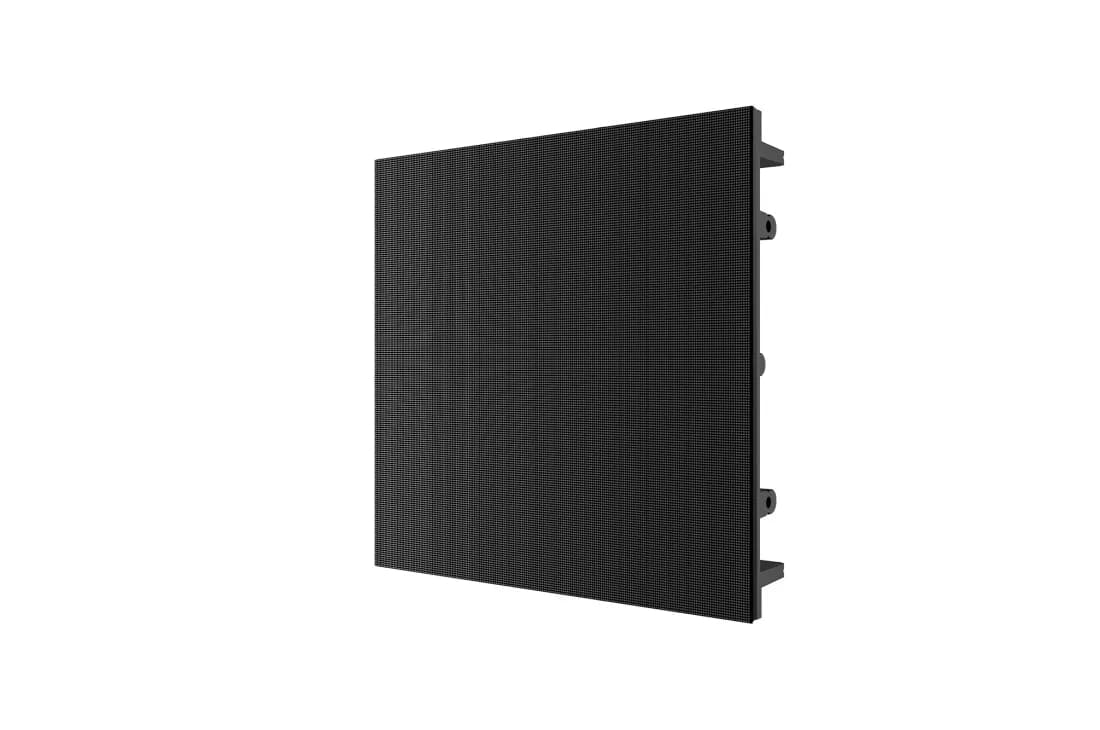

LG LSCC015 specs
The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.0 kg*, is the standout feature of this product. This sleek and lightweight design allows the LSCC series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.
Physical
- Pixel pitch
- 1.56 mm
- Cabinet size (W×H×D)
- 600 × 338 × 34 mm
- Weight
- 5 kg
- Weight per m²
- 24.7 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 384 × 216 px (16:9)
- Pixel density
- 409,600 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 112 W
- Average power
- 37 W
- Max power per m²
- 553 W/m²
- Average power per m²
- 183 W/m²
- Thermal load
- 382 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -10 to 45 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- Ultra Slim Depth and Lightweight Flexible Design
- Operating humidity
- 0 ~ 80%
- Pixel configuration
- Single SMD
All variations in the LSCC series
All LG cabinets →Every LG LSCC series cabinet and the exact pitch, size and brightness pairing it ships with.
- LSCC015this model1.56 mm600×338 mm800 nits
- LG LSCC0181.88 mm600×338 mm800 nits
- LG LSCC0252.5 mm600×338 mm800 nits
Controllers that drive this panel
All controllers →Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,699cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSCC015 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG LSCC015 draw?
- Each LG LSCC015 cabinet draws up to 112 W at full white and about 37 W with typical content — 553 W/m² max. A 10-cabinet wall therefore needs up to 1,120 W plus headroom.
- What is the resolution of the LG LSCC015?
- One cabinet is 384 × 216 pixels at a 1.56 mm pixel pitch (409,600 px/m²). About 10 cabinets side by side reach 4K width (≈ 6.00 m).
- How heavy is a LG LSCC015 wall?
- A single cabinet weighs 5 kg (24.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 75 kg before mounting structure.
- Is the LG LSCC015 suitable for outdoor use?
- No — the LG LSCC015 is an indoor cabinet (IP30 front). Its 800 nits suit controlled lighting, not direct sun.
