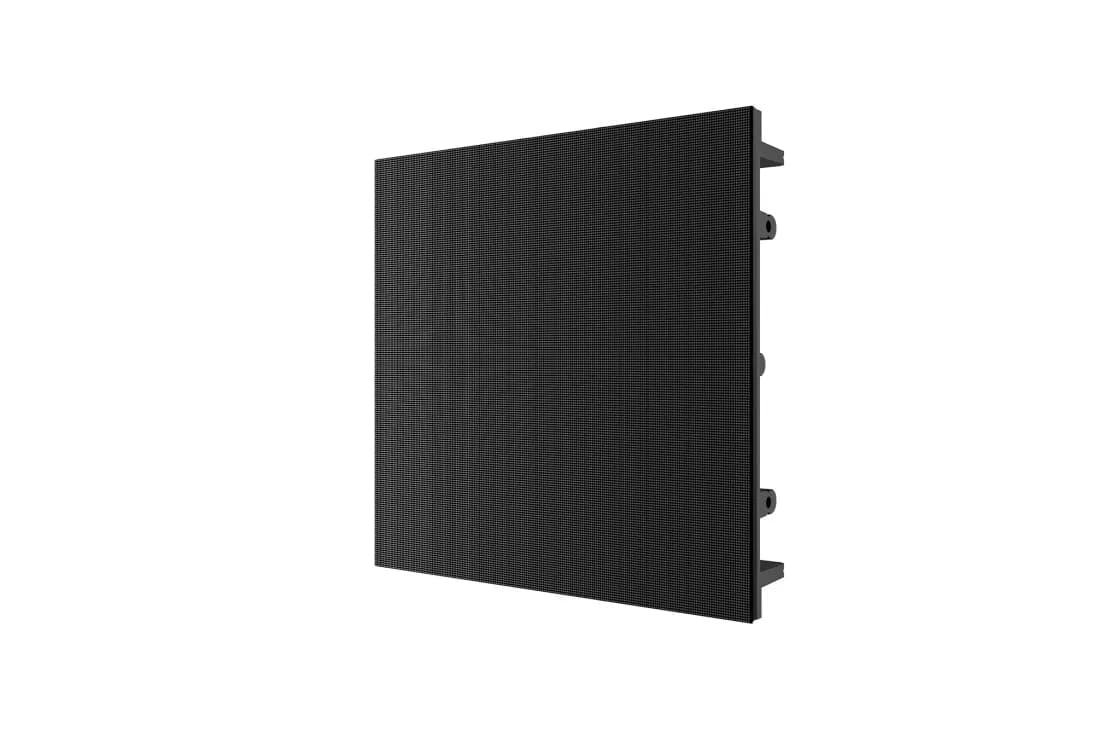

LG LSCC025 specs
The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.0 kg*, is the standout feature of this product. This sleek and lightweight design allows the LSCC series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.
Physical
- Pixel pitch
- 2.5 mm
- Cabinet size (W×H×D)
- 600 × 338 × 34 mm
- Weight
- 5 kg
- Weight per m²
- 24.7 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 240 × 135 px (16:9)
- Pixel density
- 160,000 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 84 W
- Average power
- 28 W
- Max power per m²
- 415 W/m²
- Average power per m²
- 138 W/m²
- Thermal load
- 287 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -10 to 45 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- Ultra Slim Depth and Lightweight Flexible Design
- Operating humidity
- 0 ~ 80%
- Pixel configuration
- Single SMD
All variations in the LSCC series
All LG cabinets →Every LG LSCC series cabinet and the exact pitch, size and brightness pairing it ships with.
- LG LSCC0151.56 mm600×338 mm800 nits
- LG LSCC0181.88 mm600×338 mm800 nits
- LSCC025this model2.5 mm600×338 mm800 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
8,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
8,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,351cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
4,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
2,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
2,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSCC025 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG LSCC025 draw?
- Each LG LSCC025 cabinet draws up to 84 W at full white and about 28 W with typical content — 415 W/m² max. A 10-cabinet wall therefore needs up to 840 W plus headroom.
- What is the resolution of the LG LSCC025?
- One cabinet is 240 × 135 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 16 cabinets side by side reach 4K width (≈ 9.60 m).
- How heavy is a LG LSCC025 wall?
- A single cabinet weighs 5 kg (24.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 75 kg before mounting structure.
- Is the LG LSCC025 suitable for outdoor use?
- No — the LG LSCC025 is an indoor cabinet (IP30 front). Its 800 nits suit controlled lighting, not direct sun.
