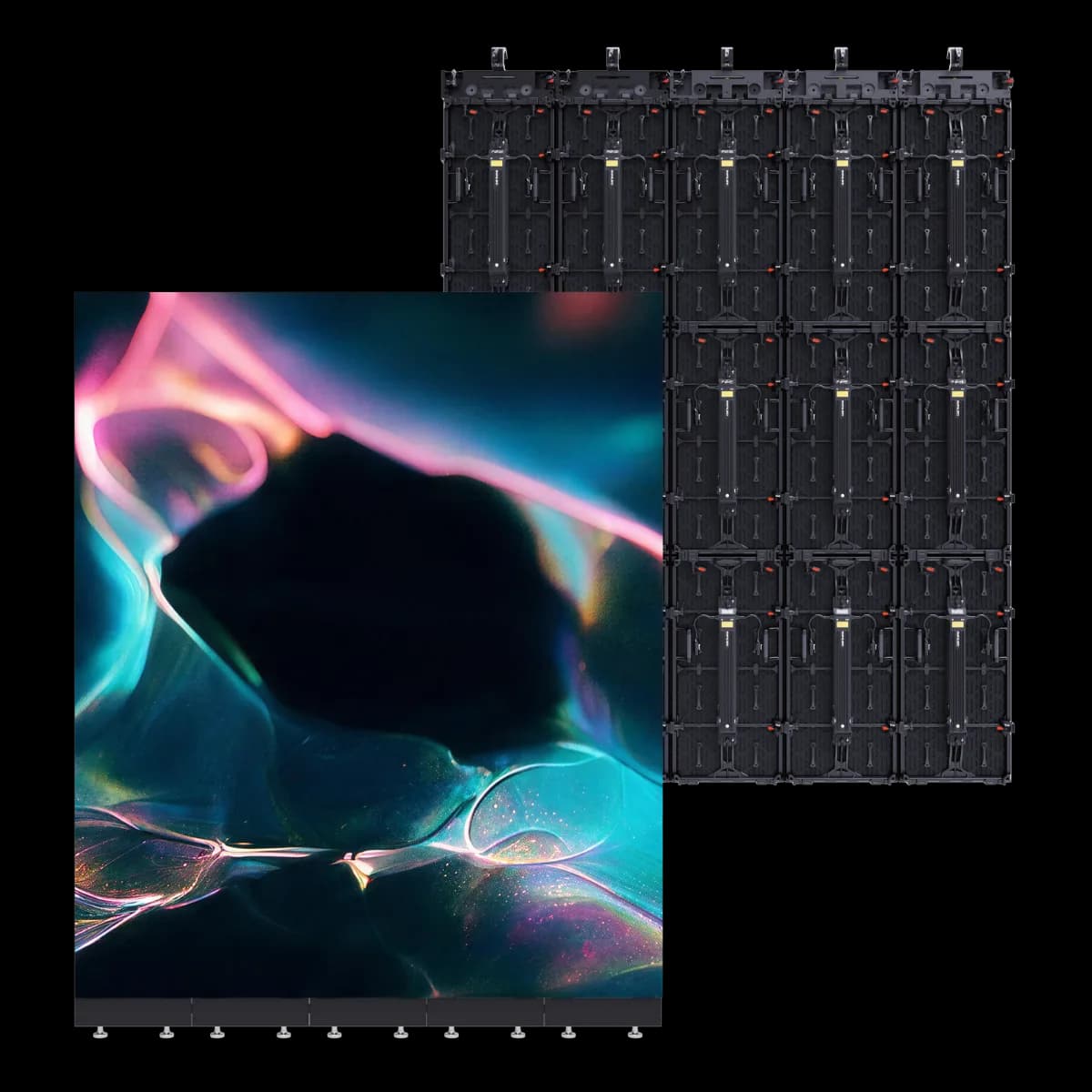

INFiLED ORAP6.9 mini LED cabinet

Physical

Pixel pitch
6.94 mm
Cabinet size (W×H×D)
500 × 500 × 82 mm
Weight
5.7 kg
Weight per m²
22.8 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
72 × 72 px (1:1)
Pixel density
20,736 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 110°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
150 W
Average power
50 W
Max power per m²
600 W/m²
Average power per m²
200 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH, WEEE

Manufacturer details

Driver ic
ICND2153S
Scan rate
1/6
Brochure url
https://www.infiled.com/wp-content/uploads/2024/06/ap-series-digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0
Site category
Rental Staging
Display colors
281T
Frame rates hz
50/60/100/120 Hz
Led wavelength
R: 620-625nm / G:510-535nm / B: 458-475nm
Receiving card
Novastar
Pitch published
6,94mm
Power published
150 / 50 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernetcable≤ 100m or Fiber Optic≤ 15km
Physical density
20.736 pixels/㎡
Weight published
5,7kg (12,57lb)
Color temperature
6500K(3500K~9000K adjustable)
Module dimensions
250x500mm
Module resolution
36x72pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16 bit
Pixel configuration
3-in-1 SMD
Brightness published
5000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear (select one)

All variations in the AP series

All INFiLED cabinets →

Every INFiLED AP series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 5,184 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORAP6.9 mini in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORAP6.9 mini draw?
Each INFiLED ORAP6.9 mini cabinet draws up to 150 W at full white and about 50 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the INFiLED ORAP6.9 mini?
One cabinet is 72 × 72 pixels at a 6.94 mm pixel pitch (20,736 px/m²). About 53 cabinets side by side reach 4K width (≈ 26.50 m).
How heavy is a INFiLED ORAP6.9 mini wall?
A single cabinet weighs 5.7 kg (22.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 86 kg before mounting structure.
Is the INFiLED ORAP6.9 mini suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
