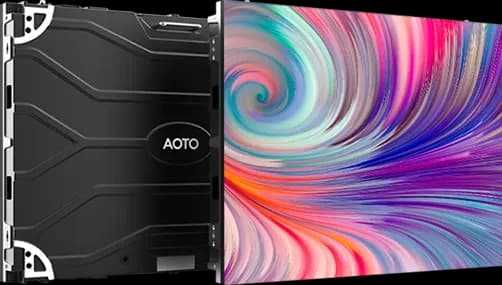

AOTO U1.8ES specs
The U-Series is constructed of a die-cast aluminum frame that has been CNC machined to extremely precise tolerances. Excellent EMC performance is achieved by superior circuitry and modular design. Our self-developed control mechanism can provide a high refresh rate while also less consuming power, as well as HDR wide color gamut. There are varieties of screen sizes available, and also several building methods are optional.
Physical
- Pixel pitch
- 1.86047 mm
- Cabinet size (W×H×D)
- 640 × 480 × 63 mm
- Weight
- 7.1 kg
- Weight per m²
- 23.1 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 344 × 258 px (4:3)
- Pixel density
- 288,906 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
Power & thermal
- Max power
- 120 W
- Average power
- 45 W
- Max power per m²
- 391 W/m²
- Average power per m²
- 146 W/m²
- Thermal load
- 409 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 50,000 h
Manufacturer details
- Site category
- Fixed Installation
- Pitch published
- 1.86mm
- Cabinet material
- die-cast aluminium
- Module dimensions
- 320×160 mm
- Module resolution
- 172×86
- Operating humidity
- 10-80% RH
All variations in the U series
All AOTO cabinets →Every AOTO U series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO U1.5ES1.53846 mm640×480 mm600 nits
- U1.8ESthis model1.86047 mm640×480 mm800 nits
- AOTO U2.5ES2.5 mm640×480 mm800 nits
Controllers that drive this panel
All controllers →Each cabinet carries 88,752 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,588cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO U1.8ES in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO U1.8ES draw?
- Each AOTO U1.8ES cabinet draws up to 120 W at full white and about 45 W with typical content — 391 W/m² max. A 10-cabinet wall therefore needs up to 1,200 W plus headroom.
- What is the resolution of the AOTO U1.8ES?
- One cabinet is 344 × 258 pixels at a 1.86047 mm pixel pitch (288,906 px/m²). About 11 cabinets side by side reach 4K width (≈ 7.04 m).
- How heavy is a AOTO U1.8ES wall?
- A single cabinet weighs 7.1 kg (23.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 107 kg before mounting structure.
- Is the AOTO U1.8ES suitable for outdoor use?
- No — the AOTO U1.8ES is an indoor cabinet (IP30 front). Its 800 nits suit controlled lighting, not direct sun.
