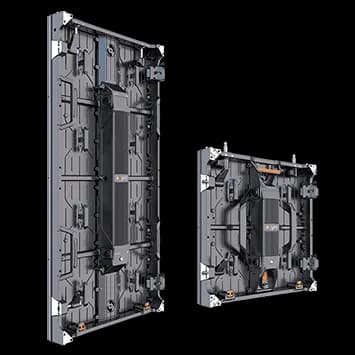

Absen PL3.9 Pro XL V10 L specs
Mainstream Indoor & Outdoor Rental Solution
Physical
- Pixel pitch
- 3.9 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 88 mm
- Weight
- 13.7 kg
- Weight per m²
- 27.4 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 128 × 256 px (1:2)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 4,500 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 7,500:1
- Viewing angle (H/V)
- 140° / 100°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 340 W
- Average power
- 115 W
- Max power per m²
- 680 W/m²
- Average power per m²
- 230 W/m²
- Thermal load
- 1,160 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- 10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • Up to 1500nits brightness U • p to 16bit grayscale • 3840/ 7680Hz refresh rate • Innovative IMD technology (applied to PL1.9 Pro V10) • UltraBlack technology (applied to PL2.5 Pro V10)
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- Black SMD 3in1 1921
All variations in the Polaris series
All Absen cabinets →Every Absen Polaris series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen PL1.9 Pro V101.95 mm500×500 mm1,200 nits
- Absen PL2.5 Pro V102.5 mm500×500 mm1,500 nits
- Absen PL2.5 Pro V10 i2.5 mm500×500 mm1,500 nits
- Absen PL2.9 V102.97 mm500×500 mm1,000 nits
- Absen PL2.9 XL V10 L2.97 mm500×1000 mm1,000 nits
- Absen PL3.9 Pro V103.9 mm500×500 mm4,500 nits
- PL3.9 Pro XL V10 Lthis model3.9 mm500×1000 mm4,500 nits
- Absen PL3.9 V103.9 mm500×500 mm1,000 nits
- Absen PL3.9 XL V10 L3.9 mm500×1000 mm1,000 nits
- Absen PL4.8 Pro V104.8 mm500×500 mm4,500 nits
- Absen PL4.8 Pro XL V10 L4.8 mm500×1000 mm4,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
7,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
7,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,302cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen PL3.9 Pro XL V10 L in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen PL3.9 Pro XL V10 L draw?
- Each Absen PL3.9 Pro XL V10 L cabinet draws up to 340 W at full white and about 115 W with typical content — 680 W/m² max. A 10-cabinet wall therefore needs up to 3,400 W plus headroom.
- What is the resolution of the Absen PL3.9 Pro XL V10 L?
- One cabinet is 128 × 256 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a Absen PL3.9 Pro XL V10 L wall?
- A single cabinet weighs 13.7 kg (27.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 206 kg before mounting structure.
- Is the Absen PL3.9 Pro XL V10 L suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 4,500 nits of calibrated brightness.
