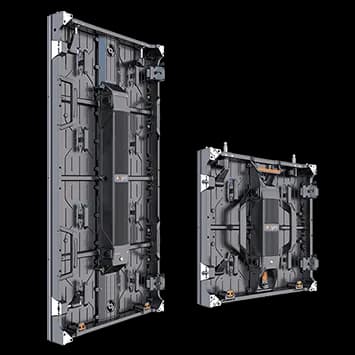

Absen PL2.9 V10 specs
Mainstream Indoor & Outdoor Rental Solution
Physical
- Pixel pitch
- 2.97 mm
- Cabinet size (W×H×D)
- 500 × 500 × 88 mm
- Weight
- 8 kg
- Weight per m²
- 32 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 168 × 168 px (1:1)
- Pixel density
- 112,896 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 5,500:1
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 135 W
- Average power
- 45 W
- Max power per m²
- 540 W/m²
- Average power per m²
- 180 W/m²
- Thermal load
- 461 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP21
- Operating temperature
- 10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • Up to 1500nits brightness U • p to 16bit grayscale • 3840/ 7680Hz refresh rate • Innovative IMD technology (applied to PL1.9 Pro V10) • UltraBlack technology (applied to PL2.5 Pro V10)
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- Black SMD 3in1 2121
All variations in the Polaris series
All Absen cabinets →Every Absen Polaris series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen PL1.9 Pro V101.95 mm500×500 mm1,200 nits
- Absen PL2.5 Pro V102.5 mm500×500 mm1,500 nits
- Absen PL2.5 Pro V10 i2.5 mm500×500 mm1,500 nits
- PL2.9 V10this model2.97 mm500×500 mm1,000 nits
- Absen PL2.9 XL V10 L2.97 mm500×1000 mm1,000 nits
- Absen PL3.9 Pro V103.9 mm500×500 mm4,500 nits
- Absen PL3.9 Pro XL V10 L3.9 mm500×1000 mm4,500 nits
- Absen PL3.9 V103.9 mm500×500 mm1,000 nits
- Absen PL3.9 XL V10 L3.9 mm500×1000 mm1,000 nits
- Absen PL4.8 Pro V104.8 mm500×500 mm4,500 nits
- Absen PL4.8 Pro XL V10 L4.8 mm500×1000 mm4,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 28,224 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
9,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
9,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,995cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
4,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
2,300cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
2,300cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen PL2.9 V10 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen PL2.9 V10 draw?
- Each Absen PL2.9 V10 cabinet draws up to 135 W at full white and about 45 W with typical content — 540 W/m² max. A 10-cabinet wall therefore needs up to 1,350 W plus headroom.
- What is the resolution of the Absen PL2.9 V10?
- One cabinet is 168 × 168 pixels at a 2.97 mm pixel pitch (112,896 px/m²). About 23 cabinets side by side reach 4K width (≈ 11.50 m).
- How heavy is a Absen PL2.9 V10 wall?
- A single cabinet weighs 8 kg (32 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 120 kg before mounting structure.
- Is the Absen PL2.9 V10 suitable for outdoor use?
- No — the Absen PL2.9 V10 is an indoor cabinet (IP40 front). Its 1,000 nits suit controlled lighting, not direct sun.
