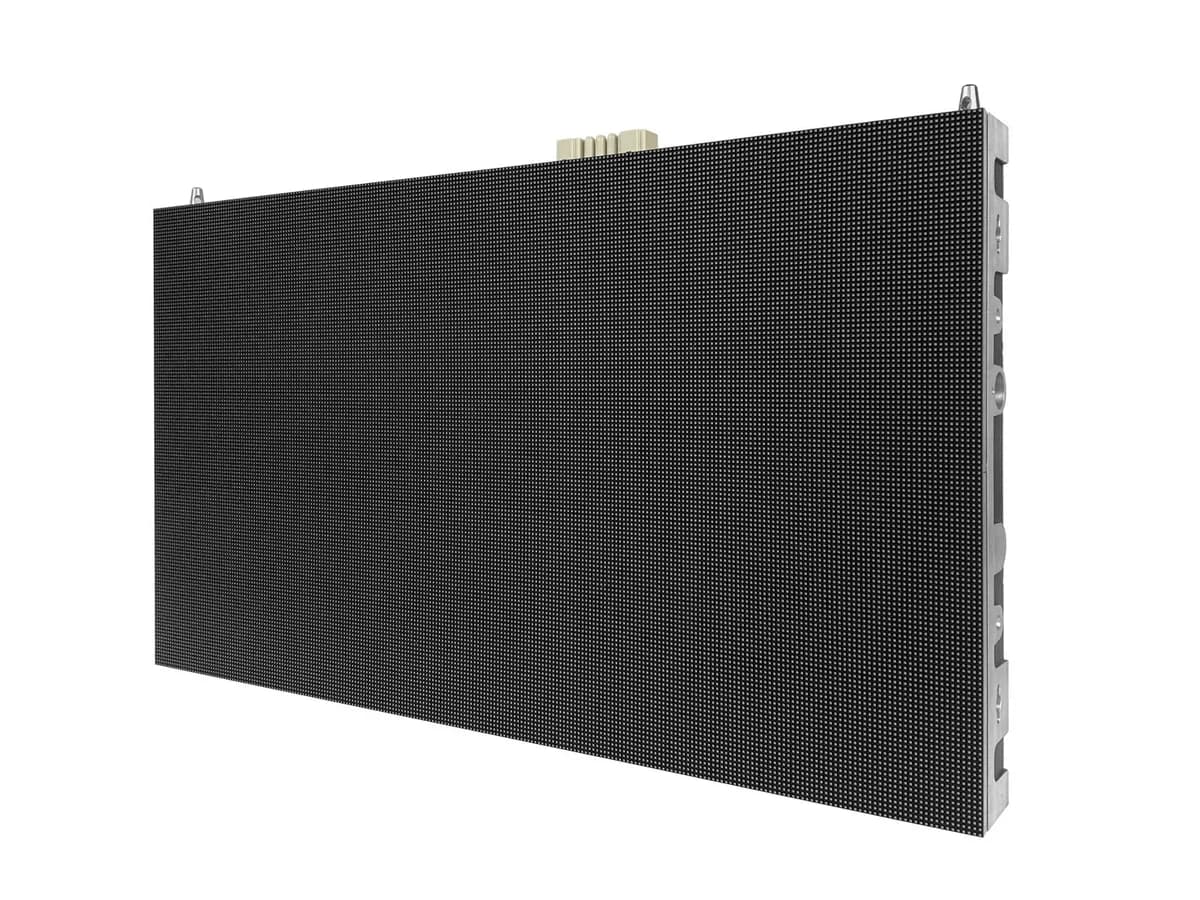

Sharp LD-FE093-104 specs
Engineered for efficiency, without compromise. For bezel-free visual impact and long-lasting performance, the Sharp LD-FE3 Series sets a new benchmark in energy-efficient dvLED display technology. Built on NEC's legacy of engineering excellence, the third-generation FE Series features advanced Flip-Chip technology and industrial-grade components to deliver vibrant, high-contrast imagery while reducing energy consumption and heat output by up to 60%. The result is a substantial reduction in operating costs and HVAC demands, without compromising visual precision or performance.
Physical
- Pixel pitch
- 0.95 mm
- Cabinet size (W×H×D)
- 2,444 × 1,083 × 74 mm
- Weight
- 139.4 kg
- Weight per m²
- 52.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 2,560 × 1,080 px (64:27)
- Pixel density
- 1,044,562 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 4,000:1
- Viewing angle (H/V)
- 170° / 170°
- LED type
- IMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 420 W
- Average power
- 240 W
- Max power per m²
- 159 W/m²
- Average power per m²
- 91 W/m²
- Thermal load
- 1,433 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, EMC Class B, ETL, FCC Class A, RoHS
Manufacturer details
- Layout
- 4x3
- Warranty
- 3 years
- Scan rate
- 1/46 dynamic scan
- Order code
- LDFE093-104
- Module model
- LD-FE093
- Product kind
- bundle
- Video inputs
- 1 x HDMI
- Product group
- Indoor LED 0.9 mm 104" UW-HD Bundle
- Site category
- Mainstream Indoor
- Active area mm
- 2432 x 1026
- Control inputs
- 1 x LAN
- Cabinet material
- Aluminum Cabinet
- Shipping content
- 1x LED Controller; LED Modules (12 Cabinets, 96 Pixel Cards); Overframe Kit (4x3); Pixel Card Removal Tool; Spare Parts Kit; Wall mount (4x3)
- Color temperature
- 3000-9500 K
- Frame overhead mm
- 12 x 57
- Module dimensions
- 608 x 342 x 49 mm
- Module resolution
- 640x360
- Contrast published
- 4000:1
- Display resolution
- 2560x1080
- Lifetime published
- 100000 hrs (50% brightness)
- Grayscale published
- 16 bit
- Pixel configuration
- FlipChip IMD (1616) / 4-in-1 IMD (Black)
- Brightness published
- 600 cd/m² (max.)
- Refresh rate published
- ≤ 3840 Hz
All variations in the LD-FE series
All Sharp cabinets →Every Sharp LD-FE series cabinet and the exact pitch, size and brightness pairing it ships with.
- Sharp LD-FE0920.95 mm608×342 mm600 nits
- Sharp LD-FE092-U0.95 mm3648×2172 mm600 nits
- Sharp LD-FE0930.95 mm608×342 mm600 nits
- LD-FE093-104this model0.95 mm2444×1083 mm600 nits
- Sharp LD-FE093-1100.95 mm2444×1476 mm600 nits
- Sharp LD-FE093-1650.95 mm3660×2160 mm600 nits
- Sharp LD-FE1221.2667 mm608×342 mm700 nits
- Sharp LD-FE122-F1.2667 mm2432×1488 mm700 nits
- Sharp LD-FE122-U1.2667 mm4907×2856 mm700 nits
- Sharp LD-FE1231.2667 mm608×342 mm700 nits
- Sharp LD-FE123-1101.2667 mm2444×1476 mm700 nits
- Sharp LD-FE123-2201.2667 mm4876×2844 mm700 nits
- Sharp LD-FE123-F1.2667 mm2444×1476 mm700 nits
- Sharp LD-FE123-U1.2667 mm4876×2844 mm700 nits
- Sharp LD-FE1521.5833 mm608×342 mm700 nits
- Sharp LD-FE152-F1.5833 mm3040×1830 mm700 nits
- Sharp LD-FE1531.5833 mm608×342 mm700 nits
- Sharp LD-FE153-1371.5833 mm3052×1818 mm700 nits
- Sharp LD-FE153-F1.5833 mm3052×1818 mm700 nits
- Sharp LD-FE1921.9 mm608×342 mm700 nits
- Sharp LD-FE192-F1.9 mm3648×2172 mm700 nits
- Sharp LD-FE1931.9 mm608×342 mm700 nits
- Sharp LD-FE193-1651.9 mm3660×2160 mm700 nits
- Sharp LD-FE193-F1.9 mm3660×2160 mm700 nits
- Sharp LD-FE2522.5333 mm608×342 mm1,000 nits
- Sharp LD-FE252-F2.5333 mm4907×2856 mm1,000 nits
- Sharp LD-FE3123.1667 mm608×342 mm1,000 nits
- Sharp LD-FE3823.8 mm608×342 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 2,764,800 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- NovaStar MX6000 ProNovaStarConfirm ecosystem
50cabinets
64 × Mixed141M px total · capacity-bound
Wire it - Brompton Technology Tessera SQ200BromptonConfirm ecosystem
12cabinets
2 × Fibre36M px total · port-bound
Wire it - LG CEAAManufacturer's ownConfirm ecosystem
12cabinets
12 × Fibre33.2M px total · port-bound
Wire it - NovaStar MX2000 ProNovaStarConfirm ecosystem
12cabinets
16 × Mixed35.4M px total · capacity-bound
Wire it - Megapixel VR HELIOS 8KMegapixelConfirm ecosystem
8cabinets
8 × Fibre35M px total · port-bound
Wire it - Samsung SNOW-AAEManufacturer's ownConfirm ecosystem
8cabinets
8 × Fibre33.2M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Sharp LD-FE093-104 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Sharp LD-FE093-104 draw?
- Each Sharp LD-FE093-104 cabinet draws up to 420 W at full white and about 240 W with typical content — 159 W/m² max. A 10-cabinet wall therefore needs up to 4,200 W plus headroom.
- What is the resolution of the Sharp LD-FE093-104?
- One cabinet is 2,560 × 1,080 pixels at a 0.95 mm pixel pitch (1,044,562 px/m²). About 2 cabinets side by side reach 4K width (≈ 4.89 m).
- How heavy is a Sharp LD-FE093-104 wall?
- A single cabinet weighs 139.4 kg (52.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 2,091 kg before mounting structure.
- Is the Sharp LD-FE093-104 suitable for outdoor use?
- No — the Sharp LD-FE093-104 is an indoor cabinet (IP20 front). Its 600 nits suit controlled lighting, not direct sun.
