1.2667 mm pitchIndoorSMD

Sharp LD-FE123-F specs

Engineered for efficiency, without compromise. For bezel-free visual impact and long-lasting performance, the Sharp LD-FE3 Series sets a new benchmark in energy-efficient dvLED display technology. Built on NEC's legacy of engineering excellence, the third-generation FE Series features advanced Flip-Chip technology and industrial-grade components to deliver vibrant, high-contrast imagery while reducing energy consumption and heat output by up to 60%. The result is a substantial reduction in operating costs and HVAC demands, without compromising visual precision or performance.

Pitch
0.95 mm1.2667 mm1.5833 mm1.9 mm2.5333 mm3.1667 mm3.8 mm
Size
608×342 mm3648×2172 mm2444×1083 mm2444×1476 mm3660×2160 mm2432×1488 mm4907×2856 mm4876×2844 mm3040×1830 mm3052×1818 mm
Nits
600 nits700 nits1,000 nits
Open in calculatorCompareControllersRunning costDatasheet

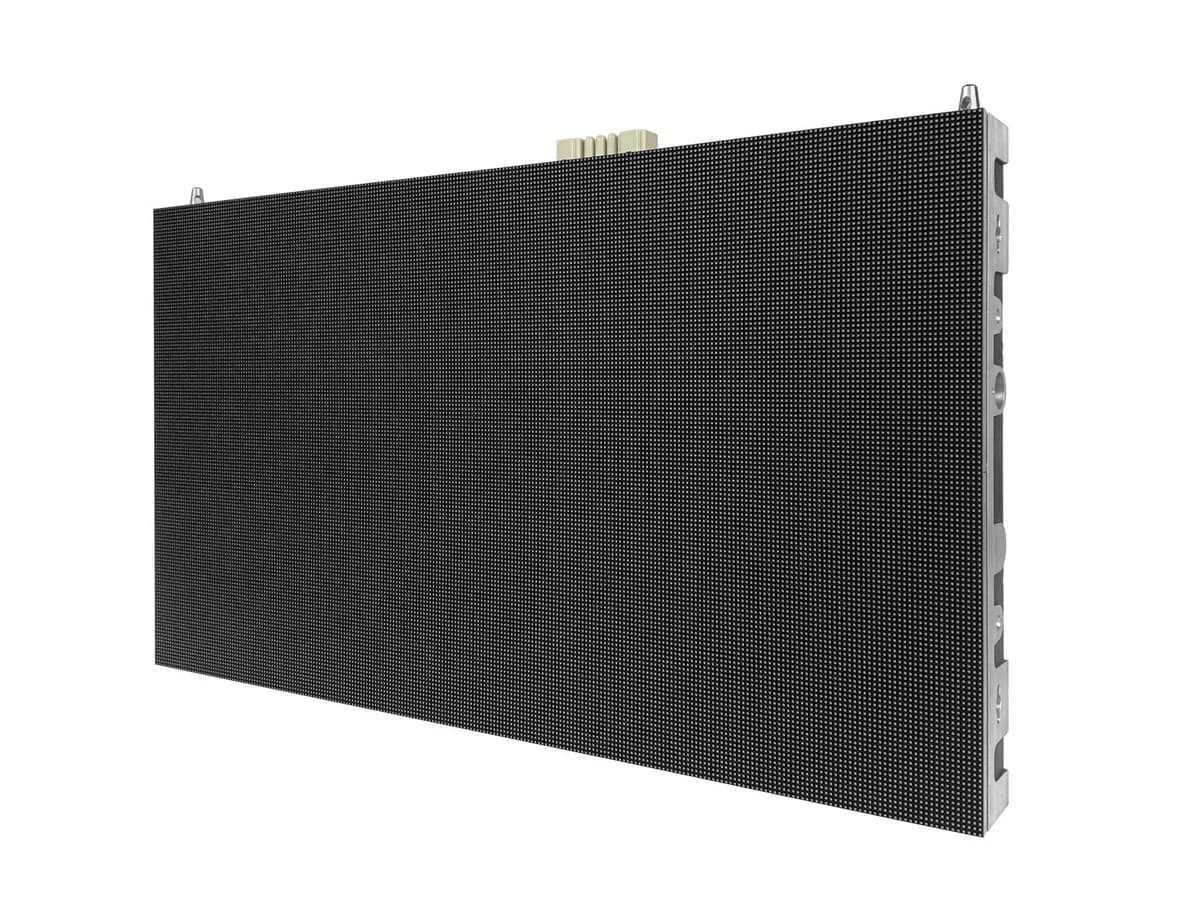

Sharp LD-FE123-F LED cabinet

Physical

Pixel pitch
1.2667 mm
Cabinet size (W×H×D)
2,444 × 1,476 × 78 mm
Weight
182 kg
Weight per m²
50.5 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
1,920 × 1,080 px (16:9)
Pixel density
575,022 px/m²
Brightness (calibrated)
700 nits
Refresh rate
3,840 Hz
Contrast
8,000:1
Viewing angle (H/V)
170° / 160°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
608 W
Average power
352 W
Max power per m²
169 W/m²
Average power per m²
98 W/m²
Thermal load
2,074 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP20
IP rating (rear)
IP20
Operating temperature
-20 to 40 °C
LED lifetime
100,000 h
Certifications
CE, EMC Class B, ETL, FCC Class A, RoHS

Manufacturer details

Layout
4x4
Warranty
3 years
Scan rate
1/45 dynamic scan
Module model
LD-FE123
Product kind
bundle
Video inputs
1 x 3G SDI; 1 x DVI-D; 1 x HDMI
Product group
1.2mm Full HD 110" dvLED kit
Site category
US catalogue
Active area mm
2432 x 1368
Cabinet material
Aluminum Cabinet
Color temperature
3000-9500 K
Frame overhead mm
12 x 107.5
Module dimensions
608 x 342 x 49 mm
Module resolution
480x270
Contrast published
8000:1
Display resolution
1920x1080
Lifetime published
100000 hrs (50% brightness)
Grayscale published
16 bit
Pixel configuration
FlipChip SMD (1010) / 3-in-1 SMD (Black)
Brightness published
700 cd/m² typical / 770 cd/m² maximum
Refresh rate published
≤ 3840 Hz

All variations in the LD-FE series

All Sharp cabinets →

Every Sharp LD-FE series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 2,073,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Sharp LD-FE123-F in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Sharp LD-FE123-F draw?
Each Sharp LD-FE123-F cabinet draws up to 608 W at full white and about 352 W with typical content — 169 W/m² max. A 10-cabinet wall therefore needs up to 6,080 W plus headroom.
What is the resolution of the Sharp LD-FE123-F?
One cabinet is 1,920 × 1,080 pixels at a 1.2667 mm pixel pitch (575,022 px/m²). About 2 cabinets side by side reach 4K width (≈ 4.89 m).
How heavy is a Sharp LD-FE123-F wall?
A single cabinet weighs 182 kg (50.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 2,730 kg before mounting structure.
Is the Sharp LD-FE123-F suitable for outdoor use?
No — the Sharp LD-FE123-F is an indoor cabinet (IP20 front). Its 700 nits suit controlled lighting, not direct sun.
