Sharp LD-FE123-U specs

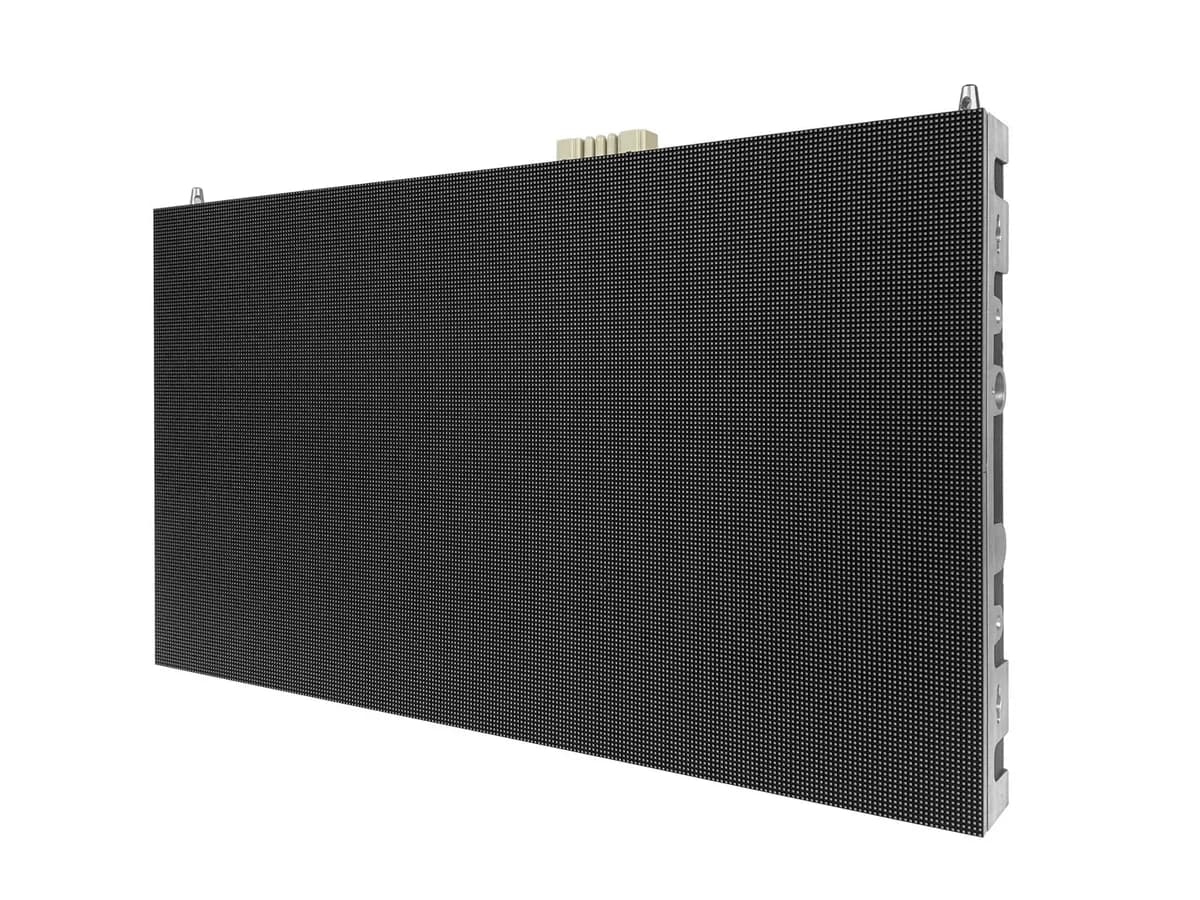

The Sharp LD-FE Series 3 provides uncompromising LED imaging in a power-efficient, cost effective package. This 220" UHD kit is built with Sharp's 1.26mm LD-FE123 module designed to deliver impressive content visualization and is ideal for viewing from 3 to 7 feet away. Boardrooms, auditoriums, retail and airport signage, situational awareness, and museums are just some of the applications where the Sharp LD-FE Series 3 is designed to be integrated. The FE Series 3 is engineered with innovative Multi-Color Flip-Chip SMDs that provide excellent brightness and contrast with industry-leading power efficiency among SMD products. The front serviceable design allows easy access and quick maintenance when needed. Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important – your business.
Physical
- Pixel pitch
- 1.2667 mm
- Cabinet size (W×H×D)
- 4,876 × 2,844 × 78 mm
- Weight
- 659.2 kg
- Weight per m²
- 47.5 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 3,840 × 2,160 px (16:9)
- Pixel density
- 598,230 px/m²
- Brightness (calibrated)
- 700 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 8,000:1
- Viewing angle (H/V)
- 170° / 160°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 1,824 W
- Average power
- 1,056 W
- Max power per m²
- 132 W/m²
- Average power per m²
- 76 W/m²
- Thermal load
- 6,223 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, EMC Class B, ETL, FCC Class A, RoHS
Manufacturer details
- Layout
- 8x8
- Warranty
- 3 years
- Scan rate
- 1/45 dynamic scan
- Module model
- LD-FE123
- Product kind
- bundle
- Video inputs
- 1 x 3G SDI; 1 x DVI-D; 1 x HDMI
- Product group
- 1.2mm UHD 220" dvLED display kit
- Site category
- US catalogue
- Active area mm
- 4864 x 2736
- Cabinet material
- Aluminum Cabinet
- Color temperature
- 3000-9500 K
- Frame overhead mm
- 12 x 107.5
- Module dimensions
- 608 x 342 x 49 mm
- Module resolution
- 480x270
- Contrast published
- 8000:1
- Display resolution
- 3840x2160
- Lifetime published
- 100000 hrs (50% brightness)
- Grayscale published
- 16 bit
- Pixel configuration
- FlipChip SMD (1010) / 3-in-1 SMD (Black)
- Brightness published
- 700 cd/m² typical / 770 cd/m² maximum
- Refresh rate published
- ≤ 3840 Hz
All variations in the LD-FE series
All Sharp cabinets →Every Sharp LD-FE series cabinet and the exact pitch, size and brightness pairing it ships with.
- Sharp LD-FE0920.95 mm608×342 mm600 nits
- Sharp LD-FE092-U0.95 mm3648×2172 mm600 nits
- Sharp LD-FE0930.95 mm608×342 mm600 nits
- Sharp LD-FE093-1040.95 mm2444×1083 mm600 nits
- Sharp LD-FE093-1100.95 mm2444×1476 mm600 nits
- Sharp LD-FE093-1650.95 mm3660×2160 mm600 nits
- Sharp LD-FE1221.2667 mm608×342 mm700 nits
- Sharp LD-FE122-F1.2667 mm2432×1488 mm700 nits
- Sharp LD-FE122-U1.2667 mm4907×2856 mm700 nits
- Sharp LD-FE1231.2667 mm608×342 mm700 nits
- Sharp LD-FE123-1101.2667 mm2444×1476 mm700 nits
- Sharp LD-FE123-2201.2667 mm4876×2844 mm700 nits
- Sharp LD-FE123-F1.2667 mm2444×1476 mm700 nits
- LD-FE123-Uthis model1.2667 mm4876×2844 mm700 nits
- Sharp LD-FE1521.5833 mm608×342 mm700 nits
- Sharp LD-FE152-F1.5833 mm3040×1830 mm700 nits
- Sharp LD-FE1531.5833 mm608×342 mm700 nits
- Sharp LD-FE153-1371.5833 mm3052×1818 mm700 nits
- Sharp LD-FE153-F1.5833 mm3052×1818 mm700 nits
- Sharp LD-FE1921.9 mm608×342 mm700 nits
- Sharp LD-FE192-F1.9 mm3648×2172 mm700 nits
- Sharp LD-FE1931.9 mm608×342 mm700 nits
- Sharp LD-FE193-1651.9 mm3660×2160 mm700 nits
- Sharp LD-FE193-F1.9 mm3660×2160 mm700 nits
- Sharp LD-FE2522.5333 mm608×342 mm1,000 nits
- Sharp LD-FE252-F2.5333 mm4907×2856 mm1,000 nits
- Sharp LD-FE3123.1667 mm608×342 mm1,000 nits
- Sharp LD-FE3823.8 mm608×342 mm1,000 nits
