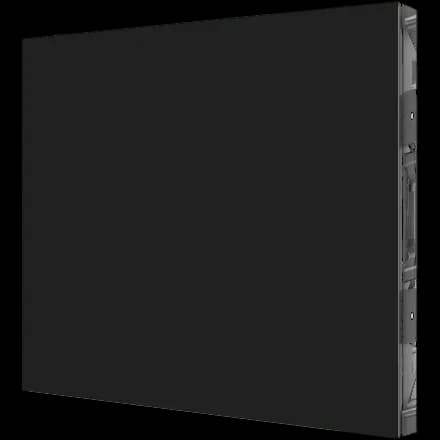

Samsung IS059C-X specs
Uplevel the spectacle with immersive displays. Samsung's ISC series indoor LED display exceeds fans' visual expectations with uninterrupted and brilliant content.
Physical
- Pixel pitch
- 5.9 mm
- Cabinet size (W×H×D)
- 500 × 500 × 64 mm
- Weight
- 7.9 kg
- Weight per m²
- 31.6 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 84 × 84 px (1:1)
- Pixel density
- 28,224 px/m²
- Brightness (calibrated)
- 2,000 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
Power & thermal
- Max power
- 90 W
- Average power
- 27 W
- Max power per m²
- 360 W/m²
- Average power per m²
- 108 W/m²
- Thermal load
- 307 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP50
- IP rating (rear)
- IP50
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 60950-1, IEC 62368, EMC Class A
Manufacturer details
- Usage
- indoor
- Features
- hdr10,hdr10+,vxt
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Cabinet variant
- IS059C-X
- Weight published
- 7.9±5%
- Color temperature
- 6500K±500K
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH059ISCAXC
- Modules per cabinet
- 2 × 1
- Pixel configuration
- SMD 3-in-1 (SMD1921)
- Brightness published
- 2,000 nit
- Installation options
- flat,convex,concave,inner-l,hanging,stacking
All variations in the ISC series
All Samsung cabinets →Every Samsung ISC series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IS039C-L3.9 mm500×500 mm2,000 nits
- Samsung IS039C-X3.9 mm500×500 mm2,000 nits
- Samsung IS039C-Y3.9 mm500×1000 mm2,000 nits
- Samsung IS059C-L5.9 mm500×500 mm2,000 nits
- IS059C-Xthis model5.9 mm500×500 mm2,000 nits
- Samsung IS059C-Y5.9 mm500×1000 mm2,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 7,056 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
36,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
36,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
19,982cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
18,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
9,200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
9,200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IS059C-X in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IS059C-X draw?
- Each Samsung IS059C-X cabinet draws up to 90 W at full white and about 27 W with typical content — 360 W/m² max. A 10-cabinet wall therefore needs up to 900 W plus headroom.
- What is the resolution of the Samsung IS059C-X?
- One cabinet is 84 × 84 pixels at a 5.9 mm pixel pitch (28,224 px/m²). About 46 cabinets side by side reach 4K width (≈ 23.00 m).
- How heavy is a Samsung IS059C-X wall?
- A single cabinet weighs 7.9 kg (31.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 119 kg before mounting structure.
- Is the Samsung IS059C-X suitable for outdoor use?
- No — the Samsung IS059C-X is an indoor cabinet (IP50 front). Its 2,000 nits suit controlled lighting, not direct sun.
