Planar DLSlim 1.5M05 specs

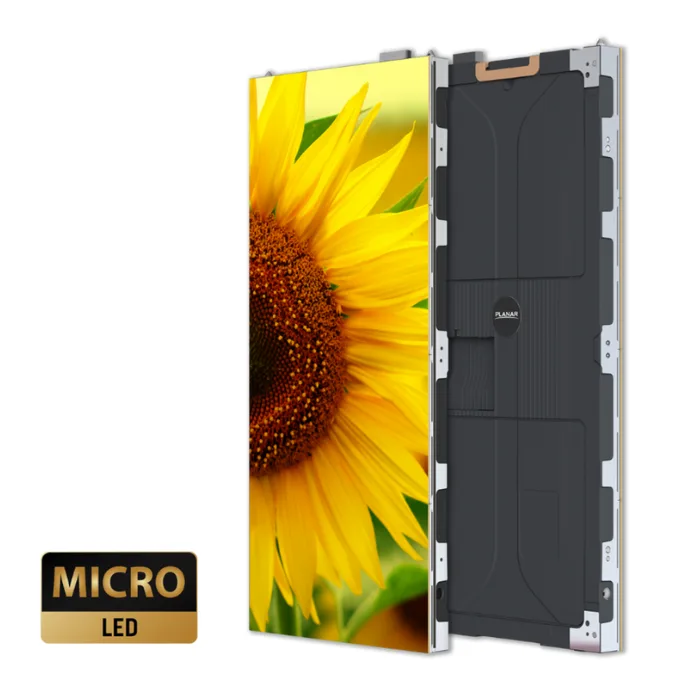

Planar® DirectLight® Slim Series indoor fine pixel pitch MicroLED displays deliver vivid visualization in an ultra-thin, narrow width form factor that facilitates a variety of deployment applications.
Physical
- Pixel pitch
- 1.575 mm
- Cabinet size (W×H×D)
- 302 × 680 × 34 mm
- Weight
- 6.9 kg
- Weight per m²
- 33.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 192 × 432 px (4:9)
- Pixel density
- 403,124 px/m²
- Brightness (calibrated)
- 500 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 10,000:1
- Viewing angle (H/V)
- 170° / 170°
- LED type
- COB
Power & thermal
- Max power
- 68 W
- Average power
- 23 W
- Max power per m²
- 330 W/m²
- Average power per m²
- 112 W/m²
- Thermal load
- 232 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- NRTL UL 60950-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN55024, WEEE, CISPR 32/2015
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Power supply
- Remote Power Supply (RPS)
- Color temperature
- 3000-10000 adjustable
- Module dimensions
- 302.4 x 170.1mm
- Module resolution
- 192x108
- Brightness variant
- M05 (MicroLED, 500-nit low-power)
- Module composition
- 1x4
- Pixel configuration
- MicroLED FlipChip
All variations in the DirectLight Slim series
All Planar cabinets →Every Planar DirectLight Slim series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar DLSlim 0.9M050.945 mm302×680 mm500 nits
- Planar DLSlim 0.9M200.945 mm302×680 mm2,000 nits
- Planar DLSlim 1.2M051.26 mm302×680 mm500 nits
- Planar DLSlim 1.2M201.26 mm302×680 mm2,000 nits
- DLSlim 1.5M05this model1.575 mm302×680 mm500 nits
- Planar DLSlim 1.5M201.575 mm302×680 mm2,000 nits
- Planar DLSlim 1.8M051.89 mm302×680 mm500 nits
- Planar DLSlim 1.8M201.89 mm302×680 mm2,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,699cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar DLSlim 1.5M05 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar DLSlim 1.5M05 draw?
- Each Planar DLSlim 1.5M05 cabinet draws up to 68 W at full white and about 23 W with typical content — 330 W/m² max. A 10-cabinet wall therefore needs up to 680 W plus headroom.
- What is the resolution of the Planar DLSlim 1.5M05?
- One cabinet is 192 × 432 pixels at a 1.575 mm pixel pitch (403,124 px/m²). About 20 cabinets side by side reach 4K width (≈ 6.05 m).
- How heavy is a Planar DLSlim 1.5M05 wall?
- A single cabinet weighs 6.9 kg (33.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 104 kg before mounting structure.
- Is the Planar DLSlim 1.5M05 suitable for outdoor use?
- No — the Planar DLSlim 1.5M05 is an indoor cabinet. Its 500 nits suit controlled lighting, not direct sun.
