1.56 mm pitchIndoorSMD

INFiLED IRWP1.5 Wrap Lite specs

The LED display engineered to wrap panoramic control room and command center environments — seamlessly, precisely, permanently.

Pitch
1.25 mm1.56 mm1.87 mm2.34 mm2.5 mm3.12 mm
Size
300×338 mm
Nits
800 nits1,000 nits1,200 nits
Open in calculatorCompareControllersRunning costDatasheet

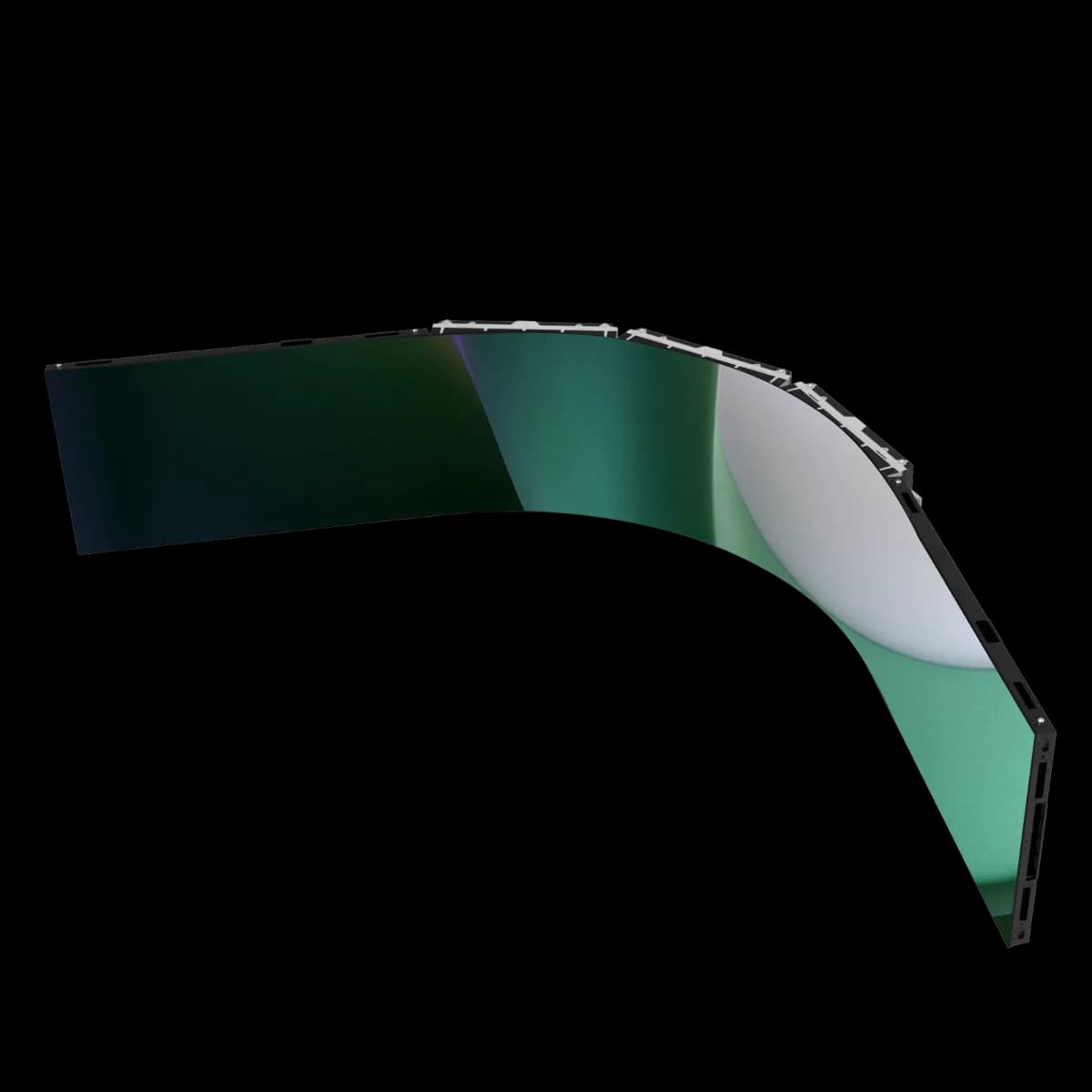

INFiLED IRWP1.5 Wrap Lite LED cabinet

Physical

Pixel pitch
1.56 mm
Cabinet size (W×H×D)
300 × 338 × 30 mm
Weight
3.1 kg
Weight per m²
30.6 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
192 × 216 px (8:9)
Pixel density
409,600 px/m²
Brightness (calibrated)
800 nits
Refresh rate
3,840 Hz
Contrast
5,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
75 W
Average power
25 W
Max power per m²
741 W/m²
Average power per m²
247 W/m²
Thermal load
256 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, CB, RoHS, REACH, WEEE

Manufacturer details

Driver ic
ICND2055
Scan rate
1/27
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/wp-wrap_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI, RJ45
Transparency
0%
Site category
Fixed Installation
Display colors
4.4T
Frame rates hz
50-60HZ
Led wavelength
R:622-629nm/G:520-531nm/B:471-480nm
Receiving card
Novastar
Pitch published
1,56mm
Power published
75 / 25 W/panel (max / avg)
Cabinet material
Die-cast Aluminum
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
409.600pixels/㎡
Weight published
3,1kg (6,83lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
300x168,8mm
Module resolution
192x108pixels
Contrast published
5000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
800nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front

All variations in the WP Wrap series

All INFiLED cabinets →

Every INFiLED WP Wrap series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 41,472 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRWP1.5 Wrap Lite in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRWP1.5 Wrap Lite draw?
Each INFiLED IRWP1.5 Wrap Lite cabinet draws up to 75 W at full white and about 25 W with typical content — 741 W/m² max. A 10-cabinet wall therefore needs up to 750 W plus headroom.
What is the resolution of the INFiLED IRWP1.5 Wrap Lite?
One cabinet is 192 × 216 pixels at a 1.56 mm pixel pitch (409,600 px/m²). About 20 cabinets side by side reach 4K width (≈ 6.00 m).
How heavy is a INFiLED IRWP1.5 Wrap Lite wall?
A single cabinet weighs 3.1 kg (30.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 47 kg before mounting structure.
Is the INFiLED IRWP1.5 Wrap Lite suitable for outdoor use?
No — the INFiLED IRWP1.5 Wrap Lite is an indoor cabinet (IP30 front). Its 800 nits suit controlled lighting, not direct sun.
