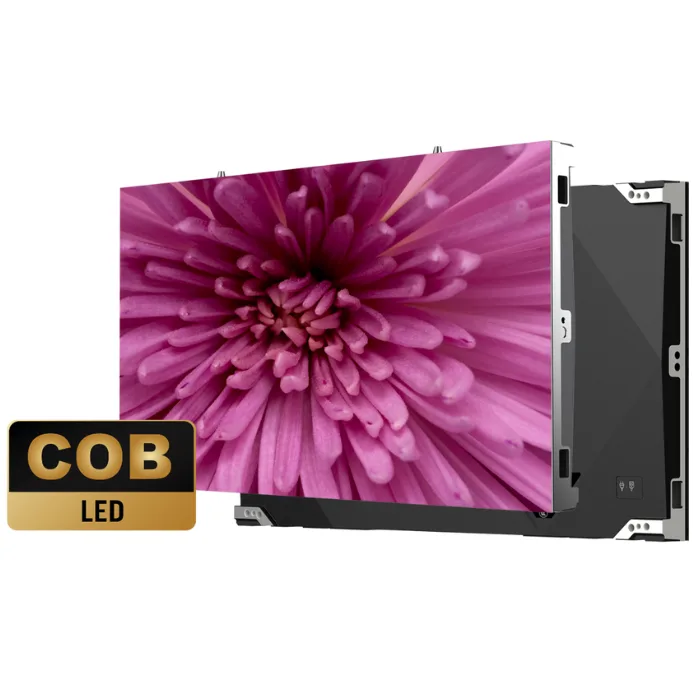

Planar DL Essential 0.9 specs
The Planar® DirectLight® Essential Series is a line of LED video walls with a fine pixel pitch that delivers incredible visual performance for budget-conscious indoor applications. Designed with COB (Chip-on-Board) technology, these displays have a higher pixel density and are more durable than traditional LED designs. The result is an exceptional viewing experience with enhanced brightness, deeper blacks, and a high contrast ratio—ideal for high-traffic indoor spaces with ample ambient light.
Physical
- Pixel pitch
- 0.93 mm
- Cabinet size (W×H×D)
- 600 × 338 × 40 mm
- Weight
- 4.4 kg
- Weight per m²
- 21.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 640 × 360 px (16:9)
- Pixel density
- 1,137,778 px/m²
- Brightness (calibrated)
- 1,500 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 30,000:1
- Viewing angle (H/V)
- 170° / 150°
- LED type
- COB
Power & thermal
- Max power
- 120 W
- Average power
- 26 W
- Max power per m²
- 593 W/m²
- Average power per m²
- 127 W/m²
- Thermal load
- 410 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Part number
- 998-4172-00
- Power supply
- Single
- Color temperature
- 3000-10000K adjustable
- Module dimensions
- 150 x 168.75mm
- Module resolution
- 160x180
- Module composition
- 4x2
- Pixel configuration
- COB (Chip-on-Board)
All variations in the DirectLight Essential series
All Planar cabinets →Every Planar DirectLight Essential series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar DL Essential 0.70.78 mm600×338 mm1,500 nits
- DL Essential 0.9this model0.93 mm600×338 mm1,500 nits
- Planar DL Essential 1.21.25 mm600×338 mm1,000 nits
- Planar DL Essential 1.51.56 mm600×338 mm700 nits
Controllers that drive this panel
All controllers →Each cabinet carries 230,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
611cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar DL Essential 0.9 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar DL Essential 0.9 draw?
- Each Planar DL Essential 0.9 cabinet draws up to 120 W at full white and about 26 W with typical content — 593 W/m² max. A 10-cabinet wall therefore needs up to 1,201 W plus headroom.
- What is the resolution of the Planar DL Essential 0.9?
- One cabinet is 640 × 360 pixels at a 0.93 mm pixel pitch (1,137,778 px/m²). About 6 cabinets side by side reach 4K width (≈ 3.60 m).
- How heavy is a Planar DL Essential 0.9 wall?
- A single cabinet weighs 4.4 kg (21.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 66 kg before mounting structure.
- Is the Planar DL Essential 0.9 suitable for outdoor use?
- No — the Planar DL Essential 0.9 is an indoor cabinet. Its 1,500 nits suit controlled lighting, not direct sun.
