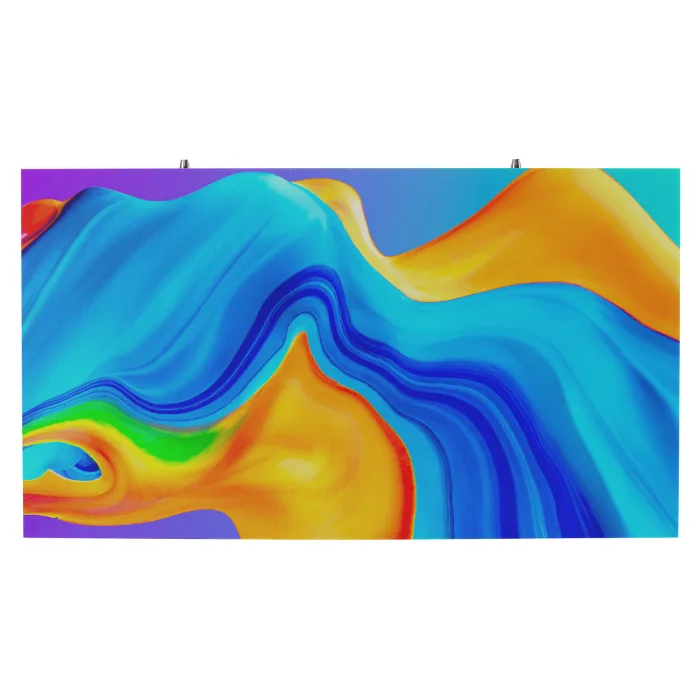

Leyard MG2-2.5 specs
The Leyard® MG-2 Series is a line of indoor fine pixel pitch LED displays with Surface Mounted Device (SMD) technology designed for entry-level, versatile installations with long-term reliability.
Physical
- Pixel pitch
- 2.5 mm
- Cabinet size (W×H×D)
- 600 × 338 × 45 mm
- Weight
- 4.5 kg
- Weight per m²
- 22.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 240 × 135 px (16:9)
- Pixel density
- 160,000 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
Power & thermal
- Max power
- 70 W
- Average power
- 16 W
- Max power per m²
- 346 W/m²
- Average power per m²
- 77 W/m²
- Thermal load
- 239 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Frame rates hz
- 50 & 60
- Color temperature
- 3000-10000K adjustable
- Module dimensions
- 300 x 337.5mm
- Module resolution
- 120x135
- Module composition
- 2x1
- Pixel configuration
- SMD-TOP
All variations in the MG-2 series
All Leyard cabinets →Every Leyard MG-2 series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard MG2-1.51.5625 mm600×338 mm600 nits
- Leyard MG2-1.81.875 mm600×338 mm600 nits
- MG2-2.5this model2.5 mm600×338 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
8,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
8,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,351cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
4,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
2,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
2,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard MG2-2.5 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard MG2-2.5 draw?
- Each Leyard MG2-2.5 cabinet draws up to 70 W at full white and about 16 W with typical content — 346 W/m² max. A 10-cabinet wall therefore needs up to 701 W plus headroom.
- What is the resolution of the Leyard MG2-2.5?
- One cabinet is 240 × 135 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 16 cabinets side by side reach 4K width (≈ 9.60 m).
- How heavy is a Leyard MG2-2.5 wall?
- A single cabinet weighs 4.5 kg (22.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 68 kg before mounting structure.
- Is the Leyard MG2-2.5 suitable for outdoor use?
- No — the Leyard MG2-2.5 is an indoor cabinet. Its 600 nits suit controlled lighting, not direct sun.
