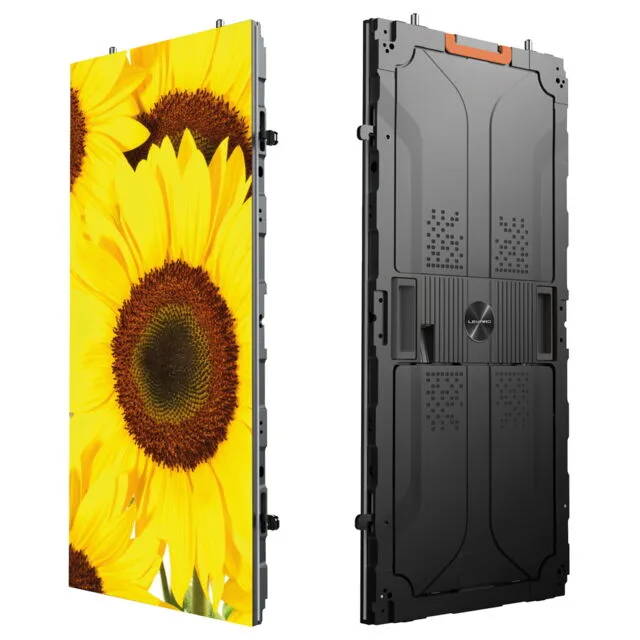

Leyard AT18 specs
Ultra-thin and optimised for mission critical application. Leyard AT is a new series of fine pitch Direct View LED Video Wall System optimised for mission critical applications, where continuous, stable and reliable operations are required as well as an uncompromised image quality compatible with the latest HDR and 4K standards.
Physical
- Pixel pitch
- 1.89 mm
- Cabinet size (W×H×D)
- 302 × 680 × 30 mm
- Weight
- 5.6 kg
- Weight per m²
- 27 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 160 × 360 px (4:9)
- Pixel density
- 279,947 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 7,000:1
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
Power & thermal
- Max power
- 130 W
- Average power
- 43 W
- Max power per m²
- 632 W/m²
- Average power per m²
- 209 W/m²
- Thermal load
- 444 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, FCC, CB, cTUVus, CCC
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Power supply
- Planar RPS (hot-swappable n+1 redundant)
- Frame rates hz
- 50/60
- Power published
- 130 W/cabinet
- Color temperature
- 3000-10000 K adjustable
- Module dimensions
- 302.4x170.1 mm
- Module resolution
- 160x90
- Refresh published
- 3000/3840 Hz
- Module composition
- 1x4
- Pixel configuration
- SMD
All variations in the AT Series
All Leyard cabinets →Every Leyard AT Series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard AT090.945 mm302×680 mm600 nits
- Leyard AT121.26 mm302×680 mm600 nits
- Leyard AT151.575 mm302×680 mm600 nits
- AT18this model1.89 mm302×680 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 57,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
4,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
4,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,447cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard AT18 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard AT18 draw?
- Each Leyard AT18 cabinet draws up to 130 W at full white and about 43 W with typical content — 632 W/m² max. A 10-cabinet wall therefore needs up to 1,300 W plus headroom.
- What is the resolution of the Leyard AT18?
- One cabinet is 160 × 360 pixels at a 1.89 mm pixel pitch (279,947 px/m²). About 24 cabinets side by side reach 4K width (≈ 7.26 m).
- How heavy is a Leyard AT18 wall?
- A single cabinet weighs 5.6 kg (27 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 83 kg before mounting structure.
- Is the Leyard AT18 suitable for outdoor use?
- No — the Leyard AT18 is an indoor cabinet. Its 600 nits suit controlled lighting, not direct sun.
