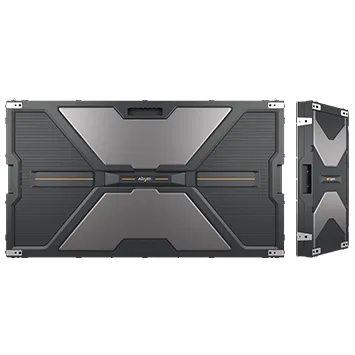

Absen NX1.8 specs
The NX series adopts a 16:9 golden ratio design to improve viewing comfort, and has a variety of pixel pitches to provide customers with more high-definition options.
Physical
- Pixel pitch
- 1.87 mm
- Cabinet size (W×H×D)
- 240 × 540 × 44 mm
- Weight
- 2.7 kg
- Weight per m²
- 20.8 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 128 × 288 px (4:9)
- Pixel density
- 284,444 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 4,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 55 W
- Average power
- 19 W
- Max power per m²
- 424 W/m²
- Average power per m²
- 147 W/m²
- Thermal load
- 188 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP21
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- FCC, ETL, CE, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • Corporate, mall, chain store, transportation hub, etc • Native 16:9, 27.5". Superior 4K/8K visual experience • 16bits high grayscale and fine image • Front/rear maintenance of module, PSU, receiving card, etc
- Operating humidity
- 10 to 80%
- Pixel configuration
- SMD 3in1 1515
All variations in the NX series
All Absen cabinets →Every Absen NX series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen NX1.51.5 mm240×540 mm800 nits
- Absen NX1.5 XXL1.5 mm960×540 mm800 nits
- NX1.8this model1.87 mm240×540 mm800 nits
- Absen NX1.8 HBR1.87 mm240×540 mm1,500 nits
- Absen NX1.8 XXL1.87 mm960×540 mm800 nits
- Absen NX1.8 XXL HBR1.87 mm960×540 mm1,500 nits
- Absen NX2.52.5 mm240×540 mm800 nits
- Absen NX2.5 HBR2.5 mm240×540 mm1,500 nits
- Absen NX2.5 XXL2.5 mm960×540 mm800 nits
- Absen NX2.5 XXL HBR2.5 mm960×540 mm1,500 nits
- Absen NX3.73.75 mm240×540 mm800 nits
- Absen NX3.7 HBR3.75 mm240×540 mm1,500 nits
- Absen NX3.7 XXL3.75 mm960×540 mm800 nits
- Absen NX3.7 XXL HBR3.75 mm960×540 mm1,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
6,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
6,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,824cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen NX1.8 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen NX1.8 draw?
- Each Absen NX1.8 cabinet draws up to 55 W at full white and about 19 W with typical content — 424 W/m² max. A 10-cabinet wall therefore needs up to 550 W plus headroom.
- What is the resolution of the Absen NX1.8?
- One cabinet is 128 × 288 pixels at a 1.87 mm pixel pitch (284,444 px/m²). About 30 cabinets side by side reach 4K width (≈ 7.20 m).
- How heavy is a Absen NX1.8 wall?
- A single cabinet weighs 2.7 kg (20.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 41 kg before mounting structure.
- Is the Absen NX1.8 suitable for outdoor use?
- No — the Absen NX1.8 is an indoor cabinet (IP40 front). Its 800 nits suit controlled lighting, not direct sun.
