INFiLED ORDF3.9mk2 Lite specs

The load-bearing LED floor engineered for XR, virtual production, and immersive events — 1,500 kg/m² capacity, anti-slip, anti-reflective, and interactive when you want it.

Pitch
2.6 mm3.91 mm
Size
500×500 mm
Nits
800 nits1,000 nits3,000 nits
Open in calculatorCompareControllersRunning costDatasheet

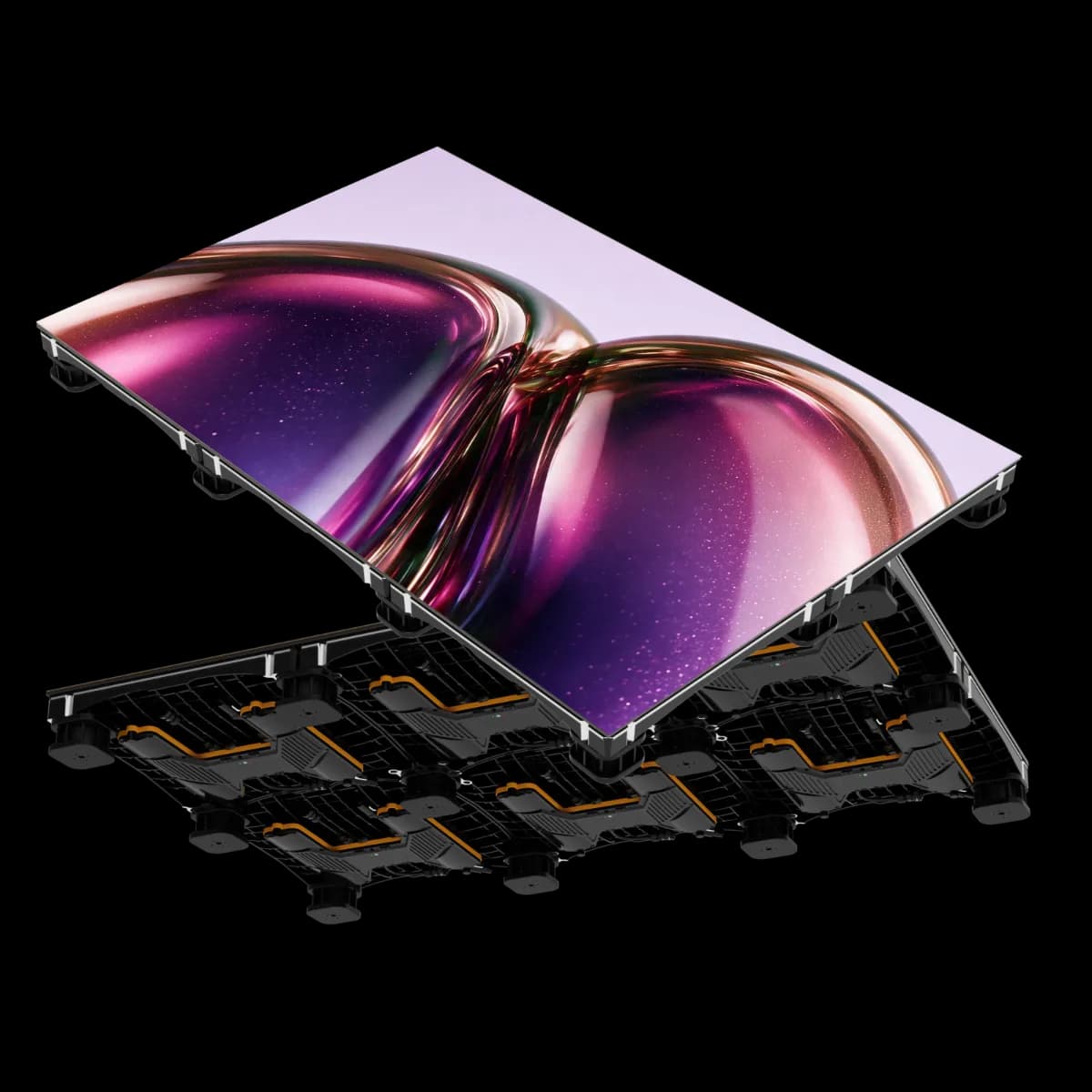

INFiLED ORDF3.9mk2 Lite LED cabinet

Physical

Pixel pitch
3.91 mm
Cabinet size (W×H×D)
500 × 500 × 83 mm
Weight
11.5 kg
Weight per m²
46 kg/m²
Cabinet type
Rental & staging
Service access
Front


Cabinet resolution
128 × 128 px (1:1)
Pixel density
65,536 px/m²
Brightness (calibrated)
3,000 nits
Refresh rate
3,840 Hz
Contrast
12,000:1
Viewing angle (H/V)
120° / 120°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
240 W
Average power
80 W
Max power per m²
960 W/m²
Average power per m²
320 W/m²
Thermal load
819 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH

Manufacturer details

Driver ic
ICND2055S
Scan rate
1/8
Brochure url
https://www.infiled.com/wp-content/uploads/2025/03/dfmk2-series-v3.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Creative
Display colors
4.41T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-530nm/B:465-480nm
Receiving card
Novastar
Pitch published
3,91mm
Power published
240 / 80 W/panel (max / avg)
Cabinet material
Die-cast Aluminum
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
65.536 pixels/㎡
Weight published
11,5kg (25,35lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x250mm
Module resolution
64x64pixels
Contrast published
12000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
3000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front

All variations in the DFmk2 series

All INFiLED cabinets →

Every INFiLED DFmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORDF3.9mk2 Lite in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORDF3.9mk2 Lite draw?
Each INFiLED ORDF3.9mk2 Lite cabinet draws up to 240 W at full white and about 80 W with typical content — 960 W/m² max. A 10-cabinet wall therefore needs up to 2,400 W plus headroom.
What is the resolution of the INFiLED ORDF3.9mk2 Lite?
One cabinet is 128 × 128 pixels at a 3.91 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
How heavy is a INFiLED ORDF3.9mk2 Lite wall?
A single cabinet weighs 11.5 kg (46 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 173 kg before mounting structure.
Is the INFiLED ORDF3.9mk2 Lite suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 3,000 nits of calibrated brightness.
