INFiLED IRX2.9mk2 Pro specs

The patented ±30° curved display for premium installations — seven precise angle positions, ultra-thin cabinets, and fine pitch that holds up close.

Pitch
1.95 mm2.6 mm2.97 mm3.91 mm
Size
500×500 mm
Nits
1,200 nits1,000 nits
Open in calculatorCompareControllersRunning costDatasheet

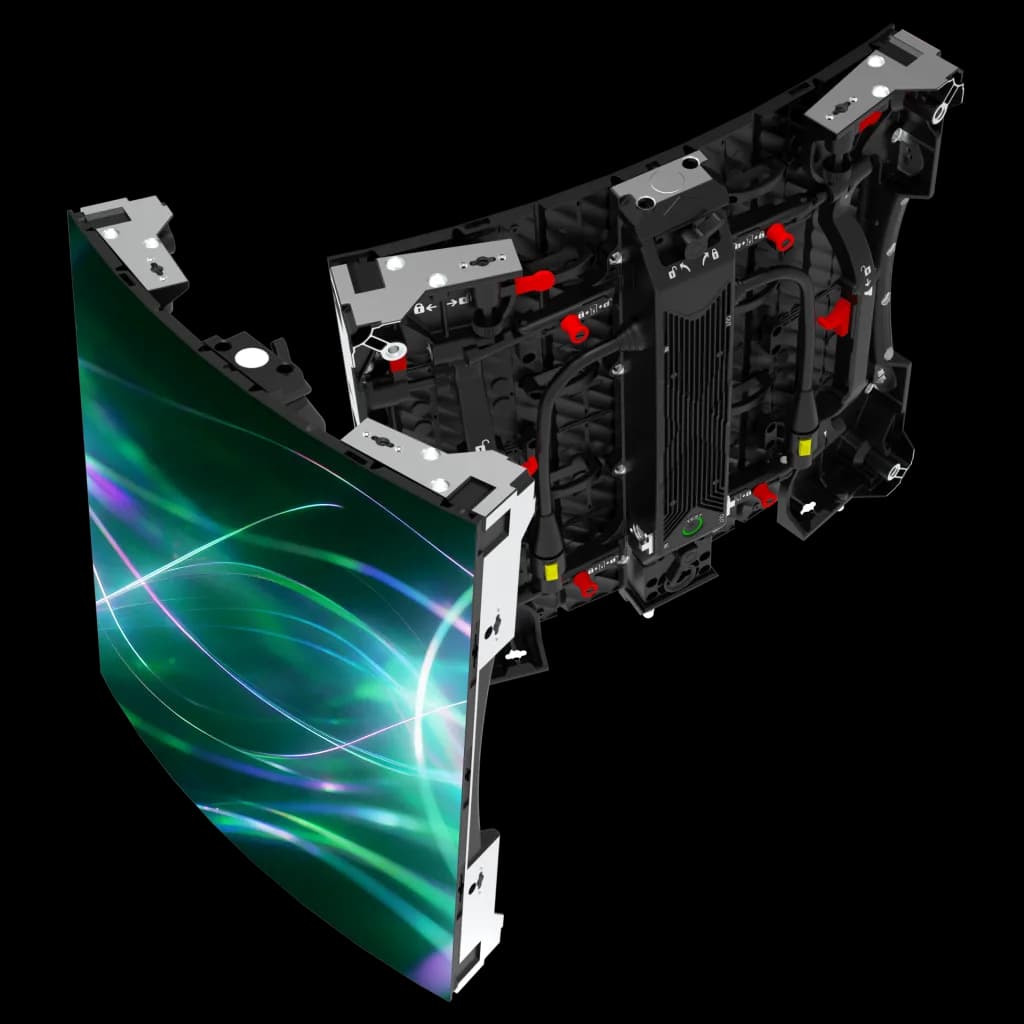

INFiLED IRX2.9mk2 Pro LED cabinet

Physical

Pixel pitch
2.97 mm
Cabinet size (W×H×D)
500 × 500 × 76 mm
Weight
8.3 kg
Weight per m²
33.2 kg/m²
Cabinet type
Rental & staging
Service access
Rear


Cabinet resolution
168 × 168 px (1:1)
Pixel density
112,896 px/m²
Brightness (calibrated)
1,200 nits
Refresh rate
3,840 Hz
Contrast
5,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
150 W
Average power
50 W
Max power per m²
600 W/m²
Average power per m²
200 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH

Manufacturer details

Driver ic
MBI5253C
Scan rate
1/21
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/xii-series_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Rental Staging
Display colors
4.4T
Frame rates hz
50/60Hz
Led wavelength
R:620-625nm/G:510-535nm/B:455-480nm
Receiving card
Novastar
Pitch published
2,97mm
Power published
150 / 50 W/panel (max / avg)
Cabinet material
Aluminum Alloy
Control distance
Ethernetcable≤ 100m or Fiber Optic≤ 15km
Physical density
112.896pixels/㎡
Weight published
8,3kg (18,30lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
500x125mm
Module resolution
168x42pixels
Contrast published
5000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
1200nits
Brightness adjustment
0～100% (256 levels)
Service access published
Rear

All variations in the Xmk2 series

All INFiLED cabinets →

Every INFiLED Xmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 28,224 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRX2.9mk2 Pro in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRX2.9mk2 Pro draw?
Each INFiLED IRX2.9mk2 Pro cabinet draws up to 150 W at full white and about 50 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the INFiLED IRX2.9mk2 Pro?
One cabinet is 168 × 168 pixels at a 2.97 mm pixel pitch (112,896 px/m²). About 23 cabinets side by side reach 4K width (≈ 11.50 m).
How heavy is a INFiLED IRX2.9mk2 Pro wall?
A single cabinet weighs 8.3 kg (33.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 125 kg before mounting structure.
Is the INFiLED IRX2.9mk2 Pro suitable for outdoor use?
No — the INFiLED IRX2.9mk2 Pro is an indoor cabinet (IP30 front). Its 1,200 nits suit controlled lighting, not direct sun.
