INFiLED IRWP2.3 Lite specs

The wallpaper-thin LED display engineered for spaces where thermal control, reliability and architectural integration are critical.

Pitch
1.25 mm1.56 mm1.87 mm2.34 mm2.5 mm3.12 mm
Size
600×338 mm
Nits
1,000 nits800 nits1,200 nits
Open in calculatorCompareControllersRunning costDatasheet

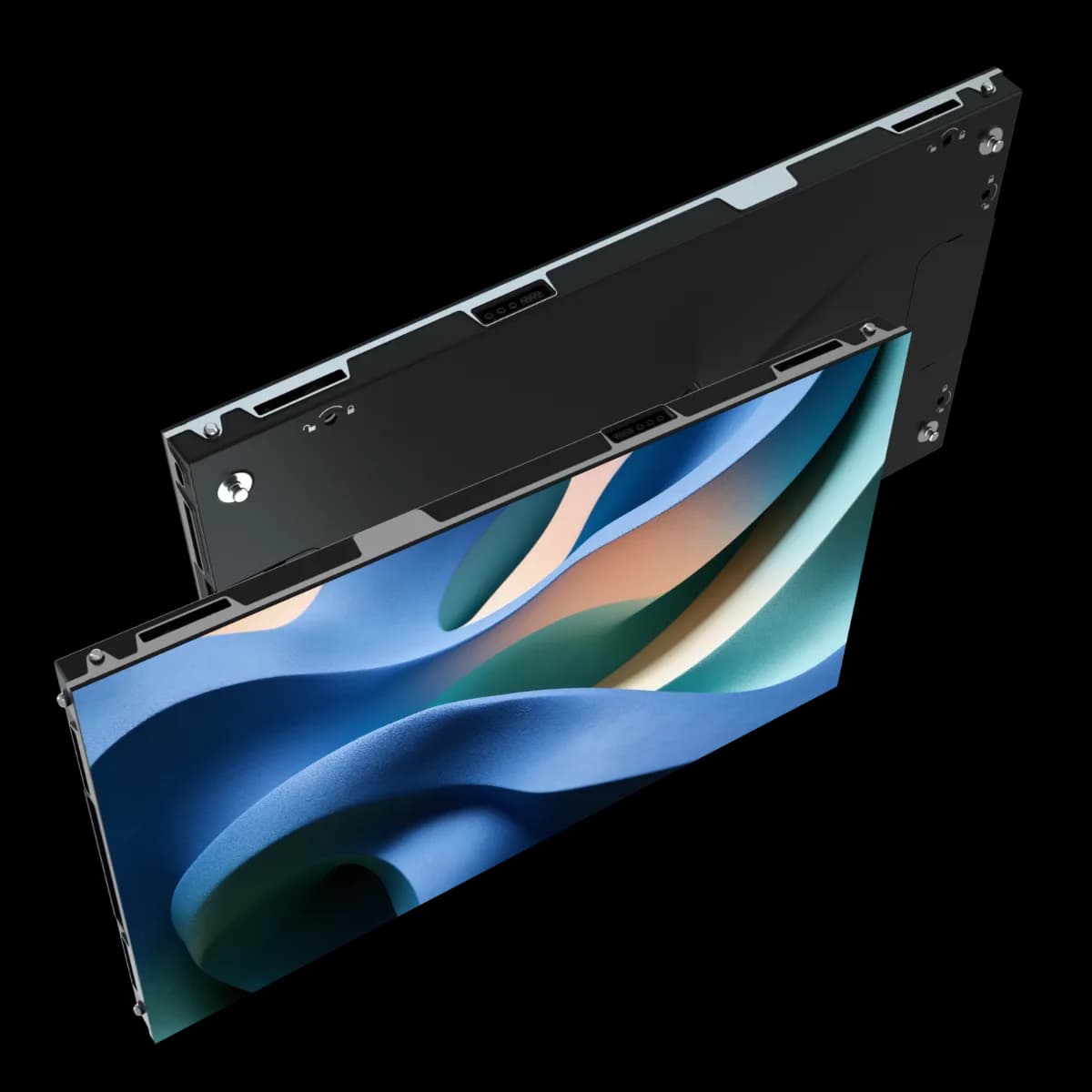

INFiLED IRWP2.3 Lite LED cabinet

Physical

Pixel pitch
2.34 mm
Cabinet size (W×H×D)
600 × 338 × 30 mm
Weight
5.2 kg
Weight per m²
25.7 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
256 × 144 px (16:9)
Pixel density
182,044 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
3,840 Hz
Contrast
5,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
105 W
Average power
35 W
Max power per m²
519 W/m²
Average power per m²
173 W/m²
Thermal load
358 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, CB, RoHS, REACH, WEEE

Manufacturer details

Driver ic
ICND2055
Scan rate
1/24
Brochure url
https://www.infiled.com/wp-content/uploads/2023/10/aaff_brochure_wp2025-1.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI, RJ45
Transparency
0%
Site category
Fixed Installation
Display colors
4.4T
Frame rates hz
50-60HZ
Led wavelength
R:622-629nm/G:520-531nm/B:471-480nm
Receiving card
Novastar
Pitch published
2,34mm
Power published
105 / 35 W/panel (max / avg)
Cabinet material
Die-cast Aluminum
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
182.044pixels/㎡
Weight published
5,2kg (11,46lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
300x168,8mm
Module resolution
128x72pixels
Contrast published
5000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
1000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front

All variations in the WP series

All INFiLED cabinets →

Every INFiLED WP series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRWP2.3 Lite in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRWP2.3 Lite draw?
Each INFiLED IRWP2.3 Lite cabinet draws up to 105 W at full white and about 35 W with typical content — 519 W/m² max. A 10-cabinet wall therefore needs up to 1,050 W plus headroom.
What is the resolution of the INFiLED IRWP2.3 Lite?
One cabinet is 256 × 144 pixels at a 2.34 mm pixel pitch (182,044 px/m²). About 15 cabinets side by side reach 4K width (≈ 9.00 m).
How heavy is a INFiLED IRWP2.3 Lite wall?
A single cabinet weighs 5.2 kg (25.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 78 kg before mounting structure.
Is the INFiLED IRWP2.3 Lite suitable for outdoor use?
No — the INFiLED IRWP2.3 Lite is an indoor cabinet (IP30 front). Its 1,000 nits suit controlled lighting, not direct sun.
