INFiLED IREZ2.6mk2 Lite specs

The featherweight indoor rental display — 5.9 kg magnesium cabinets, quick-lock assembly, and camera-ready fine pitch for exhibitions, conferences, and creative events.

Pitch
1.56 mm1.95 mm2.6 mm
Size
500×500 mm
Nits
1,200 nits1,000 nits
Open in calculatorCompareControllersRunning costDatasheet

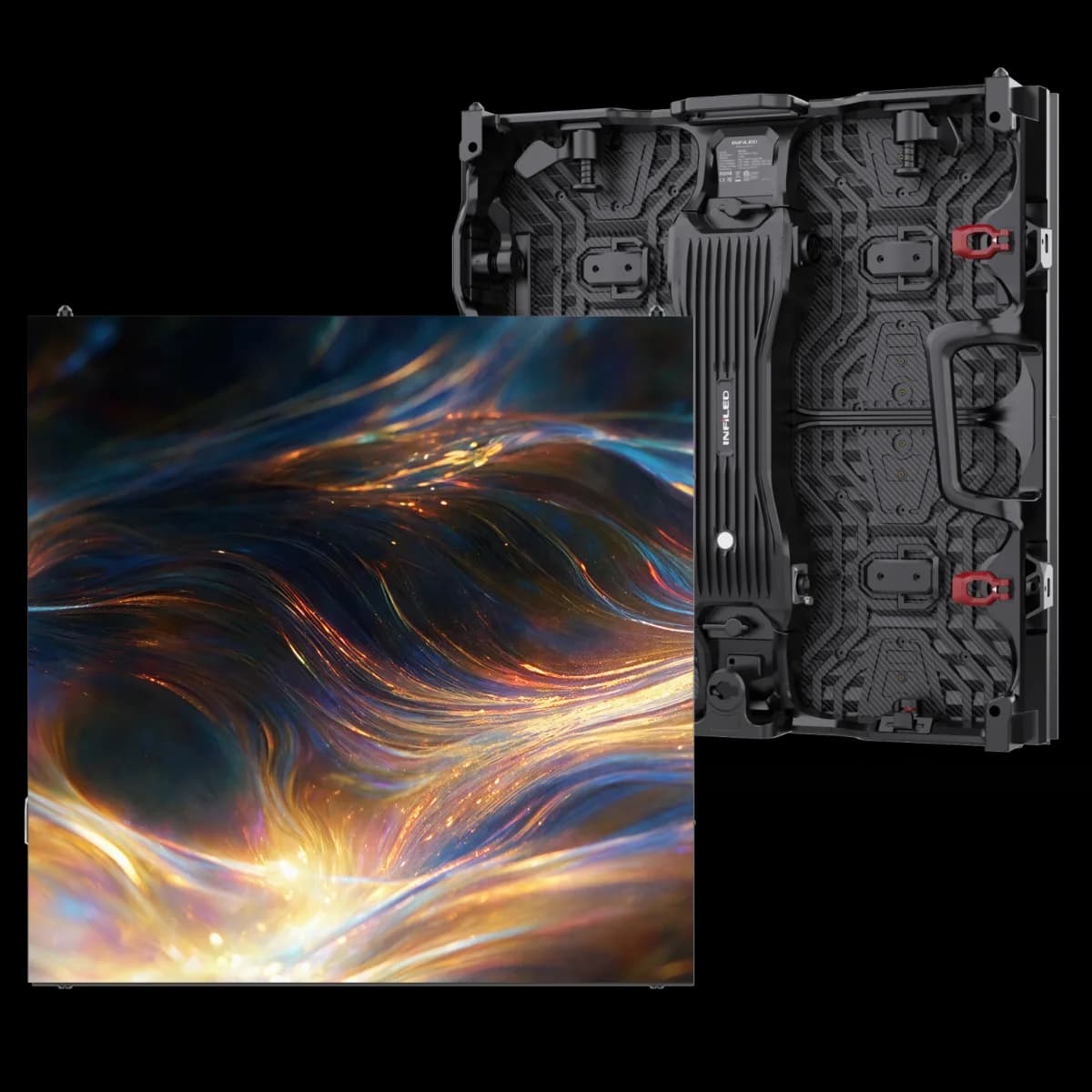

INFiLED IREZ2.6mk2 Lite LED cabinet

Physical

Pixel pitch
2.6 mm
Cabinet size (W×H×D)
500 × 500 × 76 mm
Weight
5.9 kg
Weight per m²
23.6 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
192 × 192 px (1:1)
Pixel density
147,456 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
7,680 Hz
Contrast
5,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
13 bit

Power & thermal

Max power
150 W
Average power
50 W
Max power per m²
600 W/m²
Average power per m²
200 W/m²
Thermal load
512 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, RoHS, ETL, Fireproof

Manufacturer details

Driver ic
PWM driver
Scan rate
1/24
Brochure url
https://www.infiled.com/wp-content/uploads/2025/06/brochure_ezmk2_2025.pdf
Control mode
Synchronous display
Power supply
100-240V AC 50-60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
Rental Staging
Display colors
0.55T
Frame rates hz
50/60Hz
Led wavelength
R: 622-629nm / G: 520-531nm / B: 471-480nm
Receiving card
Novastar
Pitch published
2,6mm
Power published
150 / 50 W/panel (max / avg)
Cabinet material
Magnesium Alloy
Control distance
Ethernet cable≤100m or Fiber Optic≤15km
Physical density
147,456 pixels/m2
Weight published
5,9kg (13,01lb)
Color temperature
6500K(3000K~10000K adjustable)
Module dimensions
250x250,0mm
Module resolution
96x96pixels
Contrast published
5000:01:00
Lifetime published
≥100000h
Operating humidity
10-90%RH Non-condensing
Grayscale published
13bit
Pixel configuration
3 IN 1 SMD
Brightness published
1000nits
Brightness adjustment
0～100% 256 levels
Service access published
Front and Rear

All variations in the EZmk2 series

All INFiLED cabinets →

Every INFiLED EZmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IREZ2.6mk2 Lite in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IREZ2.6mk2 Lite draw?
Each INFiLED IREZ2.6mk2 Lite cabinet draws up to 150 W at full white and about 50 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
What is the resolution of the INFiLED IREZ2.6mk2 Lite?
One cabinet is 192 × 192 pixels at a 2.6 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
How heavy is a INFiLED IREZ2.6mk2 Lite wall?
A single cabinet weighs 5.9 kg (23.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 89 kg before mounting structure.
Is the INFiLED IREZ2.6mk2 Lite suitable for outdoor use?
No — the INFiLED IREZ2.6mk2 Lite is an indoor cabinet (IP30 front). Its 1,000 nits suit controlled lighting, not direct sun.
