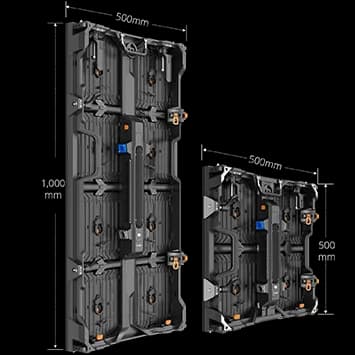

Absen NT2.6 Pro V2 specs
The NT Pro V2 series is a rental LED display designed for corporate events. It is a product that can help you accelerate your return on investment.
Physical
- Pixel pitch
- 2.6 mm
- Cabinet size (W×H×D)
- 500 × 500 × 75 mm
- Weight
- 7.1 kg
- Weight per m²
- 28.4 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 192 × 192 px (1:1)
- Pixel density
- 147,456 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 5,500:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- IMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 150 W
- Average power
- 50 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 200 W/m²
- Thermal load
- 512 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP21
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- BIS, CE, ETL, FCC, UKCA
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum(500x500x75)/ Die-casting magnesium (500x1000x75)
- Short description
- • 4X Greater LED Thrust • IMD 2-in-1 technology • 20% Faster Installation • Vertical and Horizontal Locking Systems • Cinema-Quality Visuals • Anti-Collision Design • Modular Design for Easy Maintenance
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- IMD 2in1
All variations in the Absen Neptune Pro V2 series
All Absen cabinets →Every Absen Absen Neptune Pro V2 series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen NT1.9 Pro V21.95 mm500×500 mm1,000 nits
- NT2.6 Pro V2this model2.6 mm500×500 mm1,000 nits
- Absen NT2.6 Pro V2 L2.6 mm500×1000 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
6,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
6,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,824cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen NT2.6 Pro V2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen NT2.6 Pro V2 draw?
- Each Absen NT2.6 Pro V2 cabinet draws up to 150 W at full white and about 50 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
- What is the resolution of the Absen NT2.6 Pro V2?
- One cabinet is 192 × 192 pixels at a 2.6 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
- How heavy is a Absen NT2.6 Pro V2 wall?
- A single cabinet weighs 7.1 kg (28.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 107 kg before mounting structure.
- Is the Absen NT2.6 Pro V2 suitable for outdoor use?
- No — the Absen NT2.6 Pro V2 is an indoor cabinet (IP40 front). Its 1,000 nits suit controlled lighting, not direct sun.
