INFiLED IRAR4.8mk2 Lite mini specs

The rugged rental platform for events, touring, and XR/VP — smart quick-locks, telescopic alignment, and stacking that goes twenty cabinets high.

Pitch
2.97 mm3.91 mm4.81 mm
Size
500×1000 mm500×500 mm
Nits
1,000 nits5,000 nits4,000 nits
Open in calculatorCompareControllersRunning costDatasheet

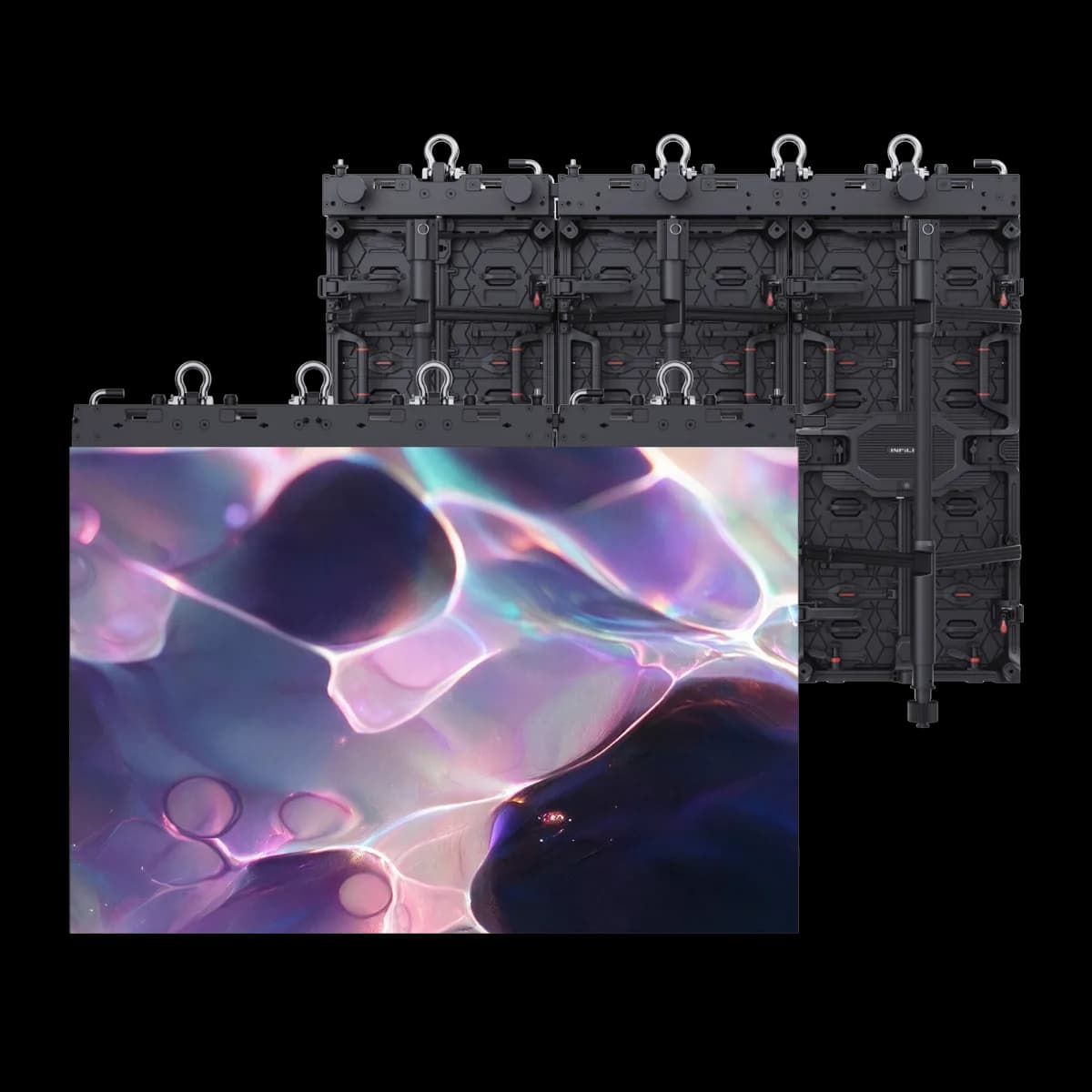

INFiLED IRAR4.8mk2 Lite mini LED cabinet

Physical

Pixel pitch
4.81 mm
Cabinet size (W×H×D)
500 × 500 × 82 mm
Weight
8 kg
Weight per m²
32 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
104 × 104 px (1:1)
Pixel density
43,264 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
3,840 Hz
Contrast
5,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
180 W
Average power
60 W
Max power per m²
720 W/m²
Average power per m²
240 W/m²
Thermal load
614 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC, RoHS, REACH, WEEE, Fireproof

Manufacturer details

Driver ic
ICND2055S
Scan rate
1/13
Brochure url
https://www.infiled.com/wp-content/uploads/2024/04/armk2.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
Rental Staging
Display colors
4.4T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
4,81mm
Power published
180 / 60 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
43.264 pixels/㎡
Weight published
8kg (17,64lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x500mm
Module resolution
52x104pixels
Contrast published
5000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
1000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear

All variations in the ARmk2 series

All INFiLED cabinets →

Every INFiLED ARmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 10,816 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRAR4.8mk2 Lite mini in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRAR4.8mk2 Lite mini draw?
Each INFiLED IRAR4.8mk2 Lite mini cabinet draws up to 180 W at full white and about 60 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 1,800 W plus headroom.
What is the resolution of the INFiLED IRAR4.8mk2 Lite mini?
One cabinet is 104 × 104 pixels at a 4.81 mm pixel pitch (43,264 px/m²). About 37 cabinets side by side reach 4K width (≈ 18.50 m).
How heavy is a INFiLED IRAR4.8mk2 Lite mini wall?
A single cabinet weighs 8 kg (32 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 120 kg before mounting structure.
Is the INFiLED IRAR4.8mk2 Lite mini suitable for outdoor use?
No — the INFiLED IRAR4.8mk2 Lite mini is an indoor cabinet (IP30 front). Its 1,000 nits suit controlled lighting, not direct sun.
