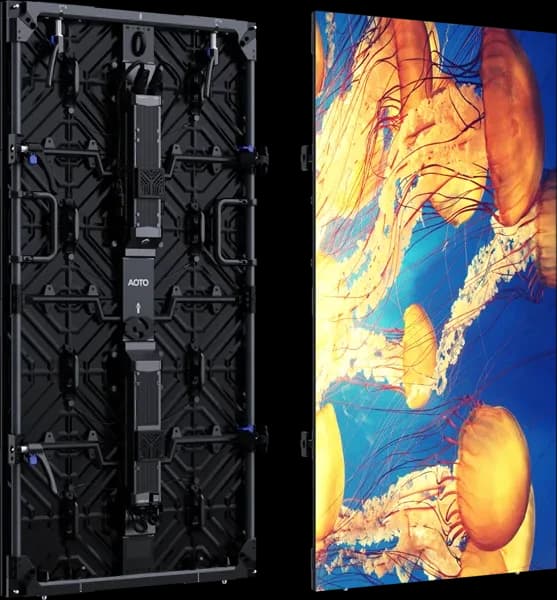

AOTO SW5.7H specs
SW series features big-size panels for the stage and combines high-strength carbon fiber + die-casting aluminum high-strength frame, which makes it very light while ensuring its robustness and durability. The product is also equipped with various mechanical advancements, such as fast lock, Auto-Eject, and ergonomic handles, allowing for speedy installation and convenient maintenance.
Physical
- Pixel pitch
- 5.76923 mm
- Cabinet size (W×H×D)
- 600 × 600 × 90 mm
- Weight
- 8 kg
- Weight per m²
- 22.2 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 104 × 104 px (1:1)
- Pixel density
- 30,044 px/m²
- Brightness (calibrated)
- 6,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 6,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
Power & thermal
- Max power
- 170 W
- Average power
- 60 W
- Max power per m²
- 472 W/m²
- Average power per m²
- 167 W/m²
- Thermal load
- 580 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- Operating temperature
- -20 to 50 °C
Manufacturer details
- Curve range
- -7.5° to +7.5° in 2.5° steps
- Power supply
- 100-240V 50/60Hz
- Site category
- Rental Staging
- Cabinet variant
- half-height 600×600
- Pitch published
- 5.7 mm
- Cabinet material
- carbon-fibre magnesium alloy, black
- Weight published
- ≤8 kg
- Operating humidity
- 10-90% RH
- Pixel configuration
- SMD 1R1G1B
- Brightness published
- ≥6,000 nits
All variations in the SW series
All AOTO cabinets →Every AOTO SW series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO SW3.73.75 mm600×1200 mm4,500 nits
- AOTO SW3.7H3.75 mm600×600 mm4,500 nits
- AOTO SW5.75.76923 mm600×1200 mm6,000 nits
- SW5.7Hthis model5.76923 mm600×600 mm6,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 10,816 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
24,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
24,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
13,036cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
12,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
6,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
6,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO SW5.7H in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO SW5.7H draw?
- Each AOTO SW5.7H cabinet draws up to 170 W at full white and about 60 W with typical content — 472 W/m² max. A 10-cabinet wall therefore needs up to 1,700 W plus headroom.
- What is the resolution of the AOTO SW5.7H?
- One cabinet is 104 × 104 pixels at a 5.76923 mm pixel pitch (30,044 px/m²). About 37 cabinets side by side reach 4K width (≈ 22.20 m).
- How heavy is a AOTO SW5.7H wall?
- A single cabinet weighs 8 kg (22.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 120 kg before mounting structure.
- Is the AOTO SW5.7H suitable for outdoor use?
- Yes — it is rated for outdoor use and 6,000 nits of calibrated brightness.
