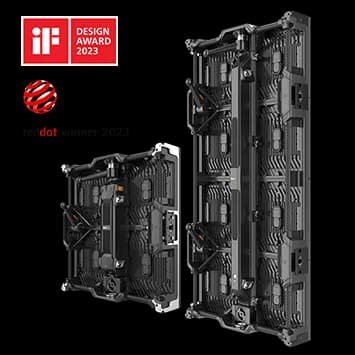

Absen PR3.9 L specs
The PR series is developed as a professional platform of products for virtual production LED wall solutions. With two sizes and pixel pitches ranging from 1.5 to 5.2 mm, it satisfies the needs of any virtual production.
Physical
- Pixel pitch
- 3.9 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 93 mm
- Weight
- 13.5 kg
- Weight per m²
- 27 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 128 × 256 px (1:2)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 6,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 10,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 300 W
- Average power
- 100 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 200 W/m²
- Thermal load
- 1,024 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- 10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Carbon fiber + Die-casting aluminum (500x500mm) Carbon fiber + Die casting magnesium(500x1000mm)
- Short description
- • Panel dimension: 500(W)500(H)mm, 500(W)1000(H)mm • The PR series provides a new connection solution with a curve block that can be customized at any angle between 0 and 7.5 degrees, allowing for more flexibility in building curved screens.
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- SMD 3in1 1921
All variations in the Pixel Reality series
All Absen cabinets →Every Absen Pixel Reality series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen PR1.91.95 mm500×500 mm1,500 nits
- Absen PR2.52.5 mm500×500 mm1,500 nits
- Absen PR2.5 L2.5 mm500×1000 mm1,500 nits
- Absen PR3.93.9 mm500×500 mm6,000 nits
- PR3.9 Lthis model3.9 mm500×1000 mm6,000 nits
- Absen PR5.25.2 mm500×500 mm6,000 nits
- Absen PR5.2 L5.2 mm500×1000 mm6,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
7,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
7,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,302cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen PR3.9 L in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen PR3.9 L draw?
- Each Absen PR3.9 L cabinet draws up to 300 W at full white and about 100 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.
- What is the resolution of the Absen PR3.9 L?
- One cabinet is 128 × 256 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a Absen PR3.9 L wall?
- A single cabinet weighs 13.5 kg (27 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 203 kg before mounting structure.
- Is the Absen PR3.9 L suitable for outdoor use?
- No — the Absen PR3.9 L is an indoor cabinet (IP65 front). Its 6,000 nits suit controlled lighting, not direct sun.
