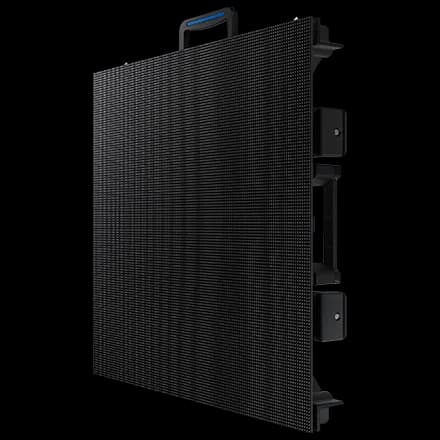

Samsung XRB039-X specs
The XRB series is the outdoor display optimized for impactful delivery of information at a close distance. Featuring 5000 nit brightness, the XRB series is clearly visible even in direct sunlight, providing flawless content when viewed. Compact design allows you to install with ease, so the display can be up and running quickly.
Physical
- Pixel pitch
- 3.9 mm
- Cabinet size (W×H×D)
- 500 × 500 × 65 mm
- Weight
- 7.8 kg
- Weight per m²
- 31.2 kg/m²
- Cabinet type
- Rental & staging
- Cabinet resolution
- 128 × 128 px (1:1)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 5,000 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 4,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
Power & thermal
- Max power
- 190 W
- Average power
- 65 W
- Max power per m²
- 760 W/m²
- Average power per m²
- 260 W/m²
- Thermal load
- 648 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -30 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 60950-1, IEC 62368, EMC Class A
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Cabinet variant
- XRB3.9-X
- Weight published
- 7.8±5%
- Color temperature
- 6500K±500K
- Contrast published
- 4,000:1
- Operating humidity
- 10 ~ 90%
- Samsung model code
- LH039XRBCXC
- Modules per cabinet
- 2 × 1
- Pixel configuration
- SMD 3-in-1 (SMD1921)
- Brightness published
- >5,000 nit
All variations in the XRB series
All Samsung cabinets →Every Samsung XRB series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung XRB029-L2.9 mm500×500 mm5,000 nits
- Samsung XRB029-R2.9 mm500×500 mm5,000 nits
- Samsung XRB029-S2.9 mm500×1000 mm5,000 nits
- Samsung XRB029-X2.9 mm500×500 mm5,000 nits
- Samsung XRB029-Y2.9 mm500×1000 mm5,000 nits
- Samsung XRB039-L3.9 mm500×500 mm5,000 nits
- Samsung XRB039-R3.9 mm500×500 mm5,000 nits
- Samsung XRB039-S3.9 mm500×1000 mm5,000 nits
- XRB039-Xthis model3.9 mm500×500 mm5,000 nits
- Samsung XRB039-Y3.9 mm500×1000 mm5,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
15,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
15,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
8,605cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
7,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
3,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
3,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XRB039-X in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung XRB039-X draw?
- Each Samsung XRB039-X cabinet draws up to 190 W at full white and about 65 W with typical content — 760 W/m² max. A 10-cabinet wall therefore needs up to 1,900 W plus headroom.
- What is the resolution of the Samsung XRB039-X?
- One cabinet is 128 × 128 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a Samsung XRB039-X wall?
- A single cabinet weighs 7.8 kg (31.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 117 kg before mounting structure.
- Is the Samsung XRB039-X suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
