Samsung XHB100-L LTYPE-43 specs

Exceptionally clear and stunning picture quality, even in the sun. Improved energy efficiency enables sustainable operations for your business. Reliable performance even in the toughest environments. Easy and flexible installation in any configuration.

Pitch
8.21 mm10.78 mm
Size
345×690 mm345×1035 mm690×690 mm690×1035 mm
Nits
10,000 nits
Open in calculatorCompareControllersRunning cost

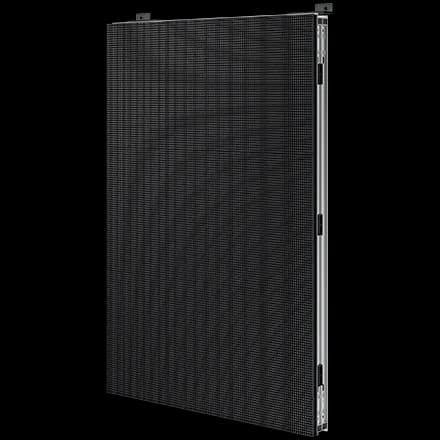

Samsung XHB100-L LTYPE-43 LED cabinet

Physical

Pixel pitch
10.78 mm
Cabinet size (W×H×D)
690 × 1,035 × 690 mm
Weight
42.7 kg
Weight per m²
59.8 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
64 × 96 px (2:3)
Pixel density
8,603 px/m²
Brightness (calibrated)
10,000 nits
Refresh rate
7,680 Hz
Contrast
8,000:1
Viewing angle (H/V)
160° / 128°
LED type
SMD

Power & thermal

Max power
1,200 W
Average power
400 W
Max power per m²
1,680 W/m²
Average power per m²
560 W/m²
Thermal load
4,094 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP66
IP rating (rear)
IP66
Operating temperature
-40 to 55 °C
LED lifetime
100,000 h
Certifications
UL48, EMC Class A

Manufacturer details

Power supply
100 to 240
Frame rates hz
50 / 60
Cabinet variant
LTYPE-43
Weight published
42.7 Kg
Color temperature
6,500K
Contrast published
8,000:1
Operating humidity
5 ~ 95%
Samsung model code
LH100XHBTLL
Modules per cabinet
2x3 + 2x3
Pixel configuration
SMD 3-in-1 2727 (XDC)
Brightness published
10,000 nit

All variations in the XHB-L series

All Samsung cabinets →

Every Samsung XHB-L series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 6,144 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XHB100-L LTYPE-43 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Samsung XHB100-L LTYPE-43 draw?
Each Samsung XHB100-L LTYPE-43 cabinet draws up to 1,200 W at full white and about 400 W with typical content — 1,680 W/m² max. A 10-cabinet wall therefore needs up to 12,000 W plus headroom.
What is the resolution of the Samsung XHB100-L LTYPE-43?
One cabinet is 64 × 96 pixels at a 10.78 mm pixel pitch (8,603 px/m²). About 60 cabinets side by side reach 4K width (≈ 41.40 m).
How heavy is a Samsung XHB100-L LTYPE-43 wall?
A single cabinet weighs 42.7 kg (59.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 641 kg before mounting structure.
Is the Samsung XHB100-L LTYPE-43 suitable for outdoor use?
Yes — it is rated for outdoor use with IP66 front ingress protection and 10,000 nits of calibrated brightness.
